Installation Procedure

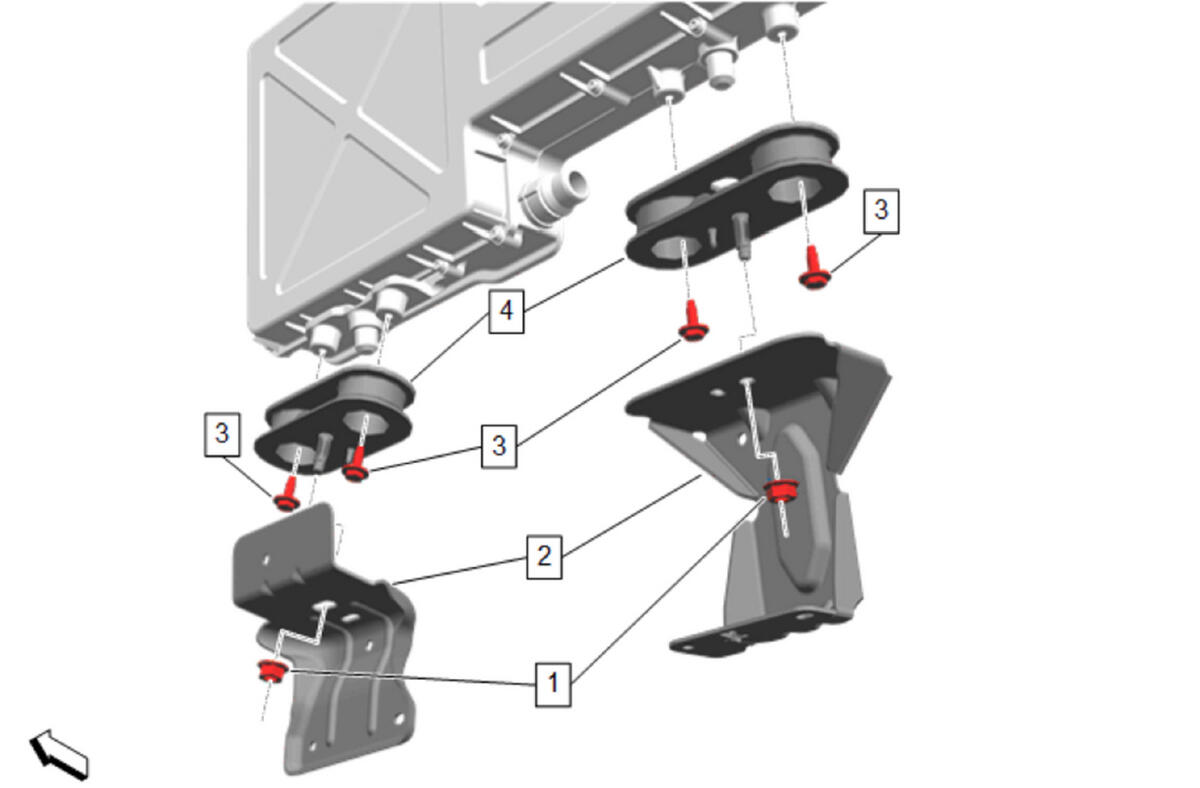

  1. GM6377877Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Adapter (4) - Install [2x]

    2. CAUTION:

    Refer to Fastener Caution

  2. Drive Motor Battery Charger Bolt (3) - Install and tighten [4x] - Fastener Specifications
  3. Drive Motor Battery Charger Bracket (2) - Install [2x]
  4. Drive Motor Battery Charger Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
  5. GM6084852Courtesy of GENERAL MOTORS COMPANY

    Battery Charger (1) - Install

  6. GM6084850Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications

  7. GM6084847Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose Retainer (1) - Install

  8. GM5946250Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Bracket (3) - Install

  9. Drive Motor Battery Charger Ground Bolt (2) - Install and tighten [2x] - Fastener Specifications
  10. Drive Motor Battery Charger Bolt (1) - Install and tighten [2x] - Fastener Specifications
  11. GM5993513Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.(1)

  12. Connect the wiring harness retainers.(2)
  13. GM5950645Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Heater Inlet and Outlet Pipe Bracket Stud (1) - Install and tighten - Fastener Specifications

  14. GM5950643Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Clip (1) - Install

  15. GM5950642Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose (2) @ Battery Charger - Install

  16. Retainer (1) - Engage
  17. GM5951583Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet and Outlet Pipe Clamp (3) - Install

  18. Retainer (2) - Install
  19. Drive Motor Battery Charger Inlet Hose (4) @ Battery Charger - Install
  20. Retainer (1) - Engage

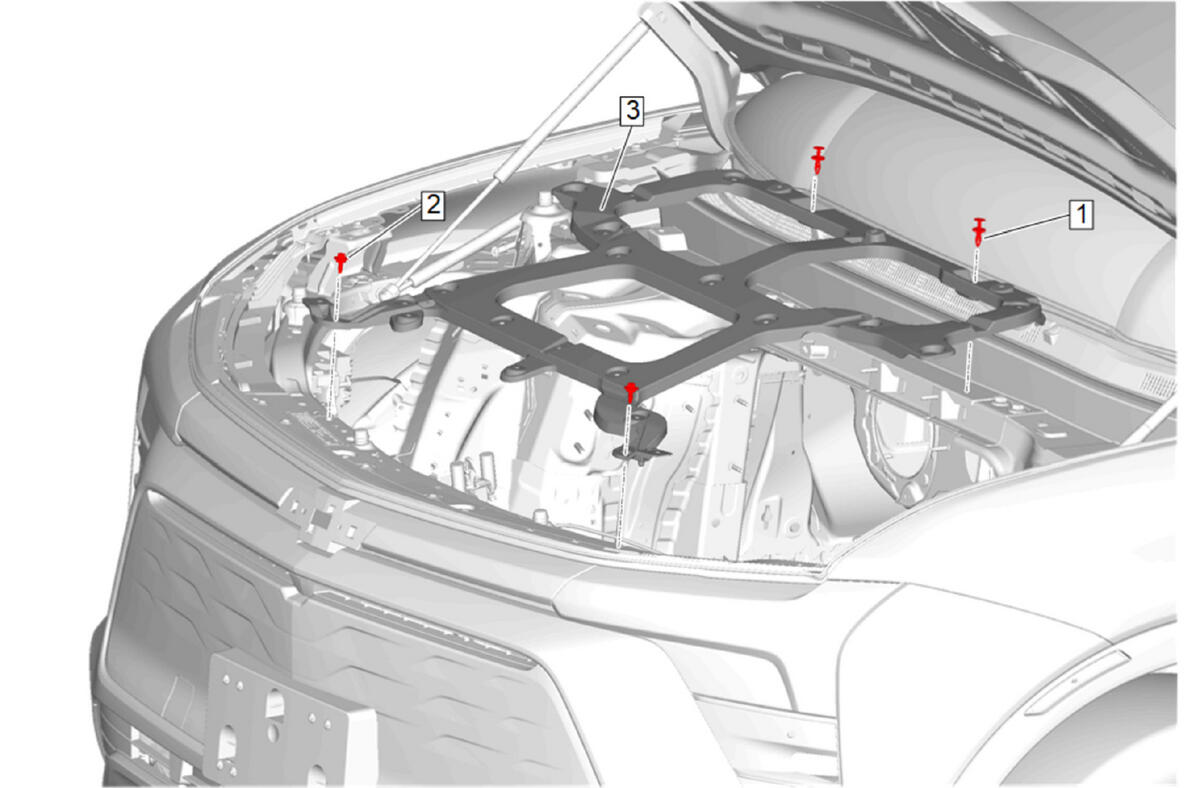

  21. GM6275400Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment Support (3) - Install

  22. Front Trim Finish Compartment Support Bolt (2) - Install and tighten [2x] - Fastener Specifications
  23. Front Trim Finish Compartment Support Retainer (1) - Install [2x]
  24. Connect the wiring harness retainers.

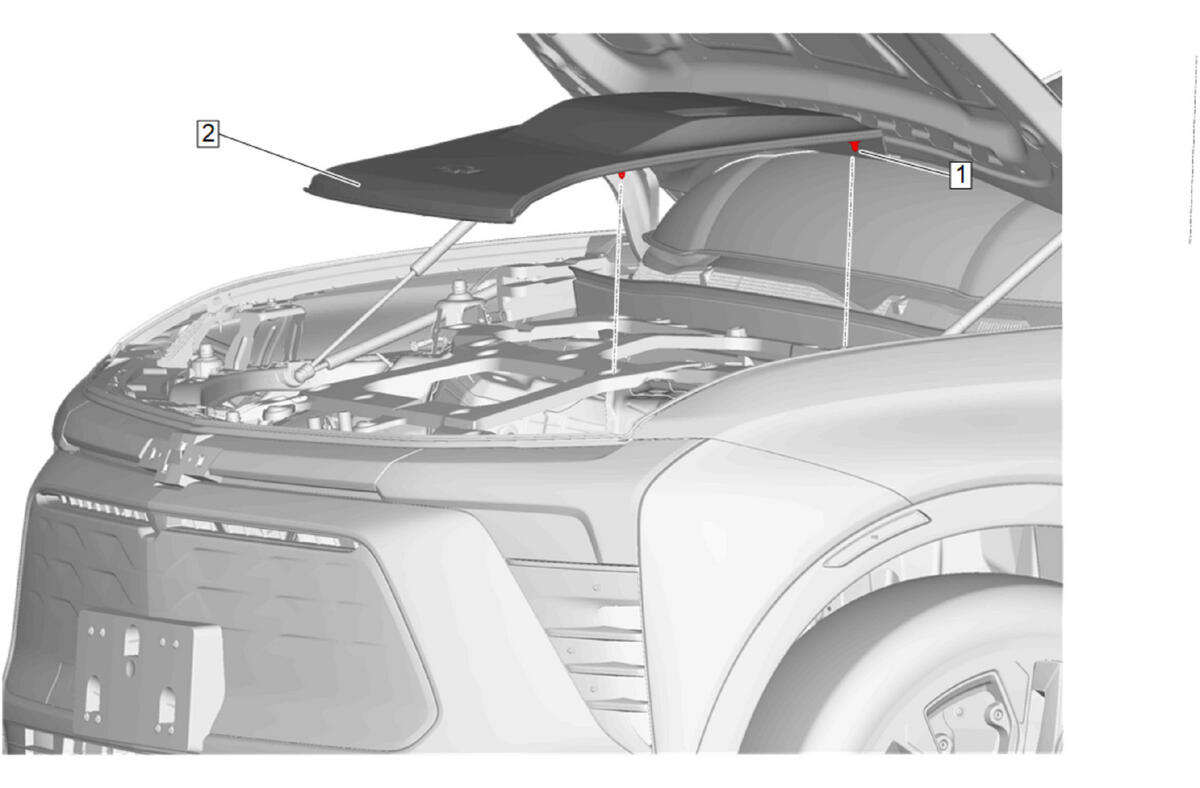

  25. GM6275385Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Center Sight Shield (2) - Install

  26. Front Compartment Center Sight Shield Retainer (1) - Install [8x]

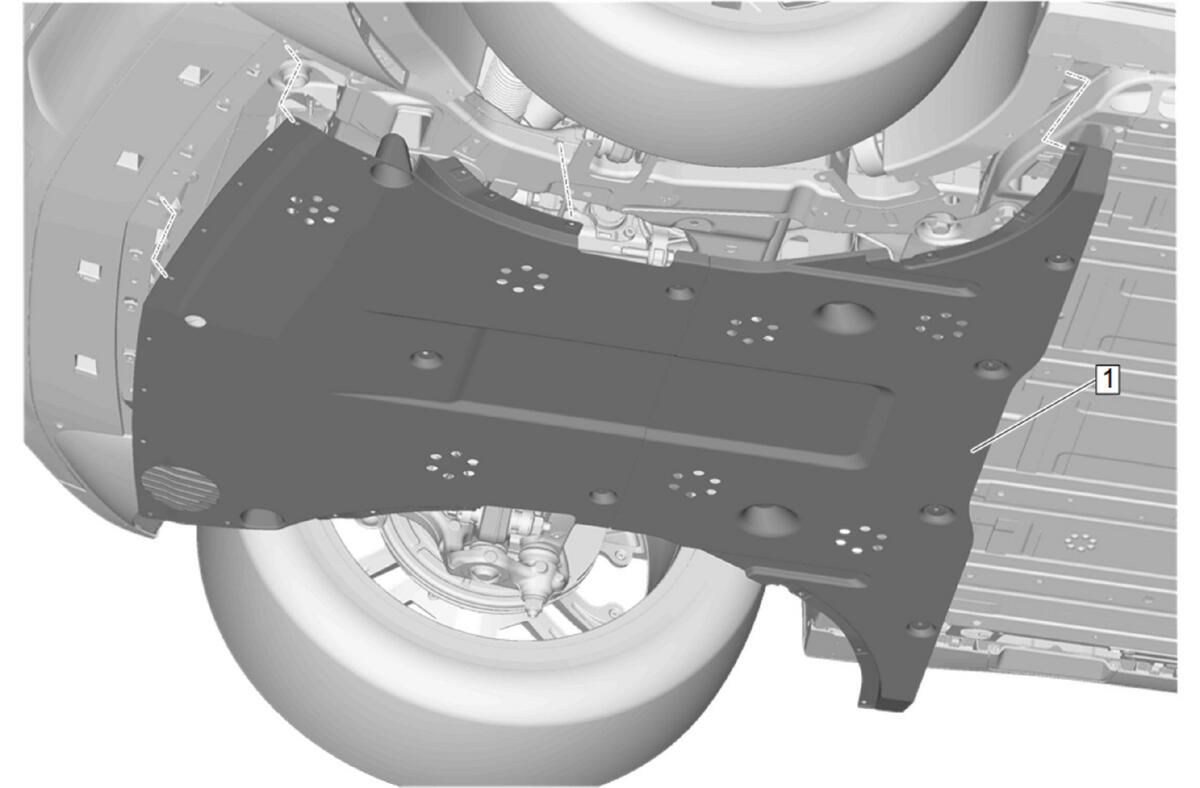

  27. GM6275389Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield- Inner- Left Side and Right Side (2) - Install [2x]

  28. Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [16x]

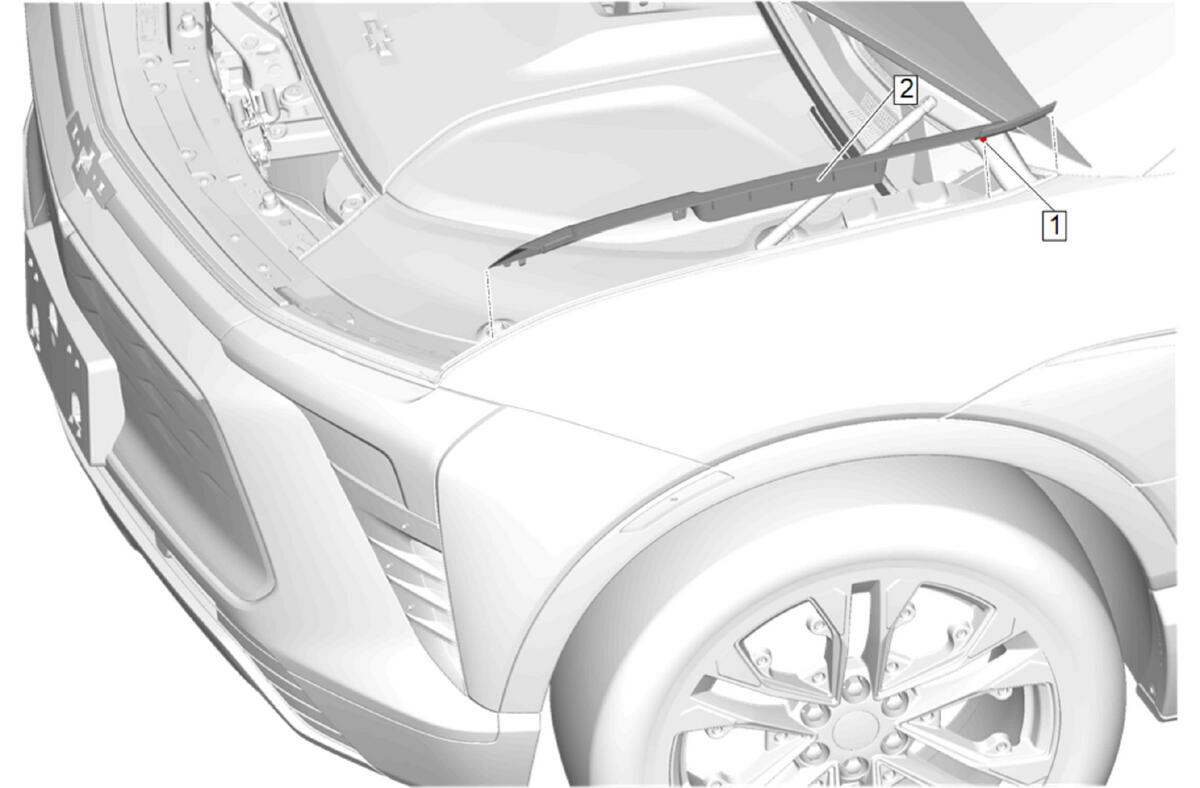

  29. GM6275390Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield- Outer- Left Side and Right Side (2) - Install [2x]

  30. Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [2x]

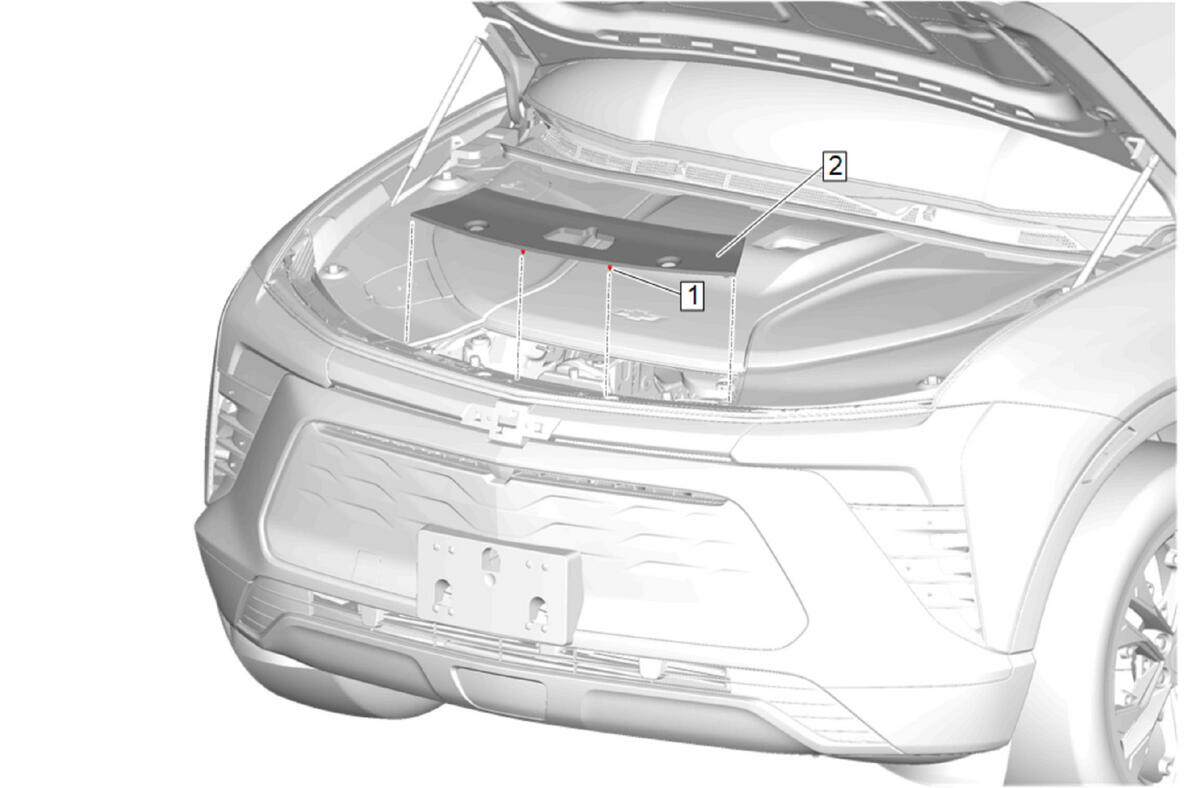

  31. GM6275386Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) - Install

  32. Front Compartment Front Sight Shield Retainer (1) - Install
  33. Fill the cooling system to the proper level. Drive Motor Battery Cooling System Draining and Filling (RWL) , or Drive Motor Battery Cooling System Draining and Filling (XFD)
  34. Enable the high voltage system. High Voltage Enabling
