Installation Procedure

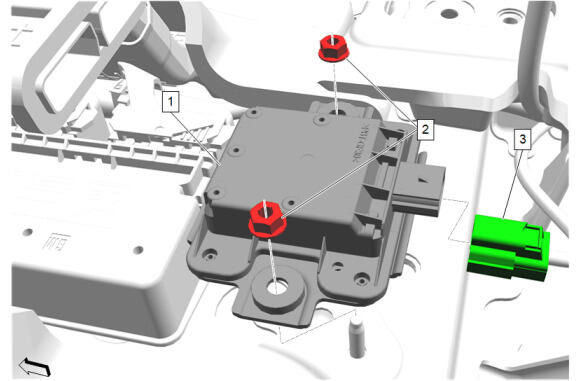

  1. GM5951505Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamic Sensor (1) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Vehicle Dynamic Sensor Nut (2) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.(3)
  4. With the aid of an assistant, position the front floor console (1) into the vehicle. Front Floor Console Removal and Installation
  5. Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration , Vehicle Dynamic Sensor Offset Calibration
