Home >> Chevrolet >> 2024 >> Blazer EV RS, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Repair Instructions >> Remote Function Actuator Module Replacement >> Removal Procedure

Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Headlining Trim Panel - Remove - Headlining Trim Panel Replacement (CAJ) , or Headlining Trim Panel Replacement (- CAJ)

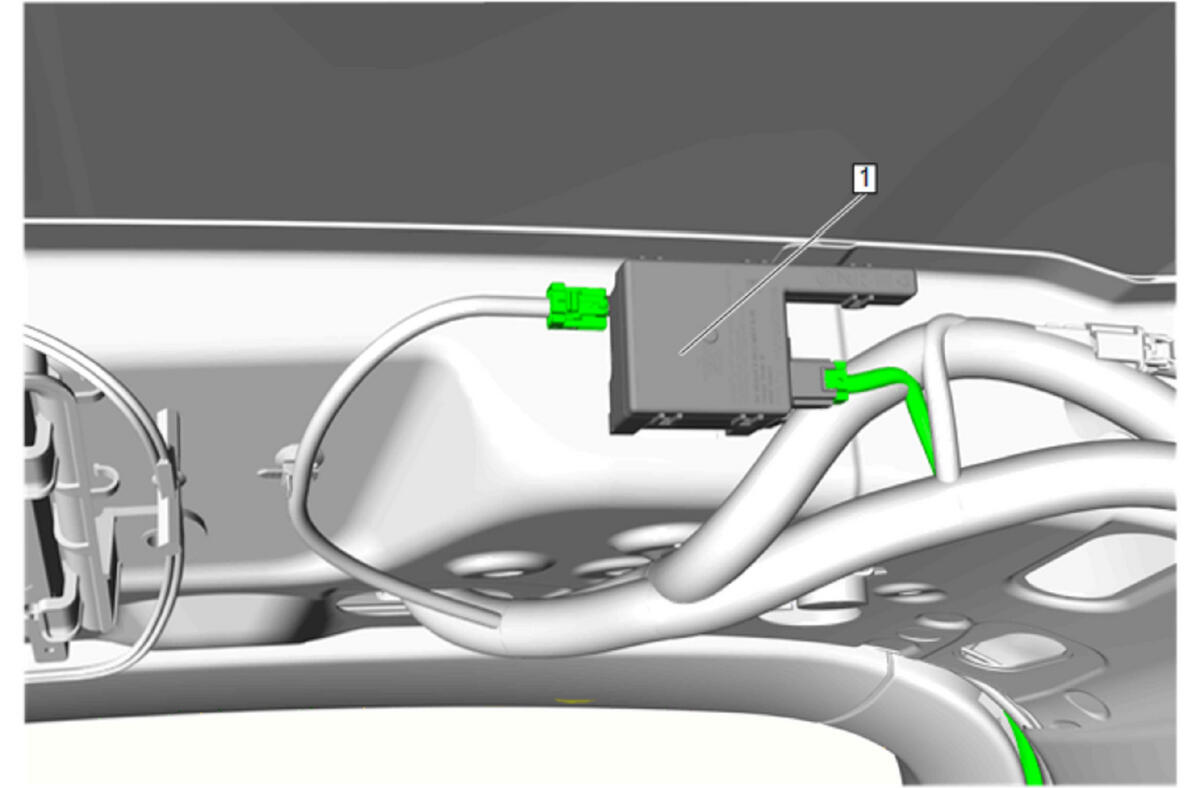

  3. GM6278085Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  4. Release the retaining tabs.
  5. Remote Function Actuator Module (1) - Remove
