Fastener Specifications

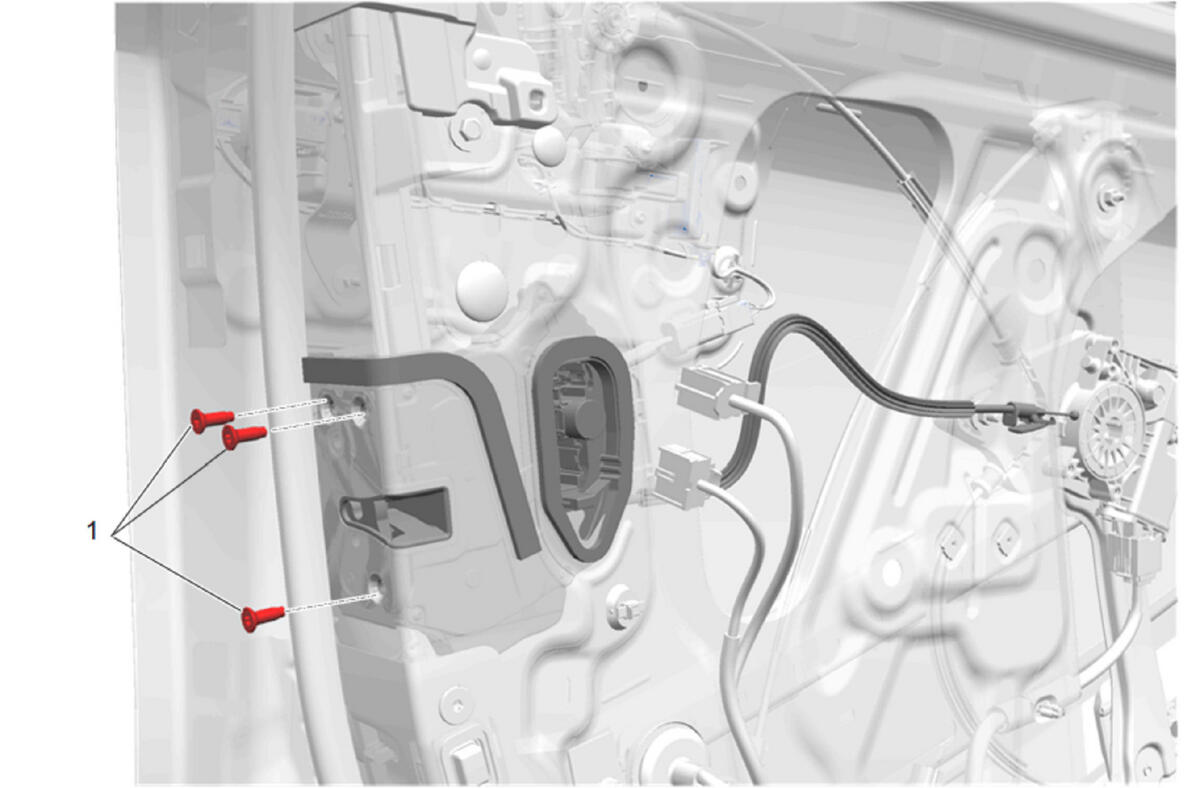

GM5956173Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) FRONT SIDE DOOR LATCH REPLACEMENT - LEFT SIDE , or FRONT SIDE DOOR LATCH REPLACEMENT - RIGHT SIDE

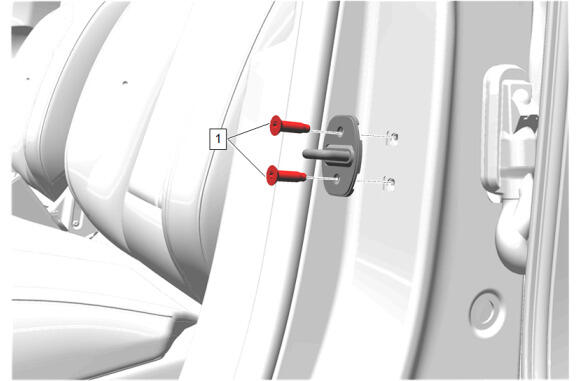

GM5946512Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement

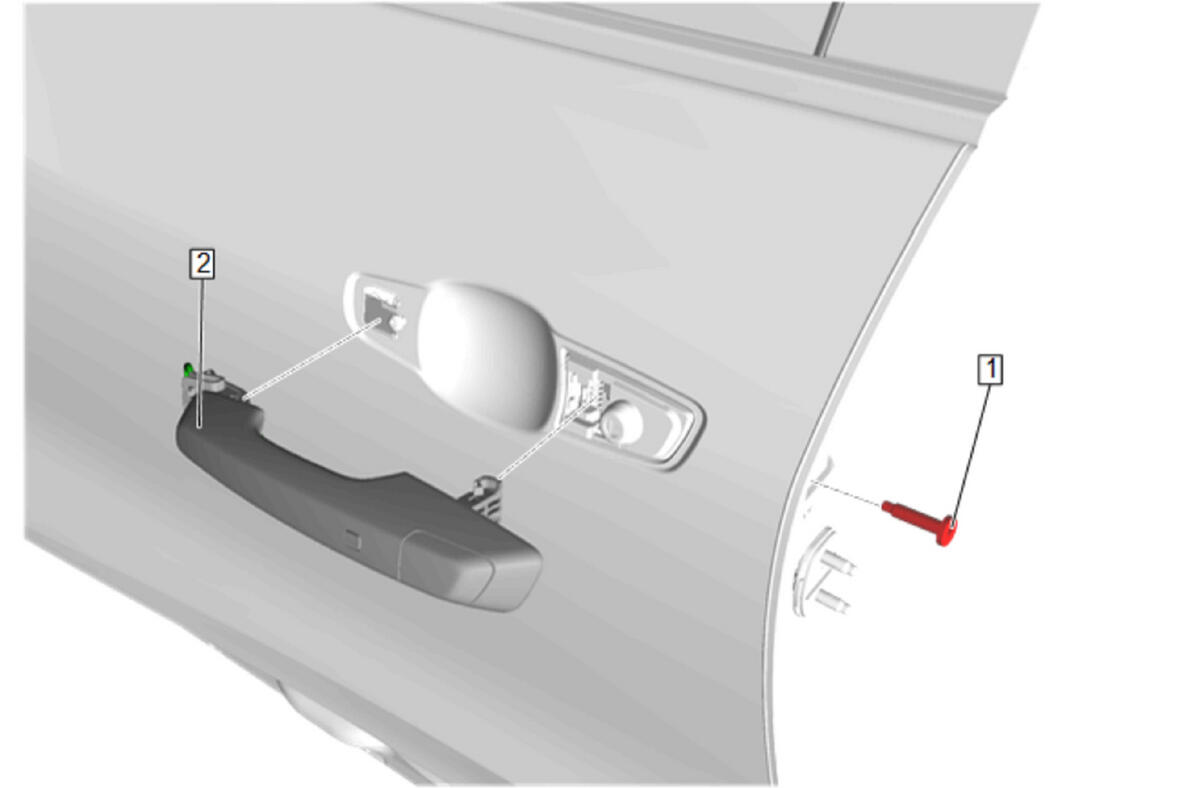

GM6274000Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Nut - - 4.5 N.m (40 lb in) Front Side Door Outside Handle Replacement

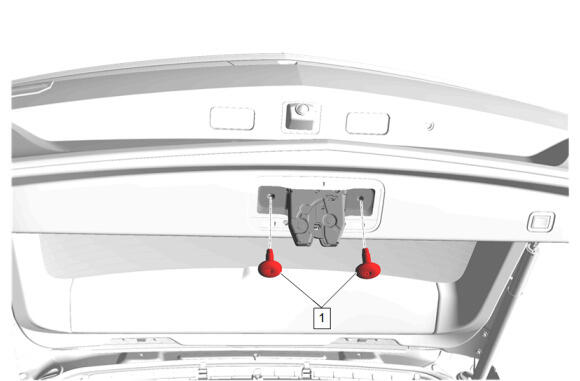

GM6002571Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [2x] - Yes 22 N.m (16 lb ft) Liftgate Latch Replacement

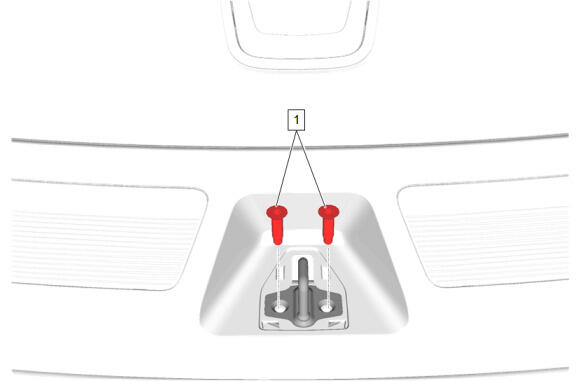

GM6002435Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement

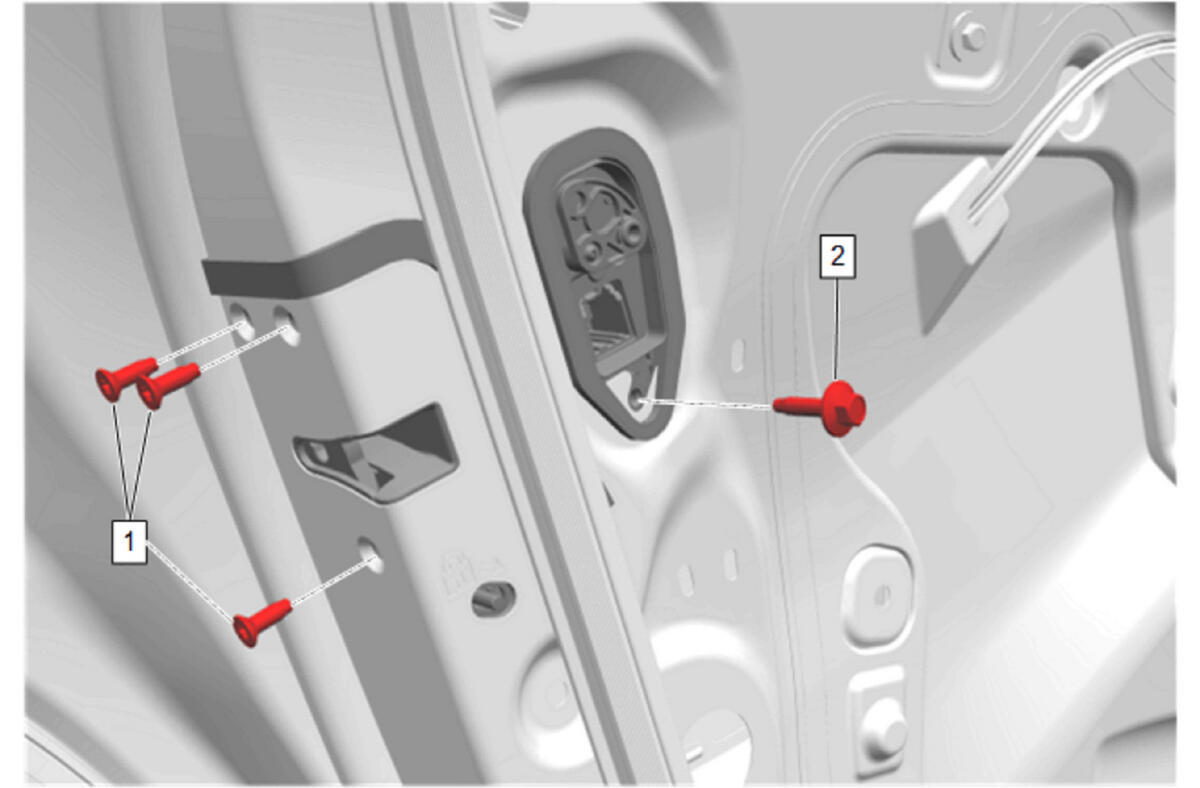

GM6482025Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Rear Side Door Latch Replacement
2 Rear Side Door Latch Bolt - - 11 N.m (97 lb in) Rear Side Door Latch Replacement

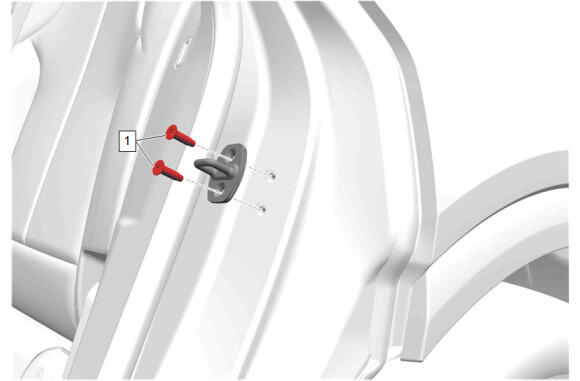

GM5946435Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement

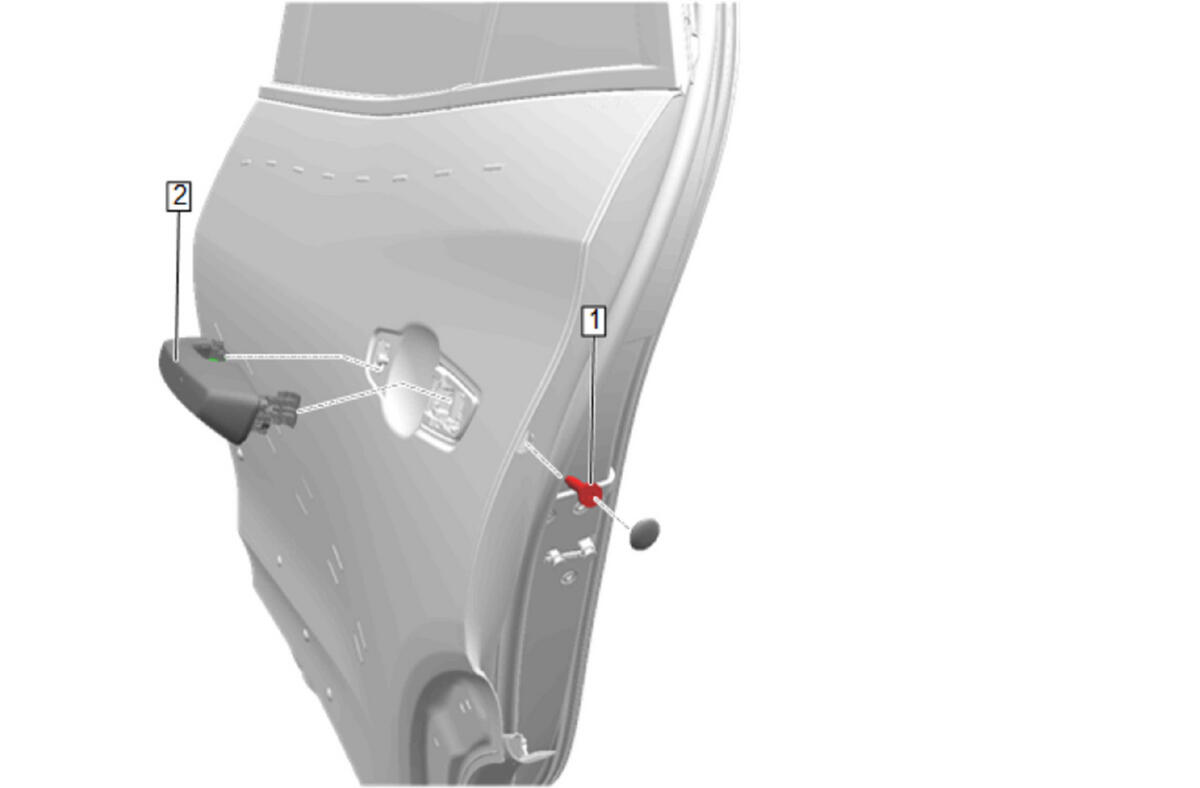

GM6274504Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bolt - - 4.5 N.m (40 lb in) Rear Side Door Outside Handle Replacement

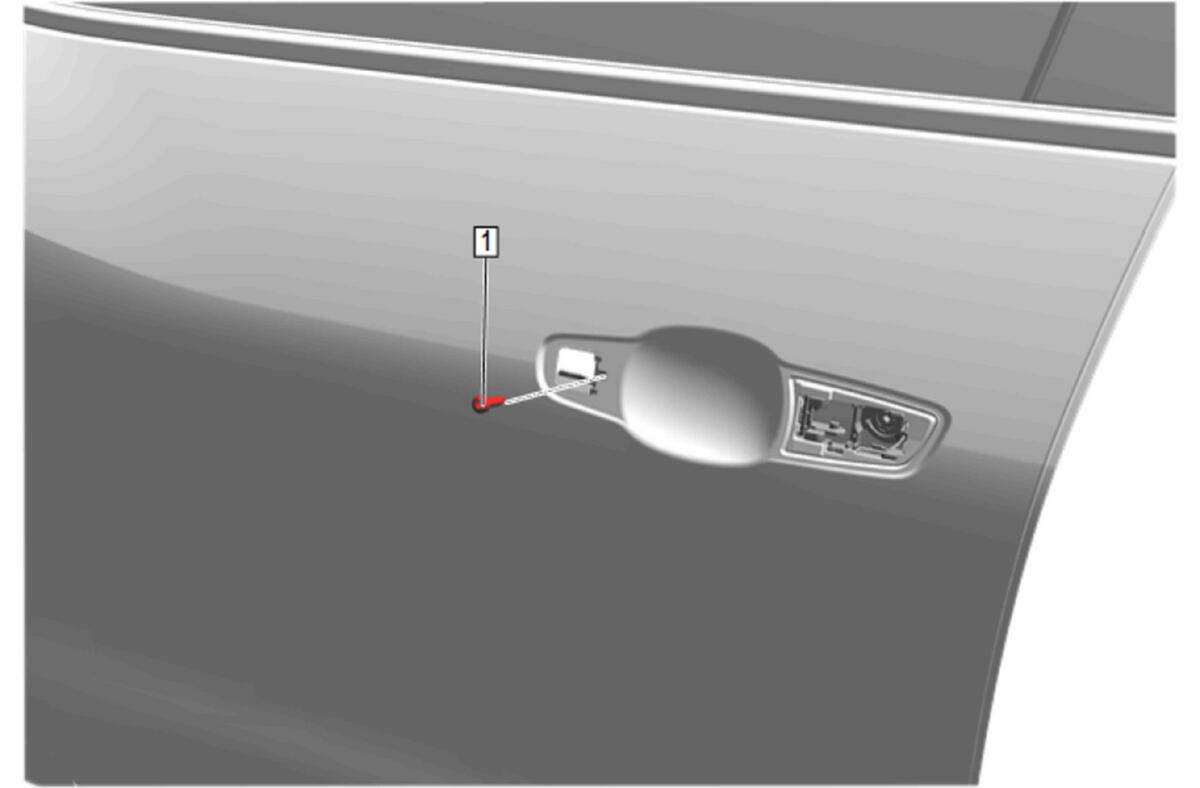

GM6273996Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bolt - - 4.5 N.m (40 lb in) Rear Side Door Outside Handle Replacement
