Installation Procedure

  1. GM6003673Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Gear Shift Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Automatic Transmission Electronic Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.(3)
  4. GM6280286Courtesy of GENERAL MOTORS COMPANY

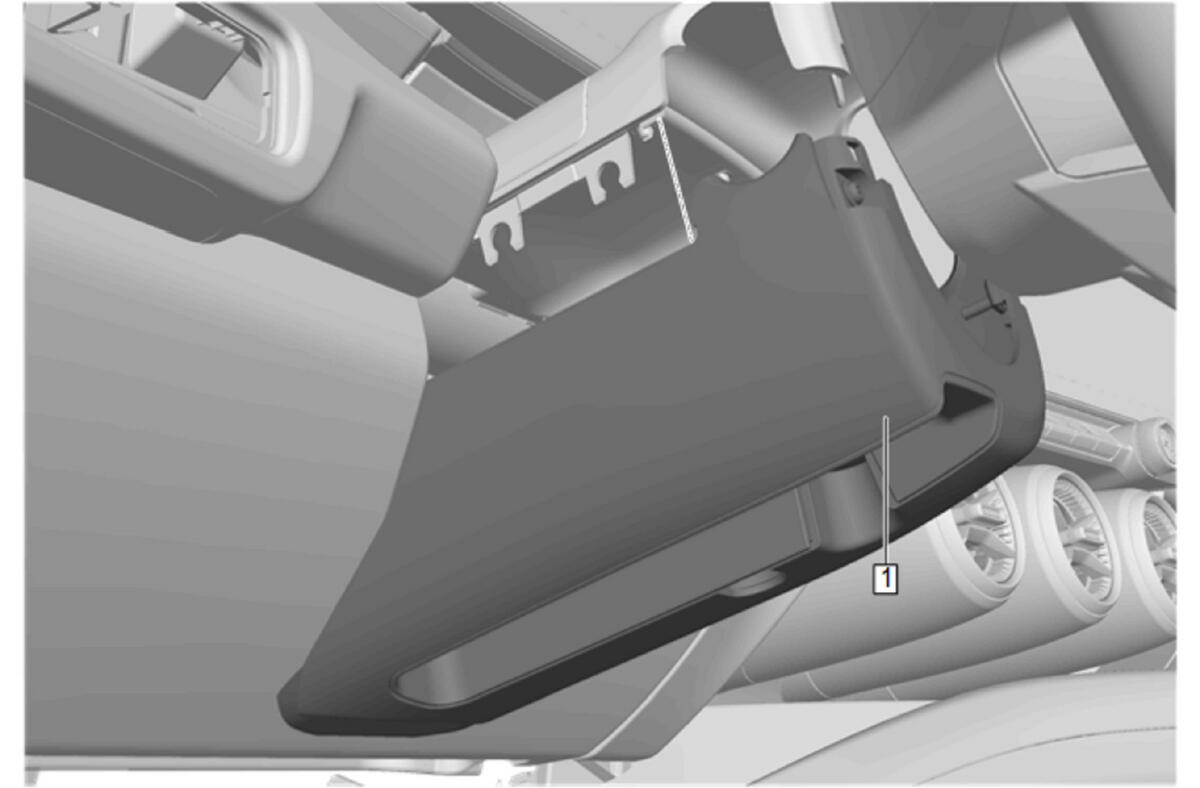

    Instrument Panel Steering Column Lower Trim Cover (1) - Install

  5. GM5980047Courtesy of GENERAL MOTORS COMPANY

    Rotate the steering wheel left and right to access the fasteners securing the lower trim cover.

  6. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications [3x]
  7. GM6280266Courtesy of GENERAL MOTORS COMPANY

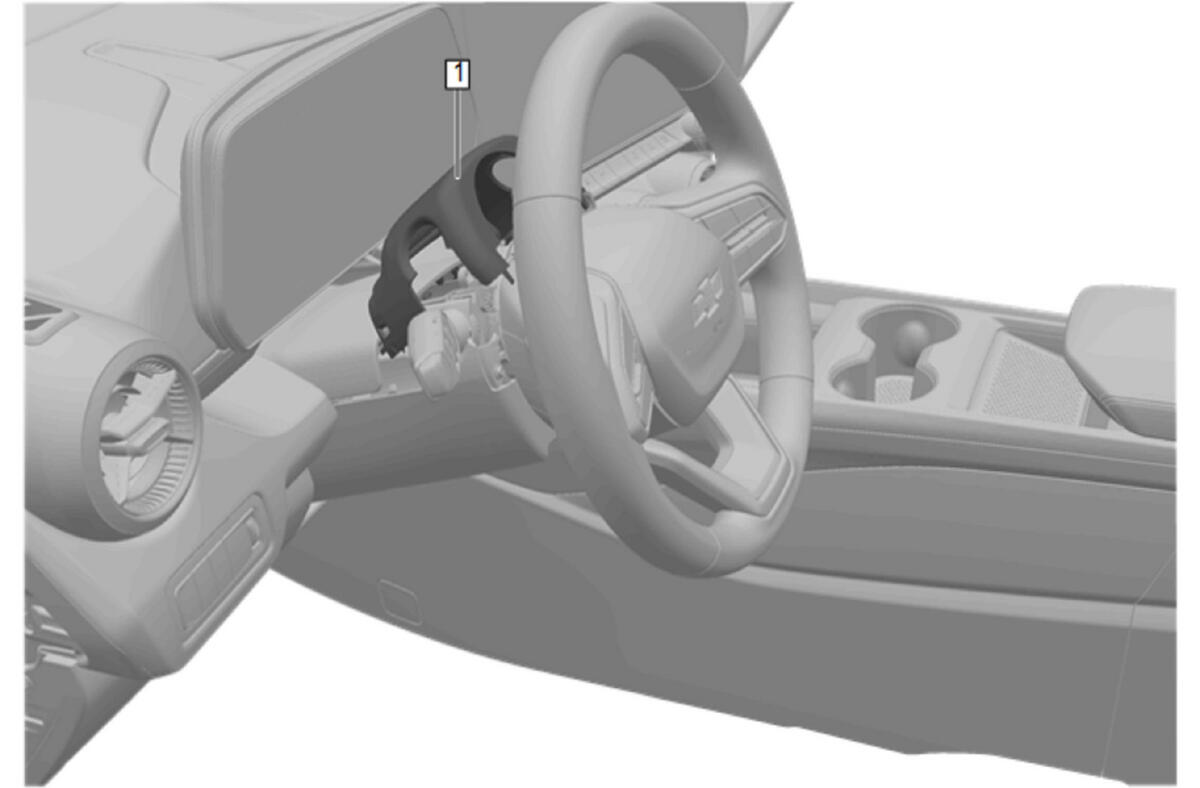

    Instrument Panel Steering Column Upper Trim Cover - Install

  8. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
