Fastener Specifications

GM5969809Courtesy of GENERAL MOTORS COMPANY
Intermediate Steering Shaft

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Mid Intermediate Steering Shaft Bolt - Yes 58 N.m (43 lb ft) Intermediate Steering Shaft Replacement
2 Intermediate Steering Shaft Boot Nut [3x] - - 9 N.m (80 lb in) Intermediate Steering Shaft Outer Boot Replacement
3 Intermediate Steering Shaft Upper Bolt - - 50 N.m (37 lb ft) Upper Intermediate Steering Shaft Replacement
4 Intermediate Steering Shaft Lower Bolt - - 50 N.m (37 lb ft) Intermediate Steering Shaft Replacement
GM6142849Courtesy of GENERAL MOTORS COMPANY
Steering Column

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - Steering Column Nut Sequence  Steering Column Replacement (with KI3) , or Steering Column Replacement (without KI3)
GM6273983Courtesy of GENERAL MOTORS COMPANY
Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt - - 45 N.m (33 lb ft) Steering Wheel Replacement (With KI3) , or Steering Wheel Replacement (Without KI3)
GM6273989Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Trim Spoke Cover Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [2x] - - 1 N.m (9 lb in) Steering Wheel Horn Switch Wiring Harness Replacement (With KI3) , or Steering Wheel Horn Switch Wiring Harness Replacement (Without KI3)
GM5981235Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turn Signal Switch Bolt [2x] - - 3.3 N.m (29 lb in) Turn Signal Switch Replacement
GM6273985Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Shroud

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [5x] - - 1 N.m (9 lb in) Steering Wheel Shroud Replacement (With KI3) , or Steering Wheel Shroud Replacement (Without KI3)
GM6273984Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Shroud

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cruise Control Switch Bolt [2x] - - 0.4 N.m (3.5 lb in) Steering Wheel Shroud Replacement (With KI3) , or Steering Wheel Shroud Replacement (Without KI3)
GM6273991Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Vibration Dampener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt [3x] - - 5.5 N.m (49 lb in) Steering Wheel Vibration Dampener Replacement (With KI3) , or Steering Wheel Vibration Dampener Replacement (Without KI3)

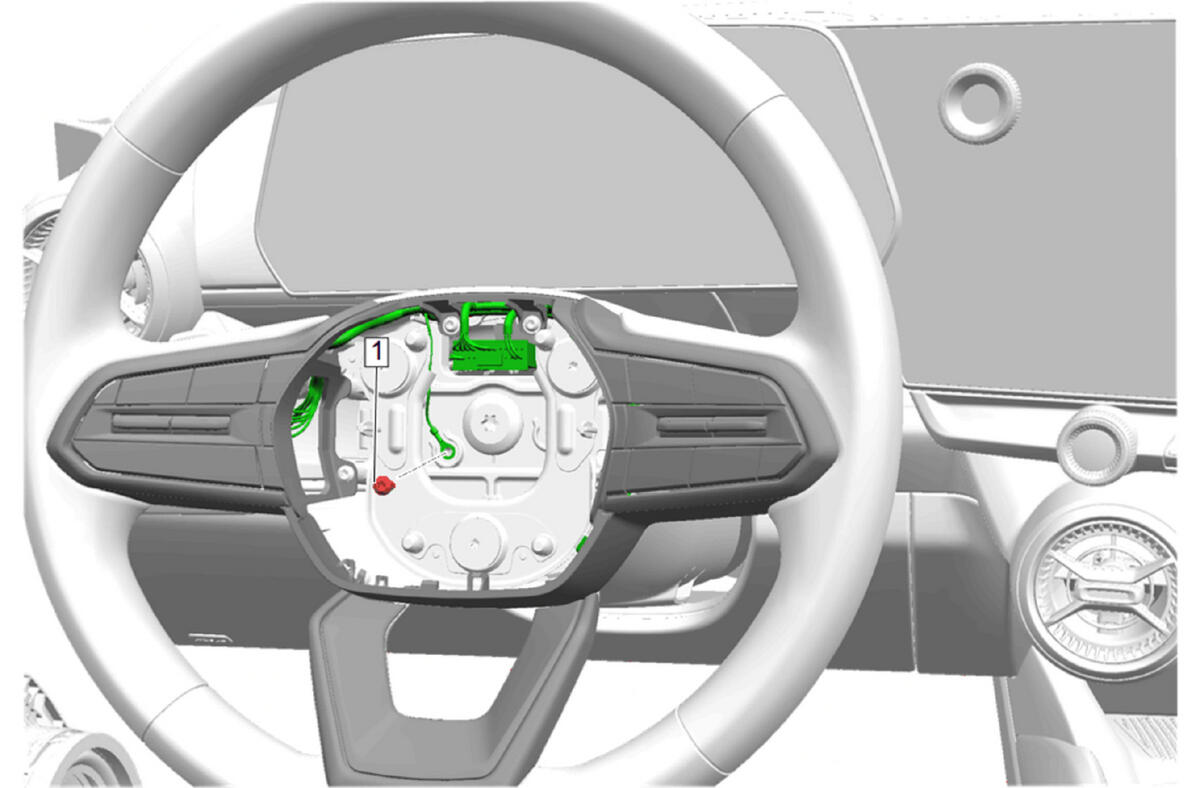

GM6407751Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Horn Switch Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt - - 1 N.m (9 lb in) Steering Wheel Horn Switch Wiring Harness Replacement (With KI3) , or Steering Wheel Horn Switch Wiring Harness Replacement (Without KI3)
GM6224296Courtesy of GENERAL MOTORS COMPANY
Steering Column Control Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 turn signal switch bracket band clamp - - 5 N.m (44 lb in) Steering Column Control Module Replacement (With KI3) , or Steering Column Control Module Replacement (Without KI3)
GM5989522Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch Bracket Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Electronic Control Bolt [2x] - - 3.3 N.m (29 lb in) Turn Signal Switch Bracket Replacement (With KI3) , or Turn Signal Switch Bracket Replacement (Without KI3)
GM6273987Courtesy of GENERAL MOTORS COMPANY
Cruise Control Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cruise Control Switch Bolt [2x] - - 0.4 N.m (3.5 lb in) Steering Wheel Trim Spoke Cover Applique Replacement (With KI3) , or Steering Wheel Trim Spoke Cover Applique Replacement (Without KI3)
GM6273986Courtesy of GENERAL MOTORS COMPANY
Radio Control Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cruise Control Switch Bolt [2x] - - 0.4 N.m (3.5 lb in) Steering Wheel Trim Spoke Cover Applique Replacement (With KI3) , or Steering Wheel Trim Spoke Cover Applique Replacement (Without KI3)
Steering Column

Steering Column Nut Sequence
GM6142840Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - 22 N.m (16 lb ft) Steering Column Replacement (with KI3) , or Steering Column Replacement (without KI3)
