Installation Procedure

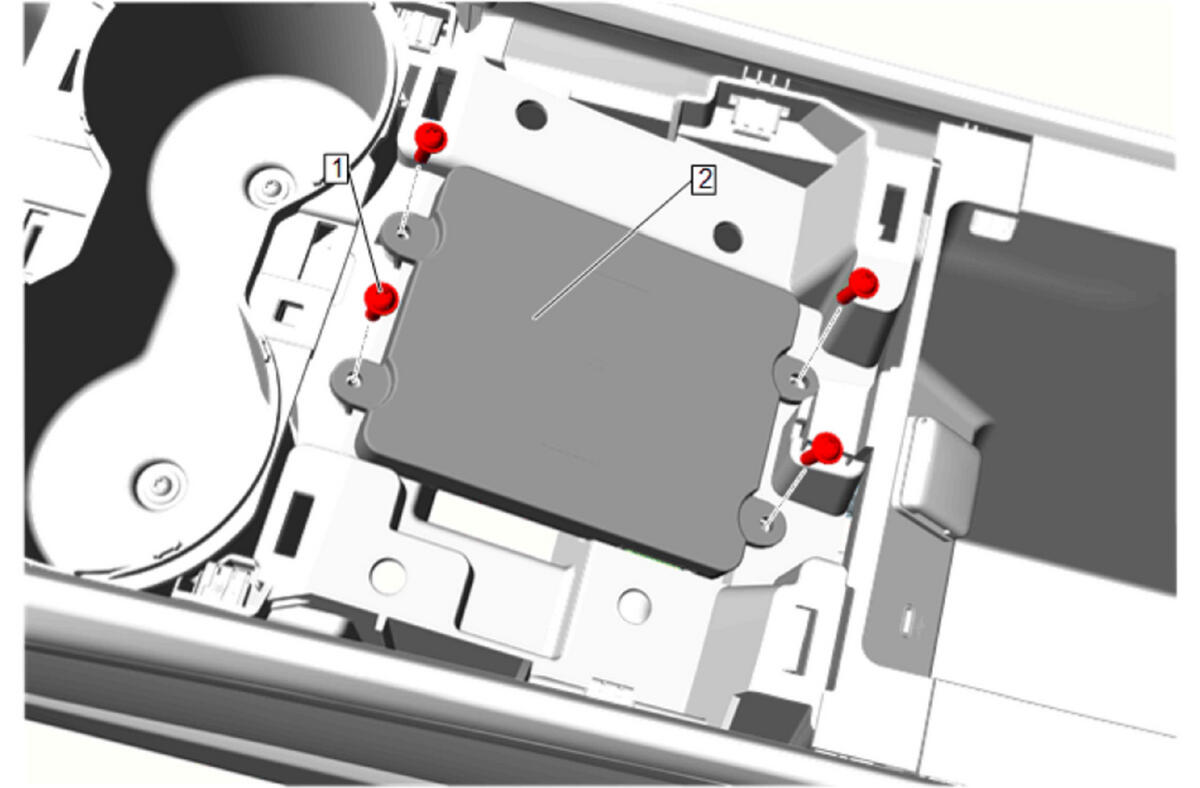

  1. GM6278078Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Wireless Charging System Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  4. GM6280231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Trim Plate (1) - Install

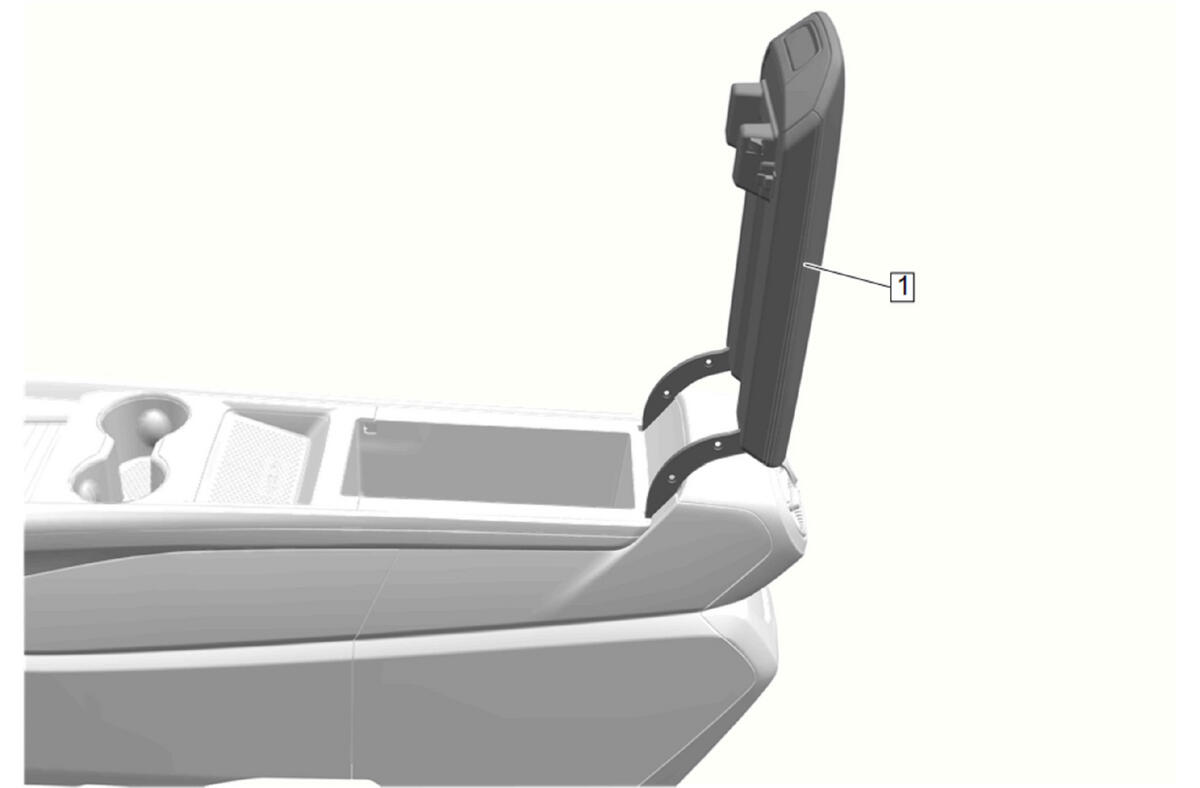

  5. GM6407755Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Armrest (1) - Close
