Installation Procedure

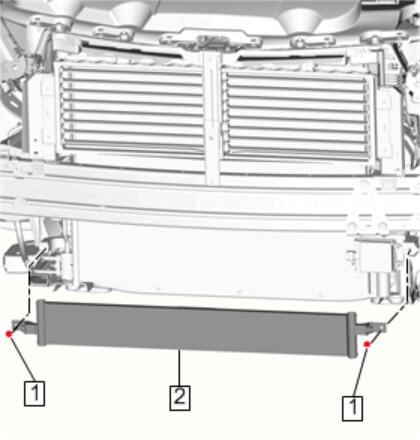

Transmission Fluid Auxiliary Cooler (2) - Install
- Transmission Fluid Auxiliary Cooler Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)

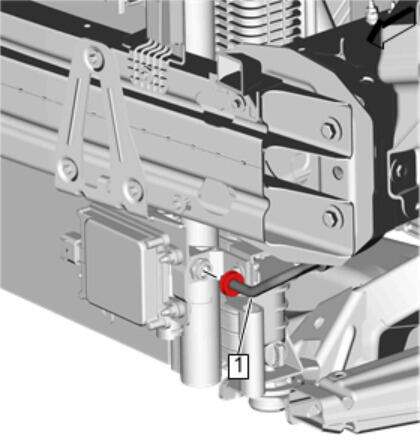

Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Auxiliary Cooler - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
Transmission Fluid Cooler Pipe (1) @ Transmission Fluid Auxiliary Cooler - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
Radiator Air Lower Baffle (1) - Install - Radiator Air Front Lower Baffle Replacement

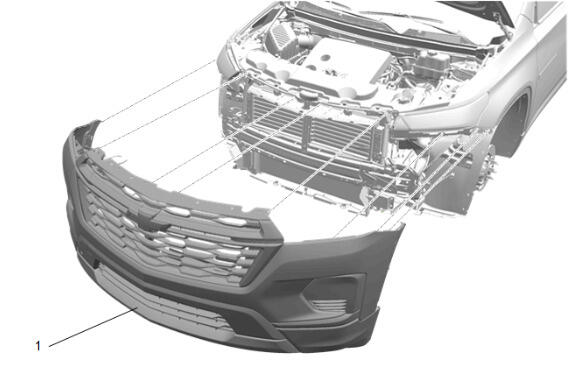

Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement
- Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level and Condition Check
- Start the engine and inspect for leaks.
CAUTION:
Refer to Fastener Caution .
