Installation Procedure

  1. GM4762667Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  2. Instrument Panel Compartment Door Opening Frame (1) - Install
  3. GM4762666Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Compartment Door Opening Frame Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  4. GM4762664Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Opening Frame Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  5. GM4762663Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Opening Frame Bolt (1) - Install and tighten [7x] 2.5 N.m (22 lb in)

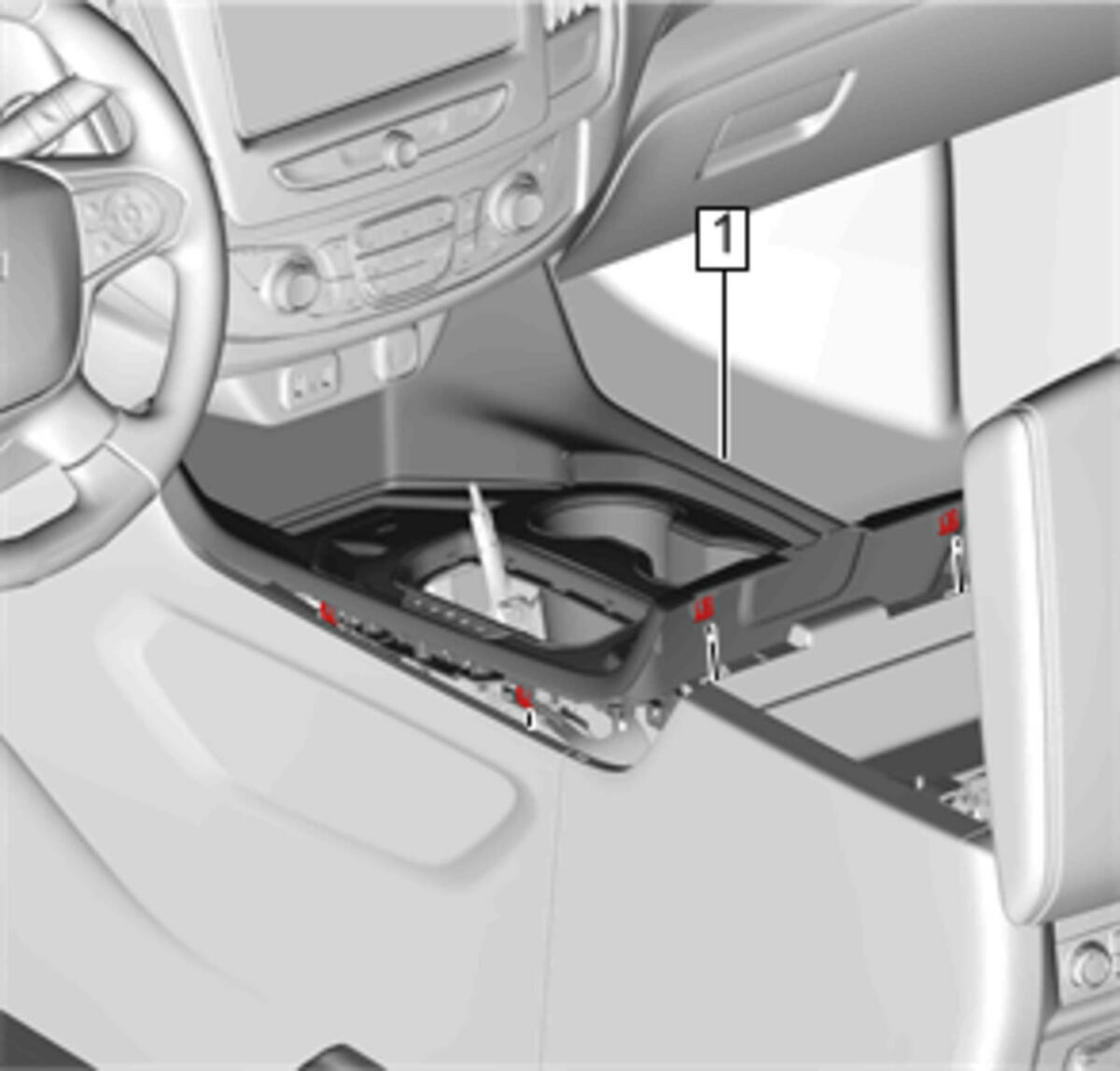

  6. GM4749776Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Plate (1) - Install - Front Floor Console Cup Holder Plate Replacement

  7. GM4756534Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

  8. GM4738614Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement

  9. Instrument Panel Radio Front Trim Plate - Install - Instrument Panel Radio Front Trim Plate Replacement (IOR) , or Instrument Panel Radio Front Trim Plate Replacement (IOS, IOU)
  10. GM4756846Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

  11. GM4755737Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side
