Installation Procedure
Place a suitable adjustable jack under the fuel tank.

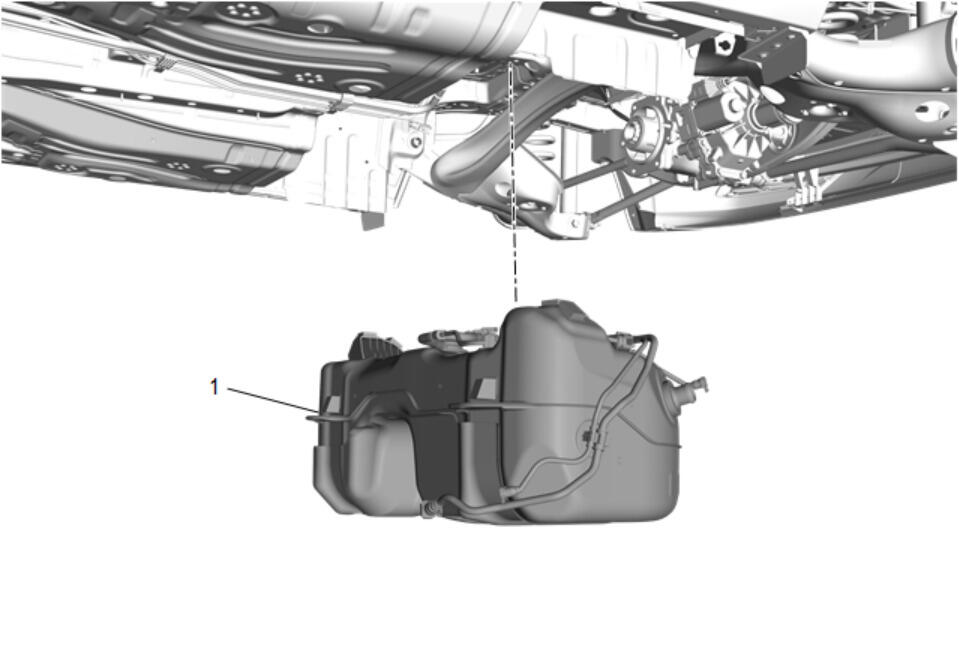

- Fuel Tank (1) - Install

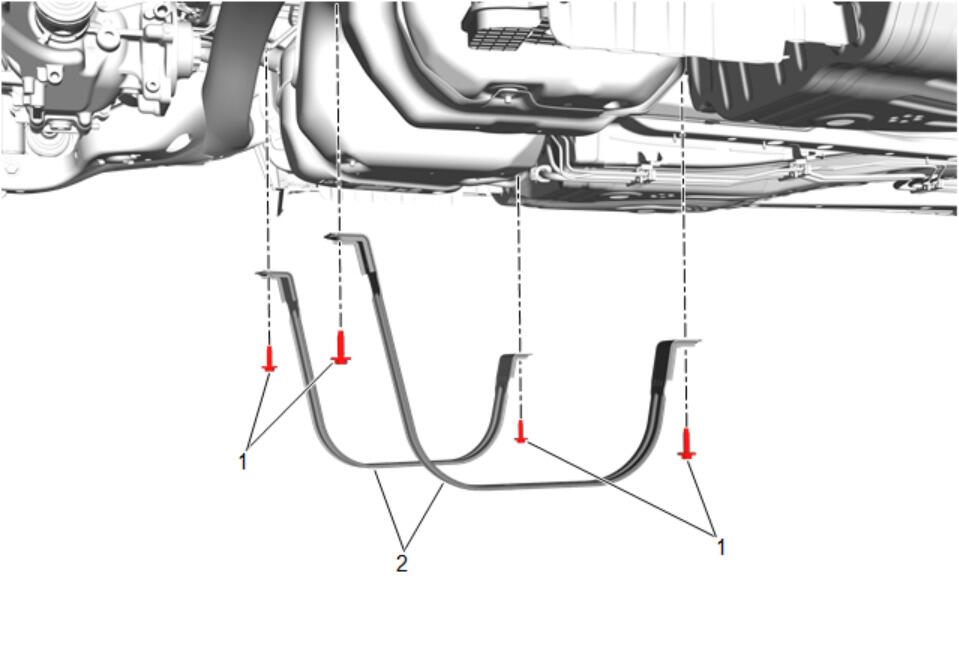

Fuel Tank Strap (2) - Install [2x]
- Fuel Tank Strap Bolt (1) - Install and tighten [4x] 22 N.m (16 lb ft)

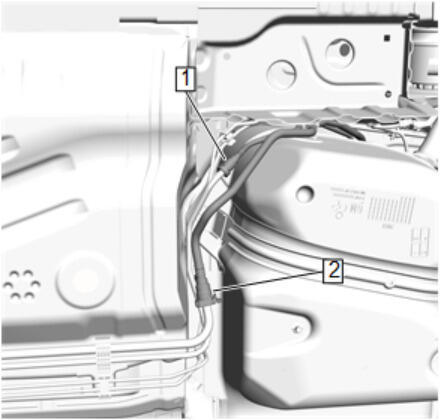

Evaporative Emission Pipe-Fuel Tank (2) @ Evaporative Emission Pipe-Underbody - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Feed Pipe-Fuel Tank (1) @ Fuel Feed Pipe-Underbody - Connect - Plastic Collar Quick Connect Fitting Service

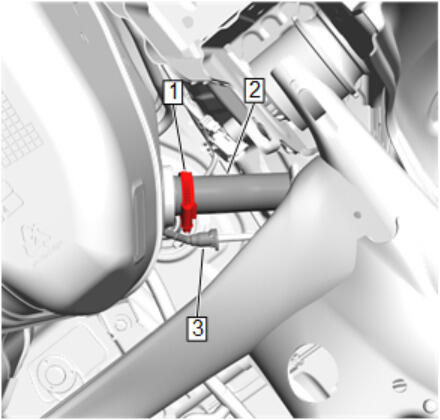

Fuel Tank Vapor Pipe (3) @ Fuel Tank Filler Pipe - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Hose (2) @ Fuel Tank - Connect
- Fuel Tank Filler Hose Clamp (1) @ Fuel Tank Filler Hose - Install

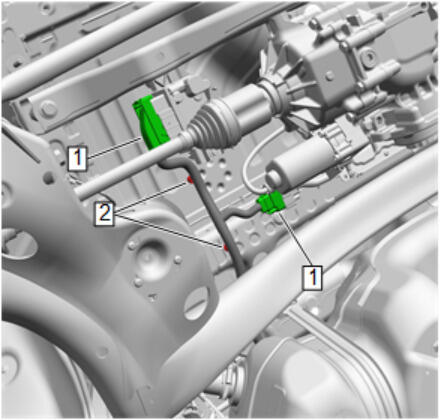

Wiring Harness Retainer (2) - Secure [2x]
- Wiring Harness (1) - Connect [2x]
- Driveline Torque Tube @ Vehicle - Install - Driveline Torque Tube Replacement

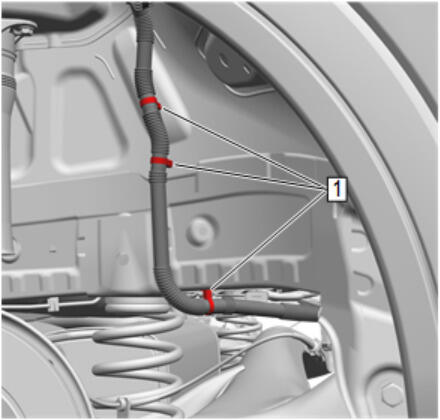

Retainer (1) - Secure [3x]

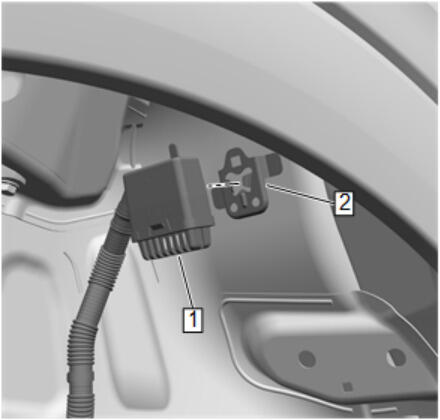

Evaporative Emission Canister Air Inlet Hose (1) @ Rear Wheelhouse Panel Bracket (2) - Install
- Rear Wheelhouse Liner- Right Side - Install - Rear Wheelhouse Liner Replacement
- Install the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Refill the fuel tank.
- Inspect for fuel leaks.
CAUTION:
