Overhead Console Components

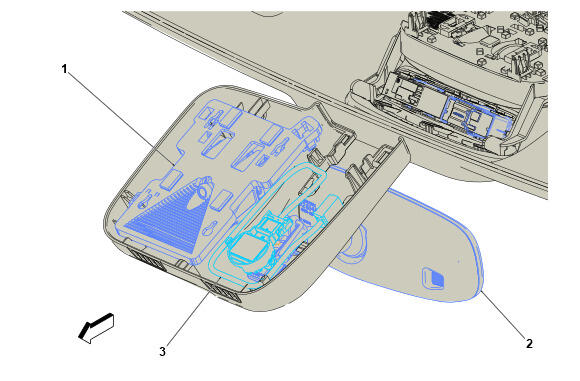

GM5416725Courtesy of GENERAL MOTORS COMPANY
Items
(1) B174W Frontview Camera - Windshield (UEU) B174W Frontview Camera - Windshield
(2) A10 Inside Rearview Mirror A10 Inside Rearview Mirror
(3) B160 Windshield Temperature and Inside Moisture Sensor (ASV+C68) B160 Windshield Temperature and Inside Moisture Sensor (ASV)
