Engine - Left Components (LIH)

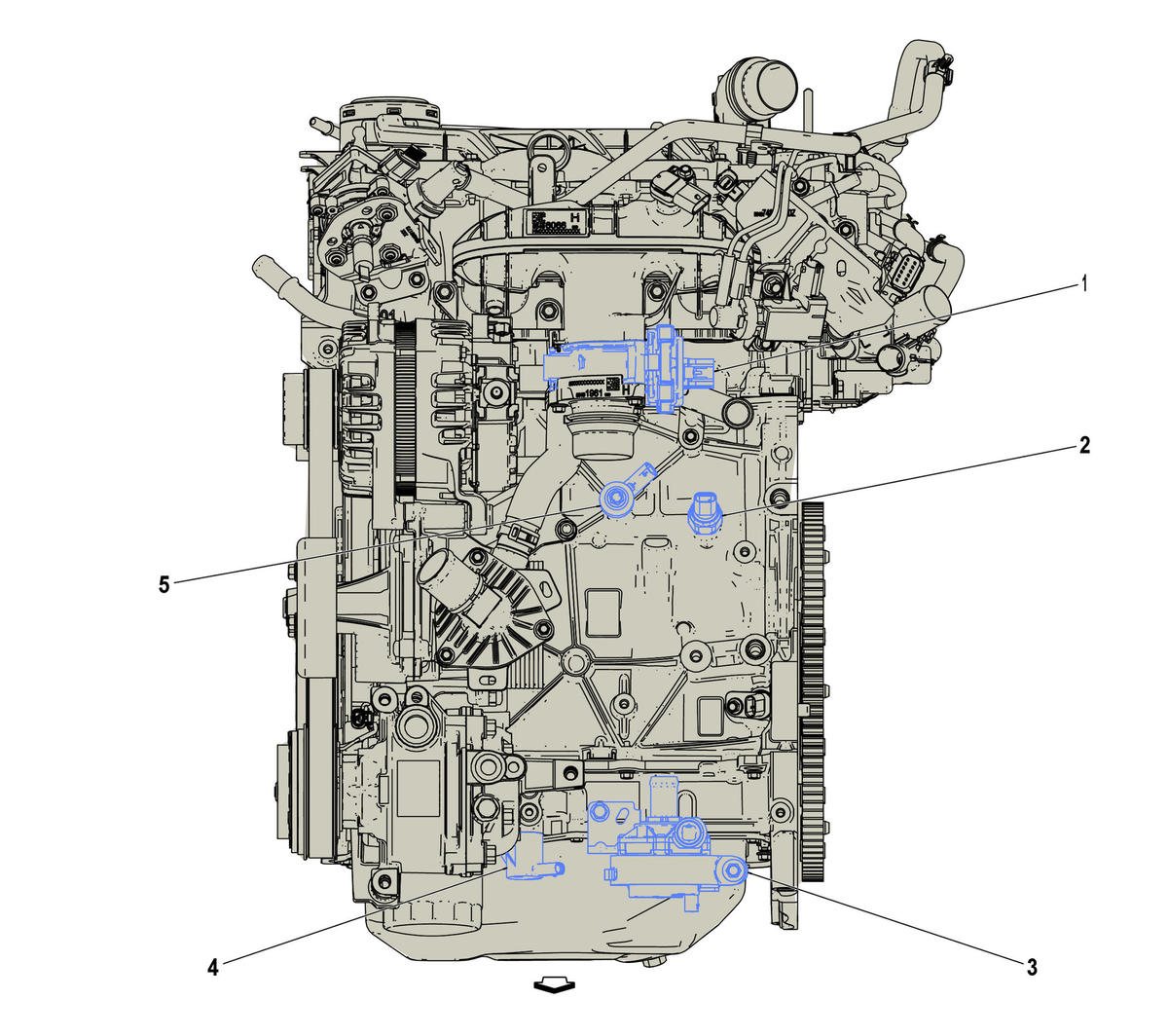

GM5416704Courtesy of GENERAL MOTORS COMPANY
Items
(1) Q38 Throttle Body Q38 Throttle Body
(2) B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
(3) G8 Coolant Pump - Auxiliary (LIH) G8 Coolant Pump - Auxiliary
(4) Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (L3T) , or Q44 Engine Oil Pressure Control Solenoid Valve (LIH)
(5) B68A Knock Sensor 1 (L3T) B68A Knock Sensor 1 (L3T)
