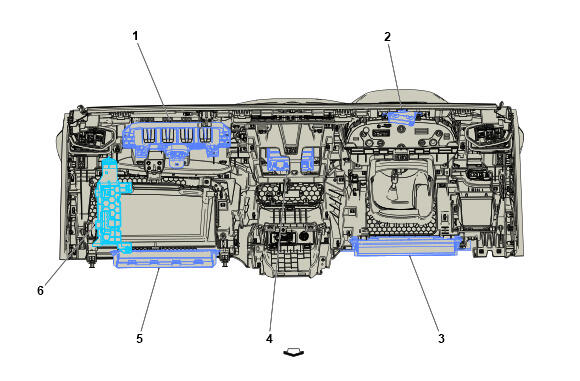

Back of the Instrument Panel Component

GM5430177Courtesy of GENERAL MOTORS COMPANY
Items
(1) F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag
(2) P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators
(3) F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
(4) K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 , or K73 Telematics Communication Interface Control Module X2 , or K73 Telematics Communication Interface Control Module X3
(5) F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
(6) A11 Radio A11 Radio X1 (IOR+UIJ) , or A11 Radio X1 (IOR+UIR)A11 Radio X11 (IOS) , or A11 Radio X1A (IOS)A11 Radio X2 (IOR+UIJ) , or A11 Radio X2 (IOR+UIR)A11 Radio X2A (IOS) , or A11 Radio X2B (IOS)A11 Radio X3 (IOR+UIJ) , or A11 Radio X3 (IOR+UIR)A11 Radio X3 (IOS) , or A11 Radio X4 (IOR+UIJ)A11 Radio X4 (IOR+UIR) , or A11 Radio X4 (IOS)A11 Radio X5 (IOS+UVB) , or A11 Radio X6 (IOR)A11 Radio X6 (IOS) , or A11 Radio X7 (IOR+UVB)A11 Radio X8 (IOR)
