Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

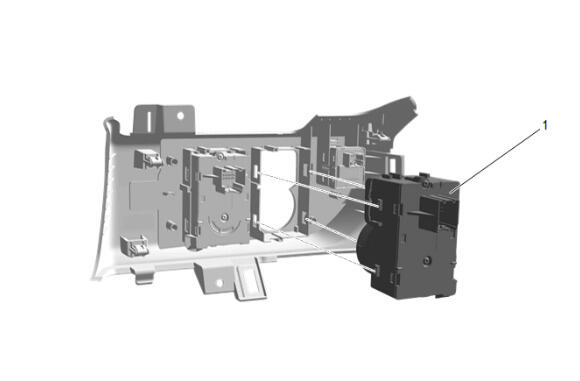

Ride Control Switch (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

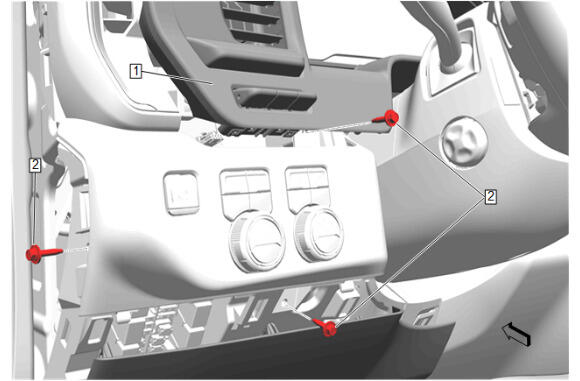

Instrument Panel Switch Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Switch Trim Plate Bolt (2) - Install and tighten [3x] - Fastener Specifications

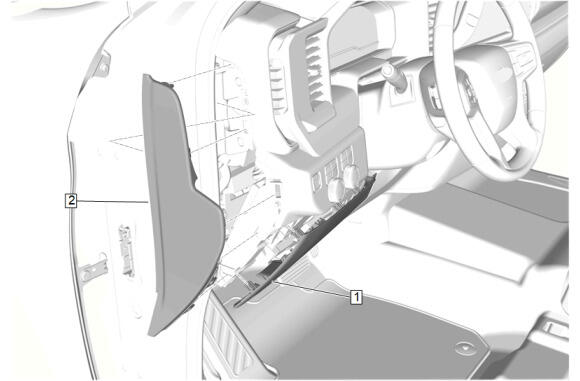

Instrument Panel Cluster Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Line up flange around the front side door weatherstrip

Instrument Panel Outer Trim Cover (2) - Install

WARNING:

When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

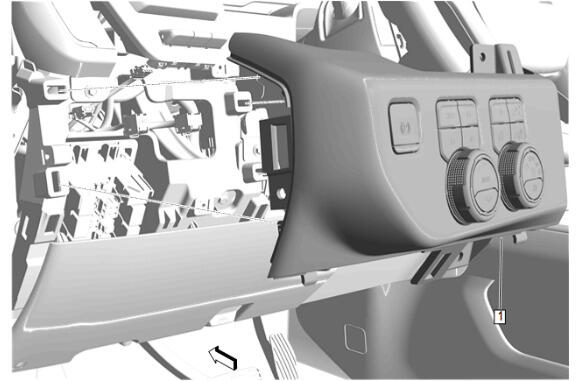

Instrument Panel Knee Bolster (1) - Install
