Installation Procedure

Install the power steering control module wiring power harness.
Courtesy of GENERAL MOTORS COMPANY

Install the power steering control module wiring power harness clip (2) to the electric belt drive rack and pinion steering gear housing.
Connect the power steering control module wiring power harness (1) to the power steering assist motor.
Courtesy of GENERAL MOTORS COMPANY

Connect the power steering control module wiring power harness (2) to the main power steering wiring harness (1).
Courtesy of GENERAL MOTORS COMPANY

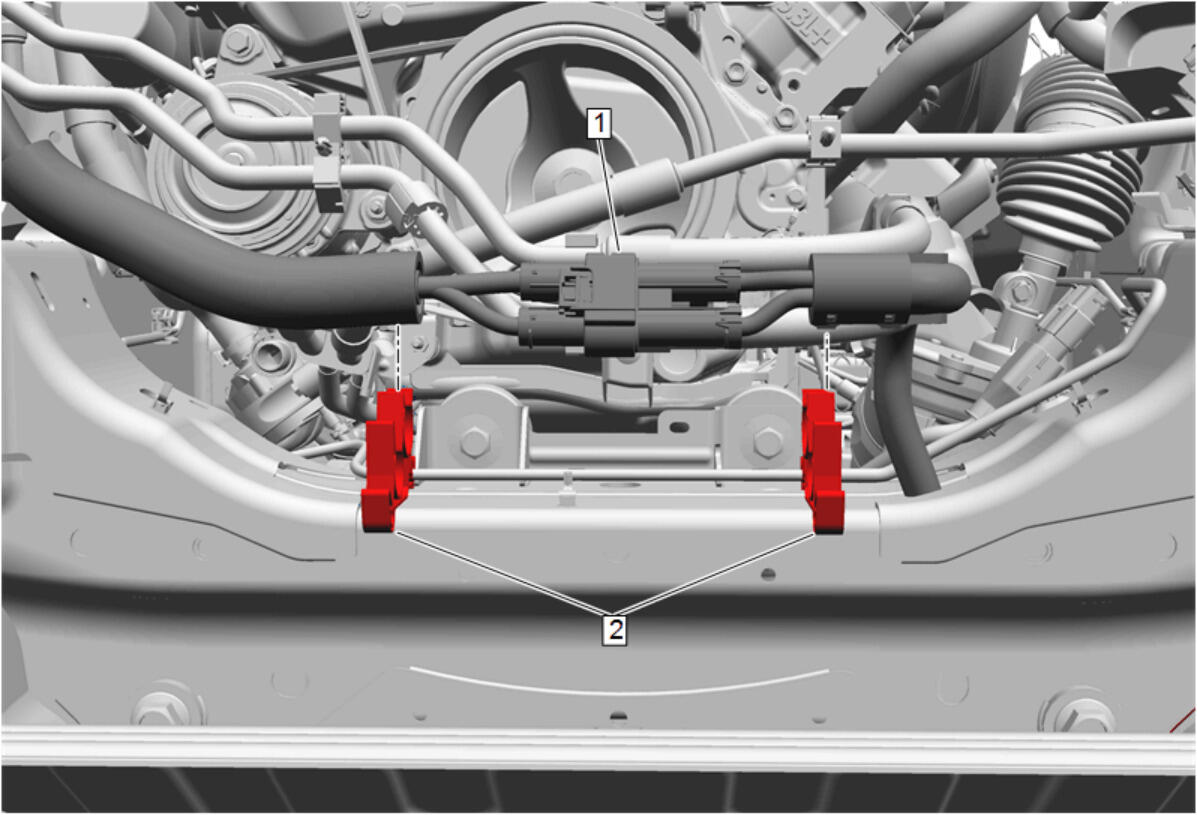

Position the power steering control module wiring power harness (1) into the 2 retaining clips (2).
Courtesy of GENERAL MOTORS COMPANY

{without NZZ} Install the steering gear skid shield:
1. Steering Gear Skid Shield (2) - Install
2. Steering Gear Skid Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{with NZZ} Install the underbody skid shield:
1. Underbody Skid Shield (2) - Install
2. Underbody Skid Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Underbody Splash Shield (2) - Install - Underbody Splash Shield Replacement (High Country) , or Underbody Splash Shield Replacement (ZR2) , or Underbody Splash Shield Replacement (Trail Boss) , or Underbody Splash Shield Replacement (ULV)
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Retainer Clip (1) - Install
Remove the supports and lower the vehicle.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (-KL9) , or Battery Negative Cable Disconnection and Connection (KL9)
