Fastener Specifications

GM5601017Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Accelerator Pedal Nut [2x] - - 9 N.m (80 lb in) Accelerator Pedal Replacement
GM5604845Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly with Mass Airflow Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Air Cleaner Outlet Duct Bracket Bolt - - 9 N.m (80 lb in) Air Cleaner Outlet Duct Replacement
2 Air Cleaner Outlet Duct Clamp [2x] - - 5 N.m (44 lb in) Air Cleaner Outlet Duct Replacement
3 Air Cleaner Upper Housing Bolt [3x] - - 4 N.m (35 lb in) Air Cleaner Element Replacement
4 Mass Airflow Sensor Bolt [2x] - - 0.9 N.m (8 lb in) Mass Airflow Sensor Replacement
5 Air Cleaner Nut - - 9 N.m (80 lb in) Air Cleaner Assembly Replacement
GM5605272Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Actuator Magnet and Camshaft Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Camshaft Position Actuator Magnet Bolt [3x] - - 10 N.m (89 lb in) Camshaft Position Actuator Magnet Replacement
2 Camshaft Position Actuator Magnet Gasket Yes - - Camshaft Position Actuator Magnet Replacement
3 Camshaft Position Sensor Bracket Bolt [2x] - - 10 N.m (89 lb in) Camshaft Position Sensor Replacement
4 Camshaft Position Sensor Seal Yes - - Camshaft Position Sensor Replacement
GM5605410Courtesy of GENERAL MOTORS COMPANY
Crankshaft Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Crankshaft Position Sensor Bolt - - 25 N.m (18 lb ft) Crankshaft Position Sensor Replacement (- ULV) , or Crankshaft Position Sensor Replacement (ULV)
GM5605569Courtesy of GENERAL MOTORS COMPANY
Engine Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Control Module Bracket Bolt [3x] - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement
GM5607581Courtesy of GENERAL MOTORS COMPANY
Engine Oil Pressure and Temperature Sensor and Knock Sensor 1

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Knock Sensor Shield Bolt - - 25 N.m (18 lb ft) Knock Sensor 1 Replacement
2 Knock Sensor Bolt - - 25 N.m (18 lb ft) Knock Sensor 1 Replacement
3 Engine Oil Pressure and Temperature Sensor - - 35 N.m (26 lb ft) Engine Oil Pressure and Temperature Sensor Replacement

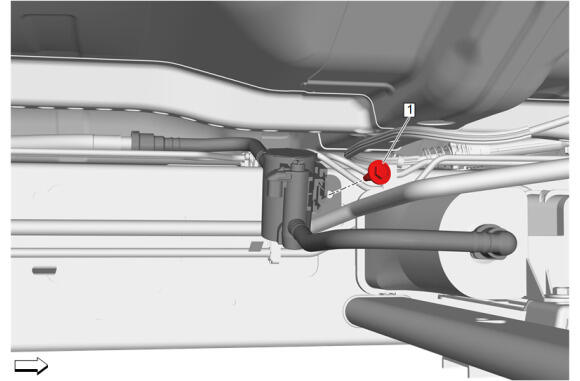

GM5812797Courtesy of GENERAL MOTORS COMPANY
Evaporative Emission Canister Solenoid

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Evaporative Emission Canister Bracket Bolt - - 22 N.m (16 lb ft) Evaporative Emission Canister Vent Solenoid Valve Replacement

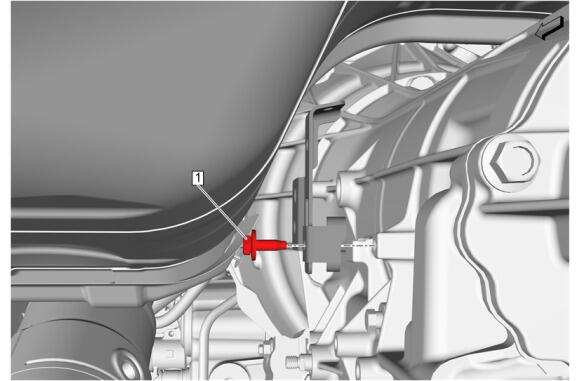

GM5659513Courtesy of GENERAL MOTORS COMPANY
Fuel Feed and Return Front Hose Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed and Return Front Hose Bracket Bolt - - 9 N.m (80 lb in) Fuel Feed and Return Front Hose Bracket Replacement (- ULV) , or Fuel Feed and Return Front Hose Bracket Replacement (ULV)
GM5619599Courtesy of GENERAL MOTORS COMPANY
Fuel Feed and Return Front Pipe

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed and Evaporative Emission and Return Pipe Clip Bracket Bolt - - 22 N.m (16 lb ft) Fuel Feed Pipe Replacement - Underbody (Long Bed) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Short Bed) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Long Bed E85) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Short Bed E85) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Short Bed) (ULV)
GM5619600Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe - Engine

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed Pipe Bolt - - 10 N.m (89 lb in) Fuel Feed Pipe Replacement - Engine (L84) , or Fuel Feed Pipe Replacement - Engine (L87)

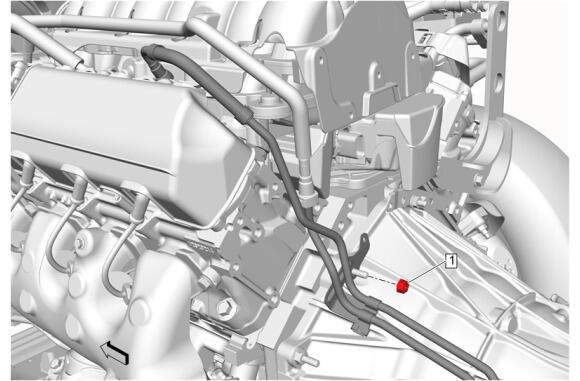

GM5788556Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe - Underbody

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed and Return Front Hose Bracket Nut - - 9 N.m (80 lb in) Fuel Feed Pipe Replacement - Underbody (Long Bed) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Short Bed) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Long Bed E85) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Short Bed E85) (- ULV) , or Fuel Feed Pipe Replacement - Underbody (Short Bed) (ULV)
Fig 1: Exploded View Of Fuel Rail And Fuel Injector Components And Fasteners
GM5607947Courtesy of GENERAL MOTORS COMPANY
Fuel Rail and Fuel Injector Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Injection Fuel Rail Bolt [8x] - - 25 N.m (18 lb ft) Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L87) , or Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L84)
2 Fuel Feed Intermediate Pipe Nut [2x] - - 30 N.m (22 lb ft) Fuel Feed Intermediate Pipe Replacement - Position 1 (L84) , or Fuel Feed Intermediate Pipe Replacement - Position 1 (L87)
3 Fuel Feed Pipe Bolt - - 10 N.m (89 lb in) Fuel Feed Intermediate Pipe Replacement - Position 2 (L84) , or Fuel Feed Intermediate Pipe Replacement - Position 2 (L87)
4 Fuel Feed Intermediate Pipe Nut [2x] - - 30 N.m (22 lb ft) Fuel Feed Intermediate Pipe Replacement - Position 2 (L84) , or Fuel Feed Intermediate Pipe Replacement - Position 2 (L87)
5 Fuel Feed Intermediate Pipe Yes - - Fuel Feed Intermediate Pipe Replacement - Position 2 (L84) , or Fuel Feed Intermediate Pipe Replacement - Position 2 (L87)
6 Fuel Feed Intermediate Pipe Yes - - Fuel Feed Intermediate Pipe Replacement - Position 1 (L84) , or Fuel Feed Intermediate Pipe Replacement - Position 1 (L87)
7 Fuel Pump Bolt [2x] - - 25 N.m (18 lb ft) Fuel Pump Replacement (L84) , or Fuel Pump Replacement (L87)
8 Fuel Pump Bracket Gasket Yes - - Fuel Pump Replacement (L84) , or Fuel Pump Replacement (L87)
9 Fuel Rail Pressure Sensor - - 32.5 N.m (24 lb ft) Fuel Rail Pressure Sensor Replacement (L84) , or Fuel Rail Pressure Sensor Replacement (L87)
10 Direct Fuel Injector Hold Down Clamp [8x] - - - Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L87) , or Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L84)
11 Fuel Injection Fuel Rail Seal [8x] Yes - - Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L87) , or Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L84)
12 Fuel Injector Nozzle Housing Seal [16x] Yes - - Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L87) , or Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L84)
13 Fuel Injector Seal [8x] Yes - - Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L87) , or Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (L84)

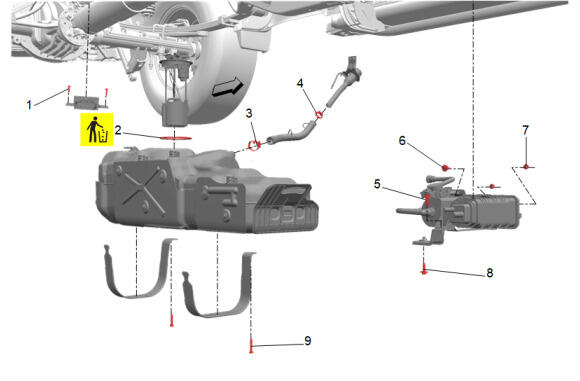

Fig 2: Exploded View Of Fuel Tank And Evaporative Emission Canister Components And Fasteners
GM5659296Courtesy of GENERAL MOTORS COMPANY
Fuel Tank and Evaporative Emission Canister Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Pump Power Control Module Bolt [2x] - - 9 N.m (80 lb in) Fuel Pump Power Control Module Replacement
2 Fuel Sender Seal Yes - - Fuel Tank Fuel Pump Module Replacement (Long Bed) (- ULV) , or Fuel Tank Fuel Pump Module Replacement (Short Bed) (- ULV) , or Fuel Tank Fuel Pump Module Replacement (Short Bed) (ULV)
3 Fuel Tank Filler Hose Clamp - - 3.5 N.m (31 lb in) Fuel Tank Filler Hose Replacement (Long Bed) , or Fuel Tank Filler Hose Replacement (Short Bed)
4 Fuel Tank Filler Hose Clamp - - 3.5 N.m (31 lb in) Fuel Tank Filler Hose Replacement (Long Bed) , or Fuel Tank Filler Hose Replacement (Short Bed)
5 Evaporative Emission Canister Bolt - - 15 N.m (11 lb ft) Evaporative Emission Canister Replacement (- ULV) , or Evaporative Emission Canister Replacement (ULV)
6 Evaporative Emission Canister Vent Solenoid Valve Bracket Bolt - - 22 N.m (16 lb ft) Evaporative Emission Canister Vent Solenoid Valve Replacement
7 Evaporative Emission Canister Bracket Nut [2x] - - 9 N.m (80 lb in) Evaporative Emission Canister Replacement (- ULV) , or Evaporative Emission Canister Replacement (ULV)
8 Evaporative Emission Canister Bracket Bolt - - 22 N.m (16 lb ft) Evaporative Emission Canister Replacement (- ULV) , or Evaporative Emission Canister Replacement (ULV)
9 Fuel Tank Strap Bolt [2x] - - 22 N.m (16 lb ft) Fuel Tank Replacement (Long Bed) (- ULV) , or Fuel Tank Replacement (Short Bed) (- ULV) , or Fuel Tank Replacement (Short Bed) (ULV)

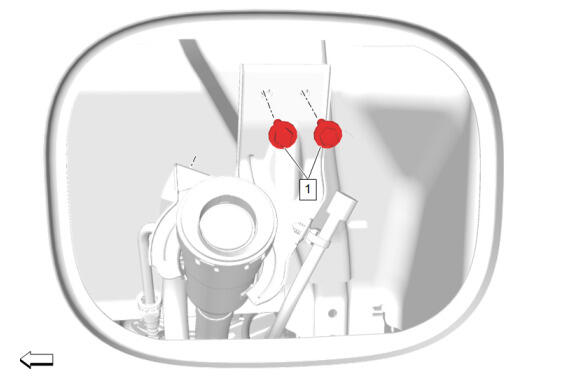

GM5659564Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Pipe Housing

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Tank Filler Pipe Ground Bolt [2x] - - 9 N.m (80 lb in) Fuel Tank Filler Pipe Replacement (Long Bed) , or Fuel Tank Filler Pipe Replacement (Short Bed)

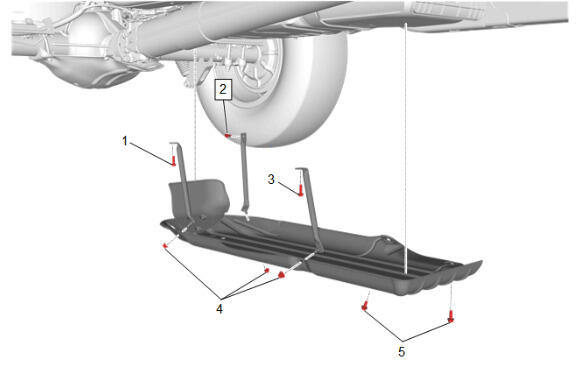

GM6127541Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Shield (ULV)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Tank Front Shield Bolt - - 22 N.m (16 lb ft) Fuel Tank Shield Reinforcement Replacement - Rear Right Side (ULV)
2 Fuel Tank Front Shield Bolt - - 22 N.m (16 lb ft) Fuel Tank Shield Reinforcement Replacement - Rear Left Side (ULV)
3 Fuel Tank Front Shield Bolt - - 22 N.m (16 lb ft) Fuel Tank Shield Reinforcement Replacement - Front (ULV)
4 Fuel Tank Protector Nut [3x] - - 25 N.m (18 lb ft) Fuel Tank Shield Replacement (ULV)
5 Fuel Tank Front Shield Bolt [2x] - - 58 N.m (43 lb ft) Fuel Tank Shield Replacement (ULV)
GM5605775Courtesy of GENERAL MOTORS COMPANY
Heated Oxygen Sensor - Bank 2 Sensor 1

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 2 Sensor 1
GM5607820Courtesy of GENERAL MOTORS COMPANY
Heated Oxygen Sensors and Knock Sensor 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 1 Sensor 1
2 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 1 Sensor 2
3 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 2 Sensor 2
4 Knock Sensor Bolt - - 25 N.m (18 lb ft) Knock Sensor 2 Replacement
GM5605769Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor and Engine Coolant Temperature Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Manifold Absolute Pressure Sensor Bolt - - 4.5 N.m (40 lb in) Manifold Absolute Pressure Sensor Replacement
2 Evaporative Emission Canister Purge Solenoid Valve Bolt - - 10 N.m (89 lb in) Evaporative Emission Canister Purge Solenoid Valve Replacement
3 Engine Coolant Temperature Sensor - - 30 N.m (22 lb ft) Engine Coolant Temperature Sensor Replacement
GM5608058Courtesy of GENERAL MOTORS COMPANY
Throttle Body and Ignition Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Ignition Coil Bolt [16x] - - 10 N.m (89 lb in) Ignition Coil Replacement - Right Side
2 Gas Engine Ignition Spark Plug [8x] - - 20 N.m (15 lb ft) Gas Engine Ignition Spark Plug Replacement - Right Side
3 Throttle Body Gasket Yes - - Throttle Body Assembly Replacement
4 Throttle Body Bolt [4x] - - 10 N.m (89 lb in) Throttle Body Assembly Replacement
