Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

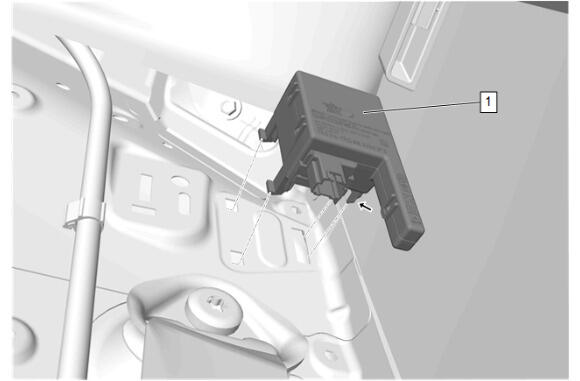

Remote Function Actuator Module (1) - Install
Secure the retaining tabs.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

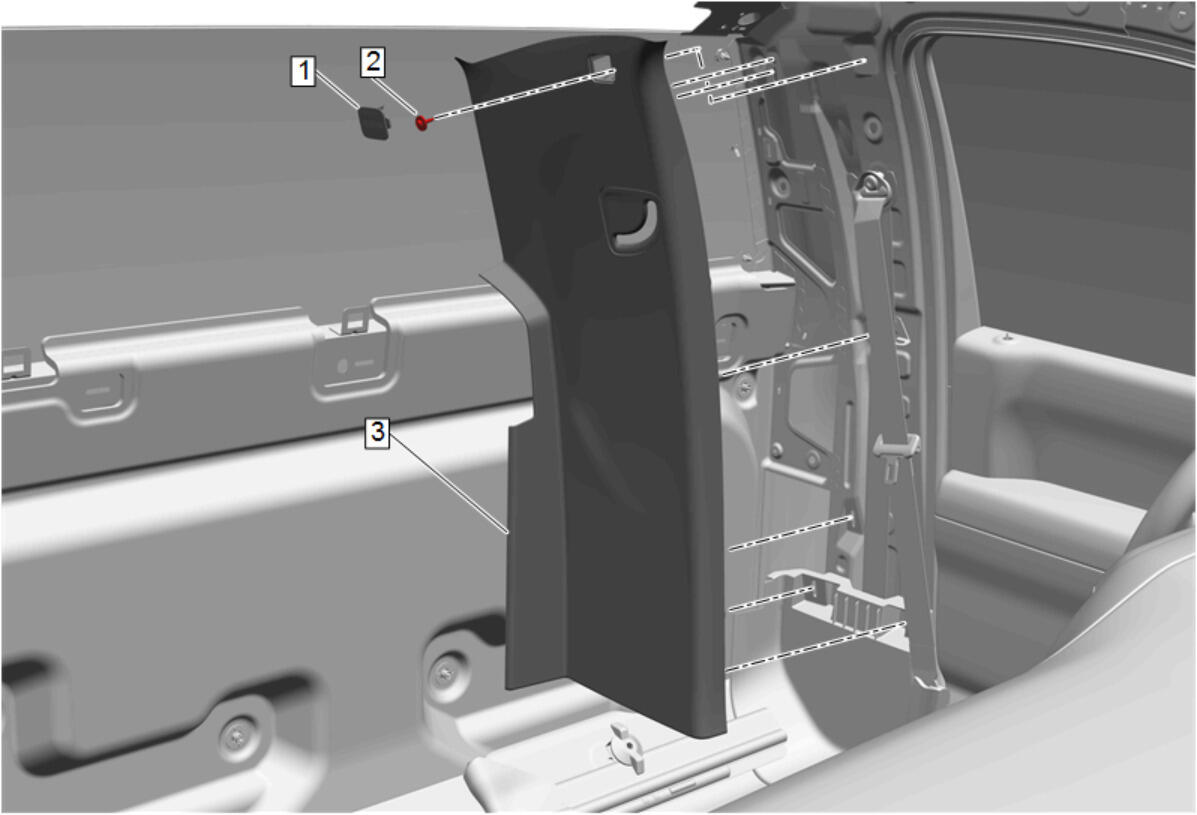

Body Lock Pillar Garnish Molding - Right Side (3) - Install

CAUTION:

Body Lock Pillar Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
Center Pillar Upper Trim Panel Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

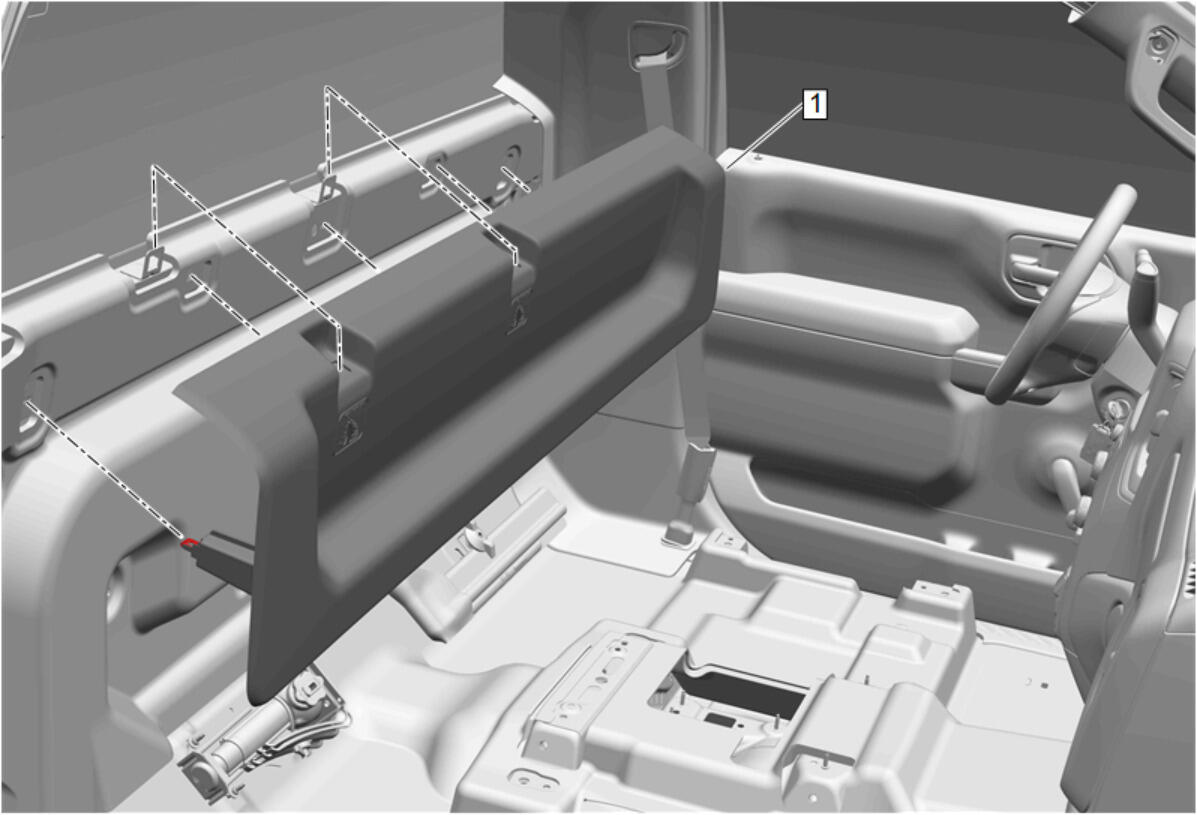

Rear Window Lower Garnish Molding (1) - Install
Return the seat to its original position.
Enable the SIR System. SIR Disabling and Enabling
