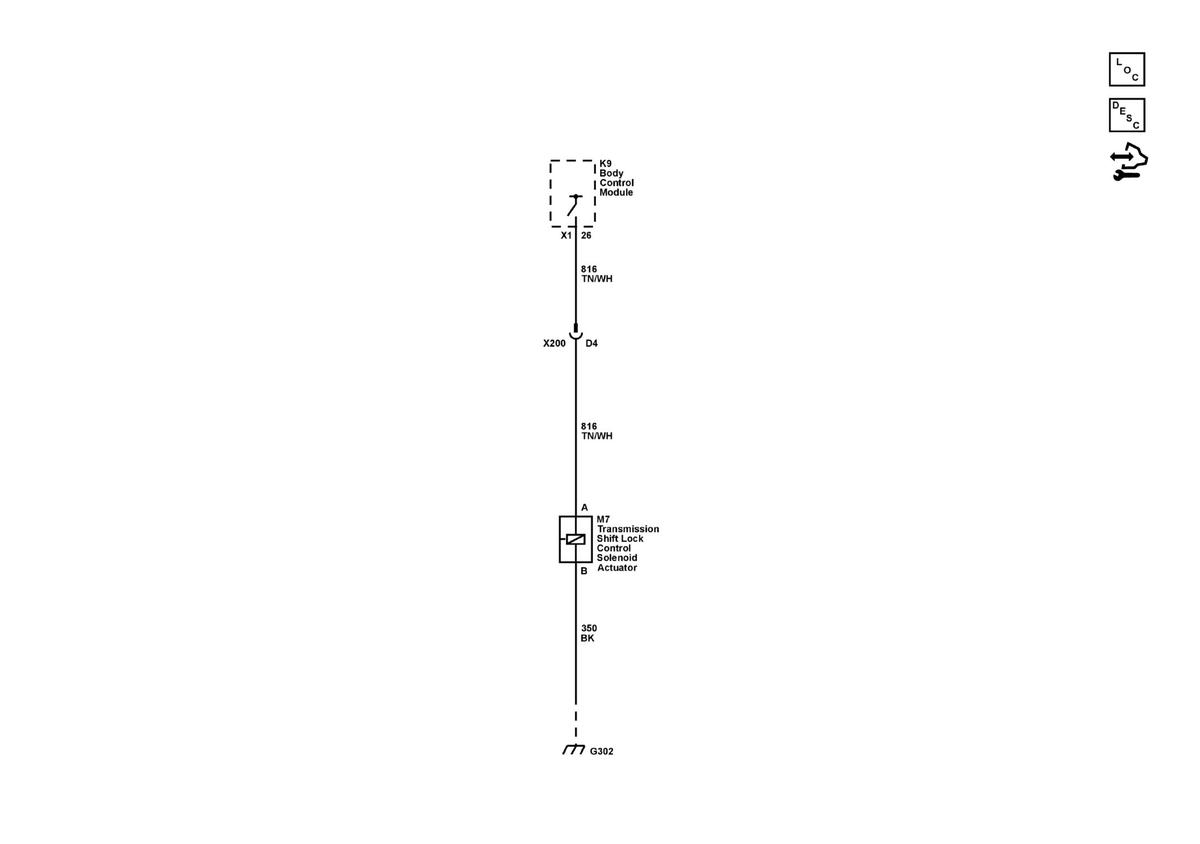

Home >> Chevrolet >> 2023 >> Express 3500 Base, Van Cargo Extended, 6.6L Eng VIN 7 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control
