Manifold Absolute Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

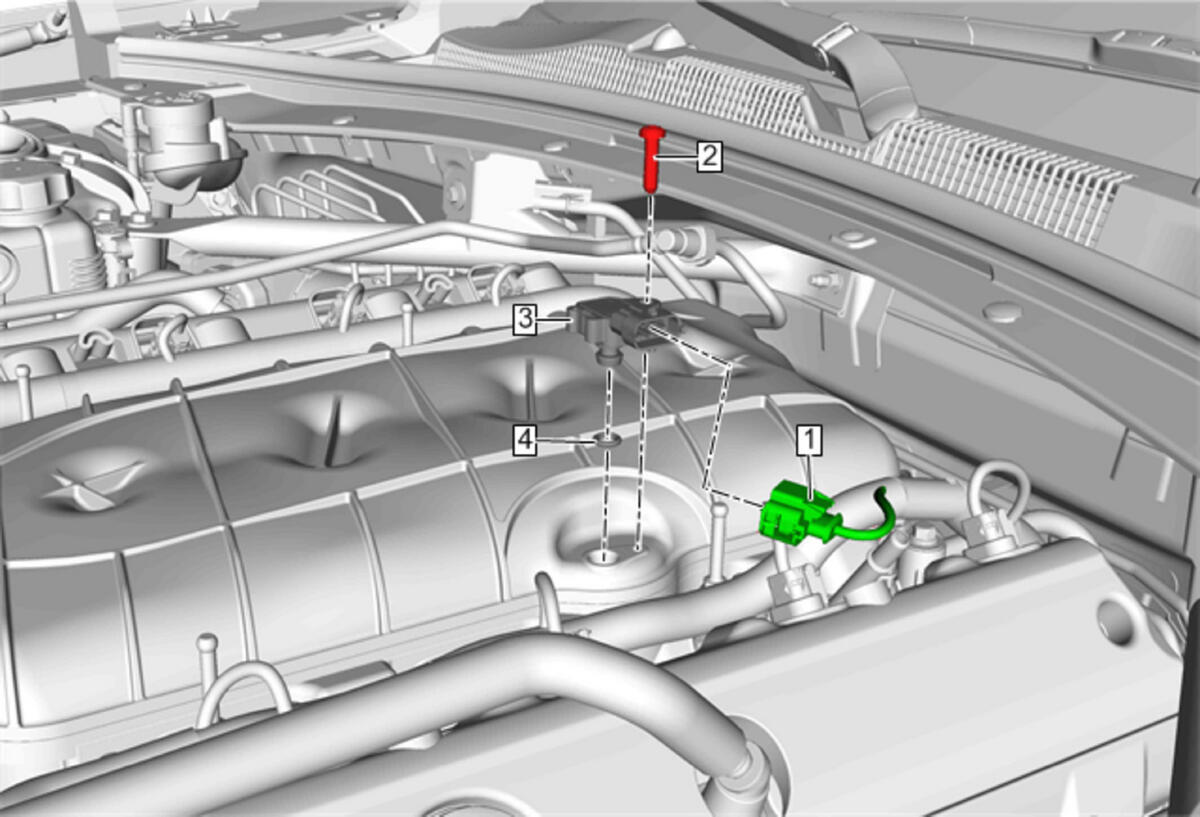

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Upper Intake Manifold Cover Replacement
1	Electrical Connector
2	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  5 N.m (44 lb in)
3	Manifold Absolute Pressure Sensor
4	Manifold Absolute Pressure Sensor Seal NOTE: Inspect the O-ring and replace if necessary.
