Knock Sensor 2 Replacement
NOTE:

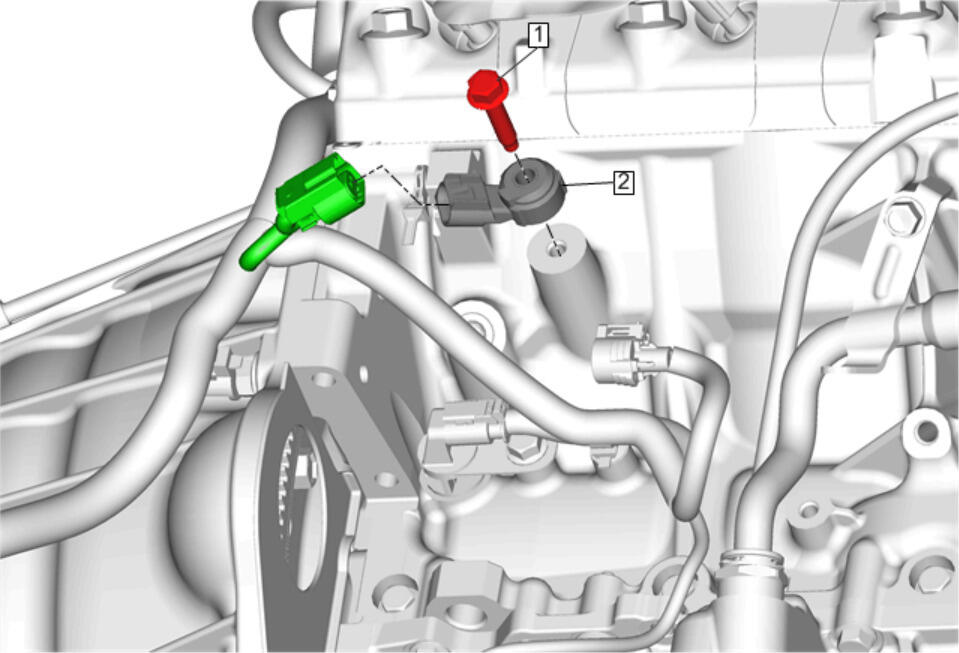

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Starter Replacement (LT1, LT4) . |
|
| 1 | Knock Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Knock Sensor Procedure Disconnect the electrical wiring harness connector from the knock sensor. |
