Installation Procedure

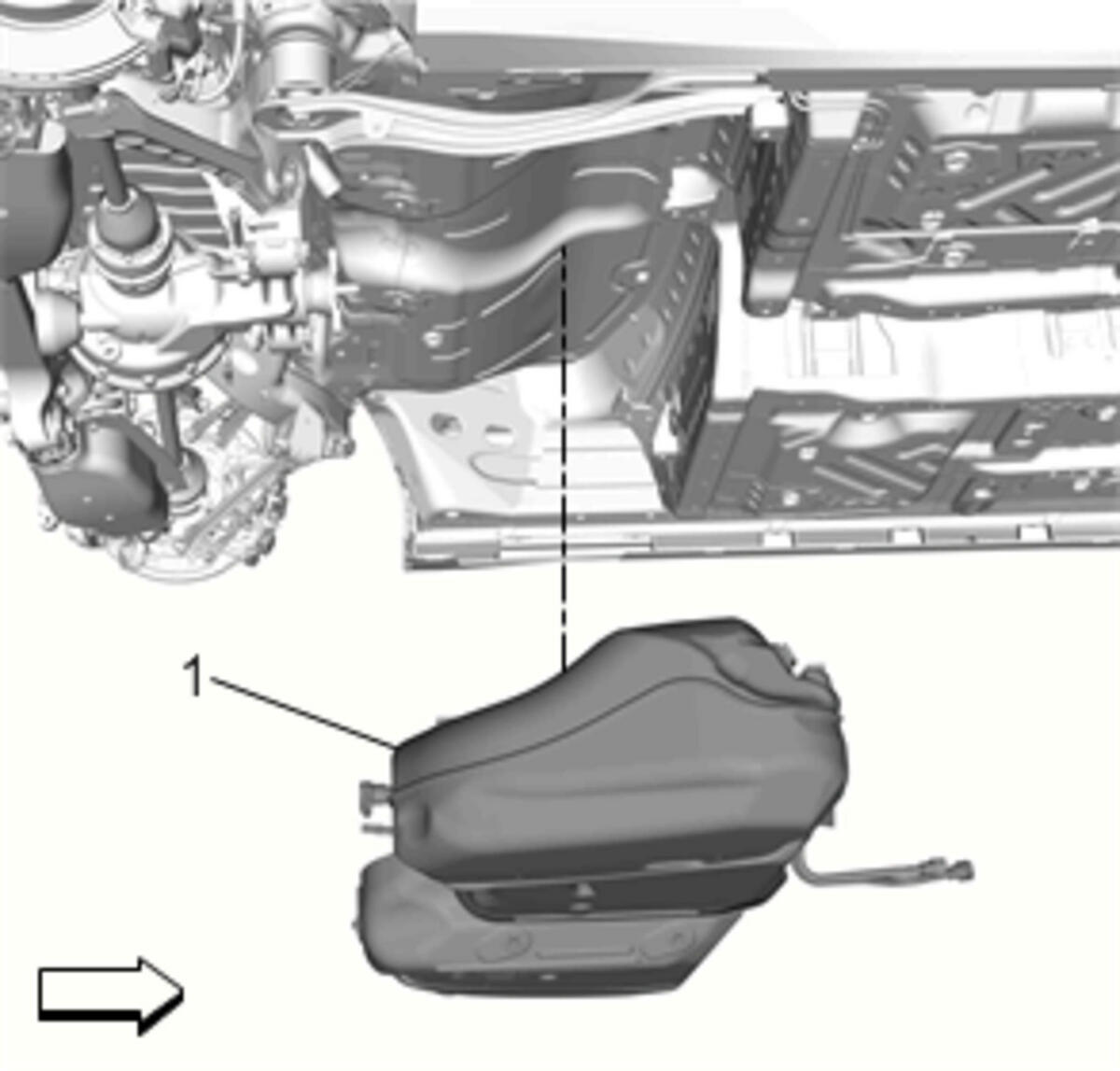

  1. GM4183662Courtesy of GENERAL MOTORS COMPANY

    Support the fuel tank with a suitable jack.

  2. Fuel Tank (1) - Install

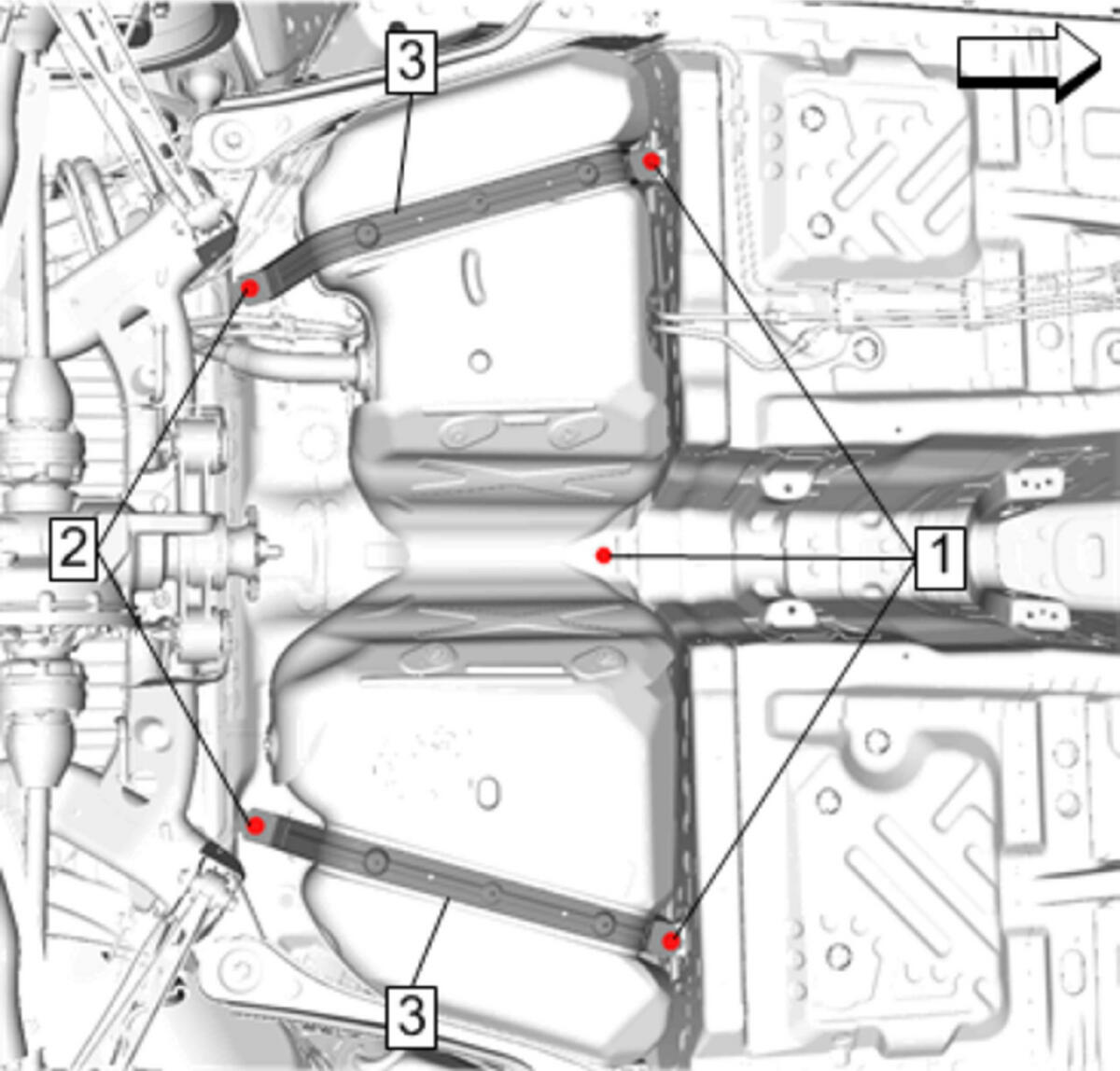

  3. GM4295664Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (3) - Install [2x]

    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Strap Bolt (2) - Install [2x] 27 N.m (20 lb ft)
  5. Fuel Tank Strap Bolt (1) - Install [3x] 22 N.m (16 lb ft)

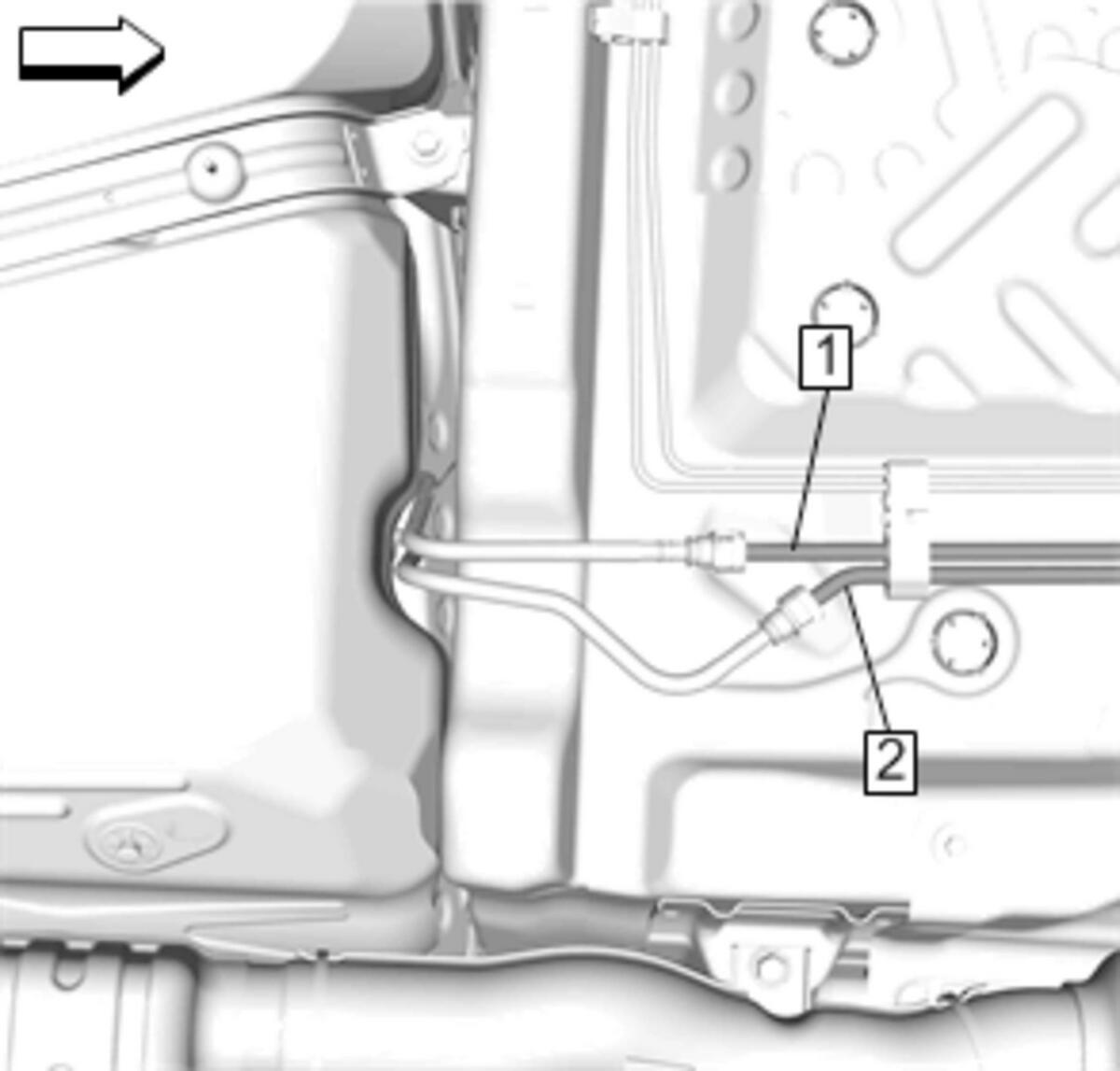

  6. GM4182877Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (2) Connect - Plastic Collar Quick Connect Fitting Service

  7. Fuel Feed Pipe (1) Connect - Plastic Collar Quick Connect Fitting Service

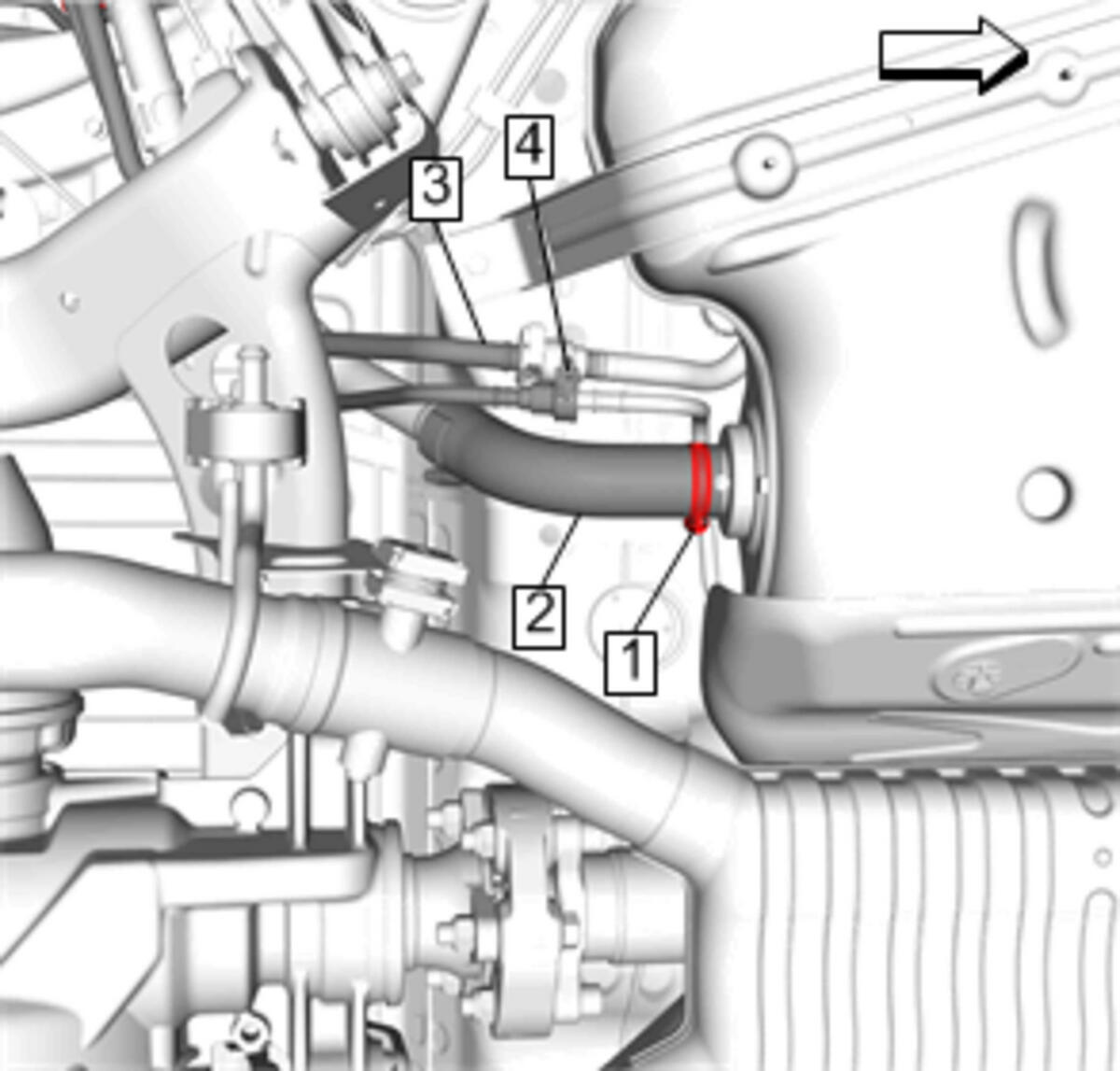

  8. GM4182848Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  9. Evaporative Emission Canister Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
  10. Fuel Tank Filler Hose (2) - Install
  11. Fuel Tank Filler Hose Clamp (1) - Install 3.5 N.m (31 lb in)

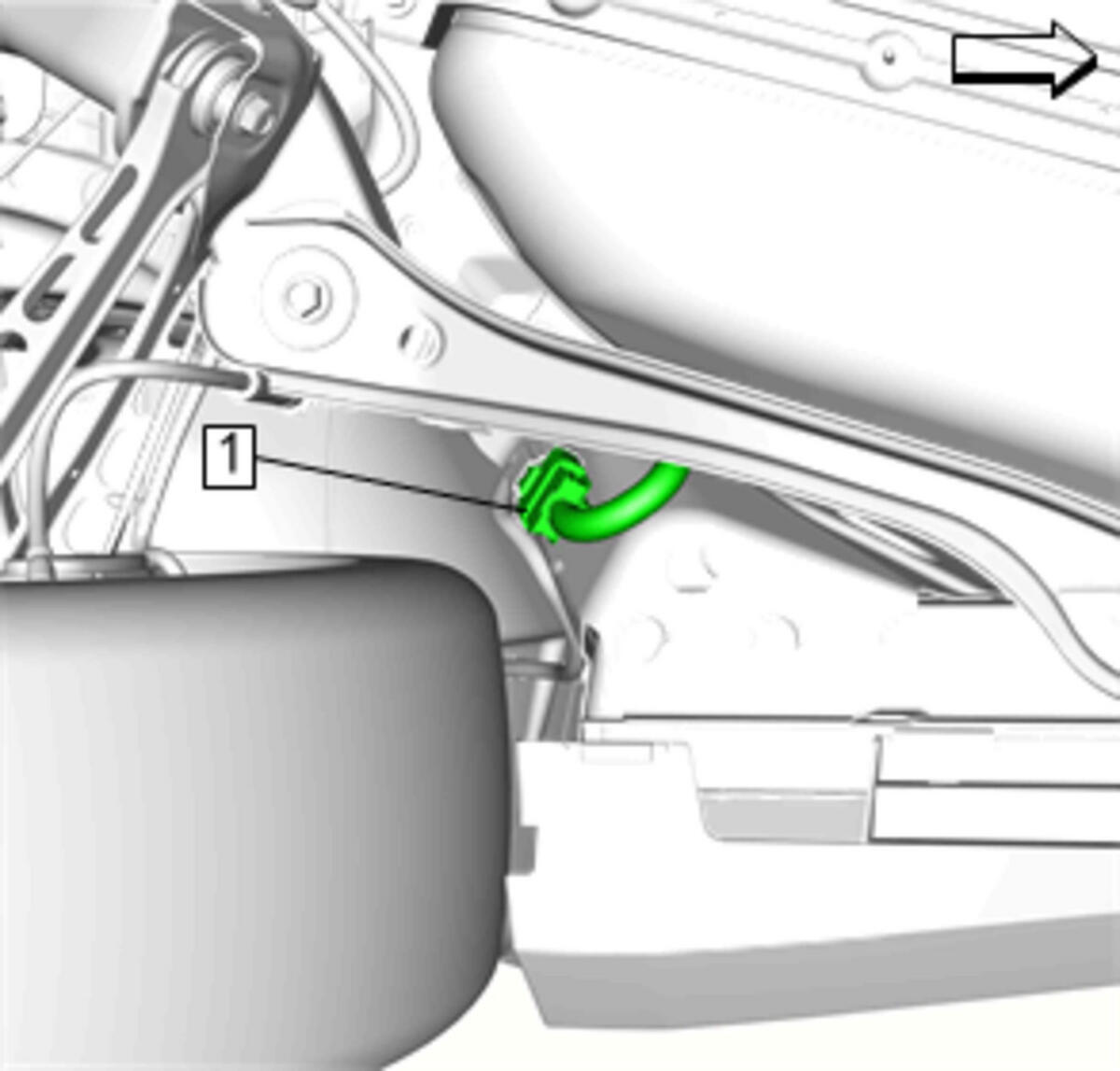

  12. GM4180643Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  13. Transmission Fluid Cooler Pipe- Mid Line Left and Mid Line Right - Install - Transmission Fluid Cooler Pipe Replacement (LT4 With MGL or MH3 or MJK and KNR, LT1 With MF6 or MGL or M5U or MM6, With KNR, ATOC Jumper) , or Transmission Fluid Cooler Pipe Replacement (LT4 With MJK or MH3 and KNR, LT1 With MM6, With KNR, Front Jumper Left) , or Transmission Fluid Cooler Pipe Replacement (LT4 With MJK and KNR, LT1 With MM6, With KNR, Mid Line Left) , or Transmission Fluid Cooler Pipe Replacement (LT4 With MJK and KNR, LT1 With MM6, With KNR, Mid Line Right) , or Transmission Fluid Cooler Pipe Replacement (LT4 With MGL or MJK or MH3 and KNR, LT1 With MF6 or MGL or M5U or MM6, With KNR, Rear Differential Inlet Hose) , or Transmission Fluid Cooler Pipe Replacement (LT4 With MGL or MJK or MH3 and KNR, LT1 With MF6 or MGL or M5U or MM6, With KNR, Rear Differential Outlet Hose) , or Transmission Fluid Cooler Pipe Replacement (LT1 With M5U, With KNR, Mid Line Left) , or Transmission Fluid Cooler Pipe Replacement (LT1 With M5U, With KNR, Mid Line Right) , or Transmission Fluid Cooler Pipe Replacement (LT4 With MGL or MH3 With KNR, LT1 With MF6 and KNR Mid Line Left) , or Transmission Fluid Cooler Pipe Replacement (LT4 With MGL or MH3 With KNR, LT1 With MF6 and KNR Mid Line Right)
  14. Install the left front rear suspension bracket. Rear Suspension Bracket Replacement (Rear (Coupe)) , or Rear Suspension Bracket Replacement (Front) , or Rear Suspension Bracket Replacement (Rear (Convertible))
  15. Two-Piece Propeller Shaft - Install - Two-Piece Propeller Shaft Replacement (Coupe with LT1, LT4 and MH3, MJK, MM6) , or Two-Piece Propeller Shaft Replacement (Convertible with LT1, LT4 and MH3, MJK, MM6) , or Two-Piece Propeller Shaft Replacement (Coupe with LT1, LT4 and MI2, MI4) , or Two-Piece Propeller Shaft Replacement (Convertible with LT1, LT4 and MI2, MI4)
  16. Refill the fuel tank.
  17. Inspect for fuel leaks.
