Single Use Fasteners and Components
- Catalytic Converter Clamp
- Exhaust System Seal@Catalytic Converter
- Rear Suspension Cradle Front Bolt
- Transmission Fluid Cooler Pipe Connector Retainer [2x]
NOTE:

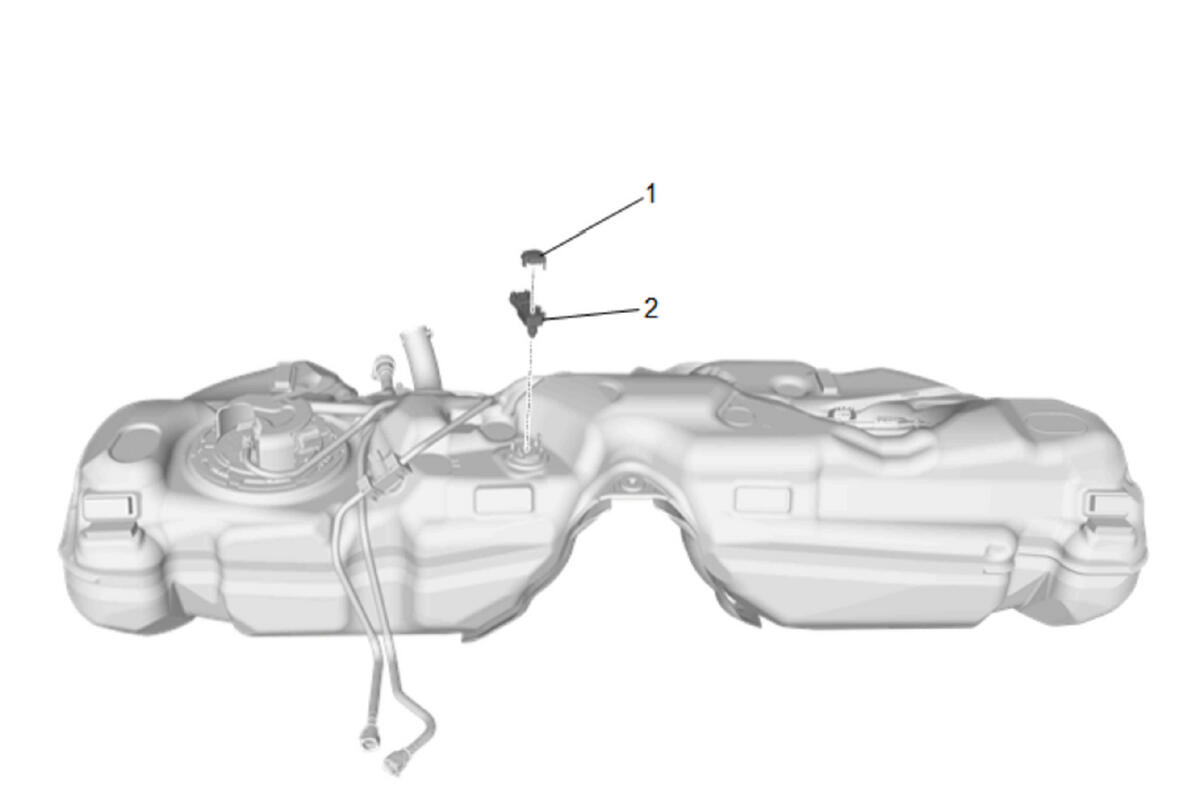

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement Refer to Safety Glasses Warning . |
|
| 1 | Fuel Tank Pressure Sensor Cover |
| 2 | Fuel Tank Pressure Sensor Procedure Disconnect the electrical connector. |
