Installation Procedure

  1. GM4179562Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) - Install a NEW seal.

  2. Fuel Tank Fuel Pump Module (1) - Install

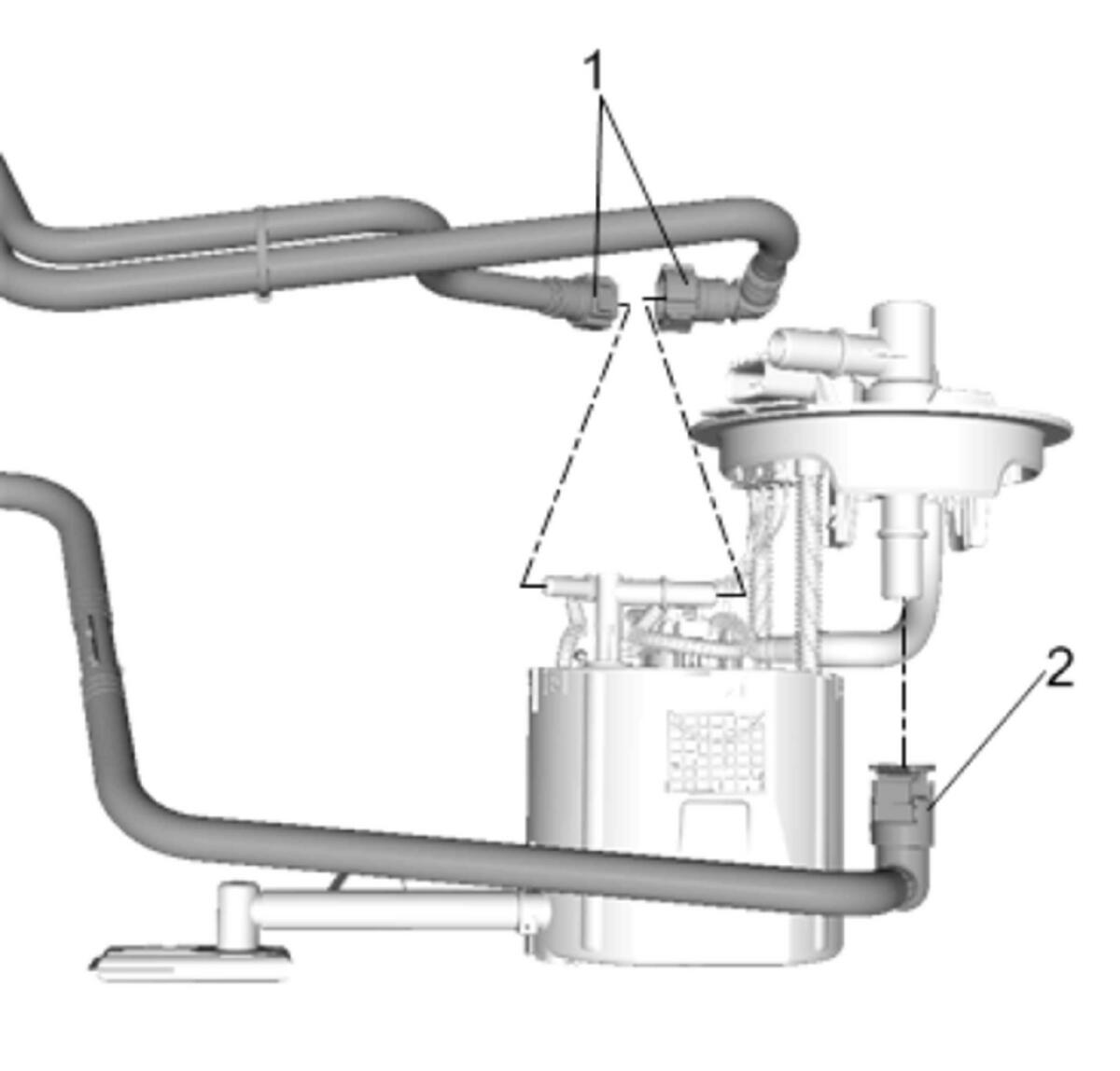

  3. GM4665474Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  4. Transfer Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  5. GM4179557Courtesy of GENERAL MOTORS COMPANY

    Use the CH 45722  wrench by turning clockwise and install the lock ring (1).

  6. Fuel Pump Fuel Feed Hose Replacement  - Install
  7. Fuel Tank Vent Valve Hose Replacement (At Tank) , or Fuel Tank Vent Valve Hose Replacement (Fuel Tank Fuel Pump Module)  @ Fuel Tank Fuel Pump Module - Install
  8. Connect the electrical connector.
  9. Fuel Tank Replacement  - Install
