Fuel Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

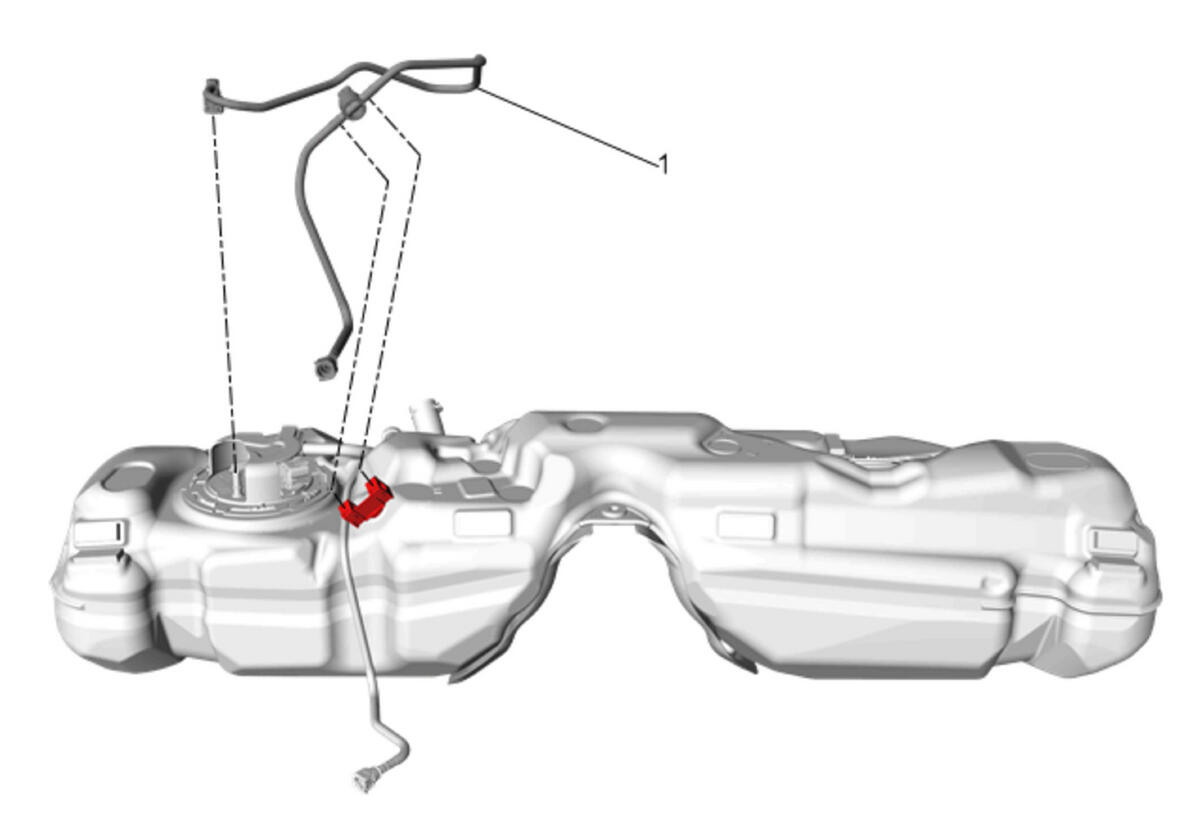

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement .
1	Fuel Pressure Sensor NOTE: Fuel pressure sensor is serviced as part of fuel pump fuel feed hose assembly. Procedure Disconnect the electrical connector. Disconnect the fuel pump fuel feed hose from the fuel tank fuel pump module and remove from retainers. Plastic Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Fuel Tank Replacement .

Fuel Pressure Sensor

NOTE:

Fuel pressure sensor is serviced as part of fuel pump fuel feed hose assembly.

Procedure

Disconnect the electrical connector.
Disconnect the fuel pump fuel feed hose from the fuel tank fuel pump module and remove from retainers. Plastic Collar Quick Connect Fitting Service
