Engine Control Module Bracket Replacement (LT4)

Courtesy of GENERAL MOTORS COMPANY

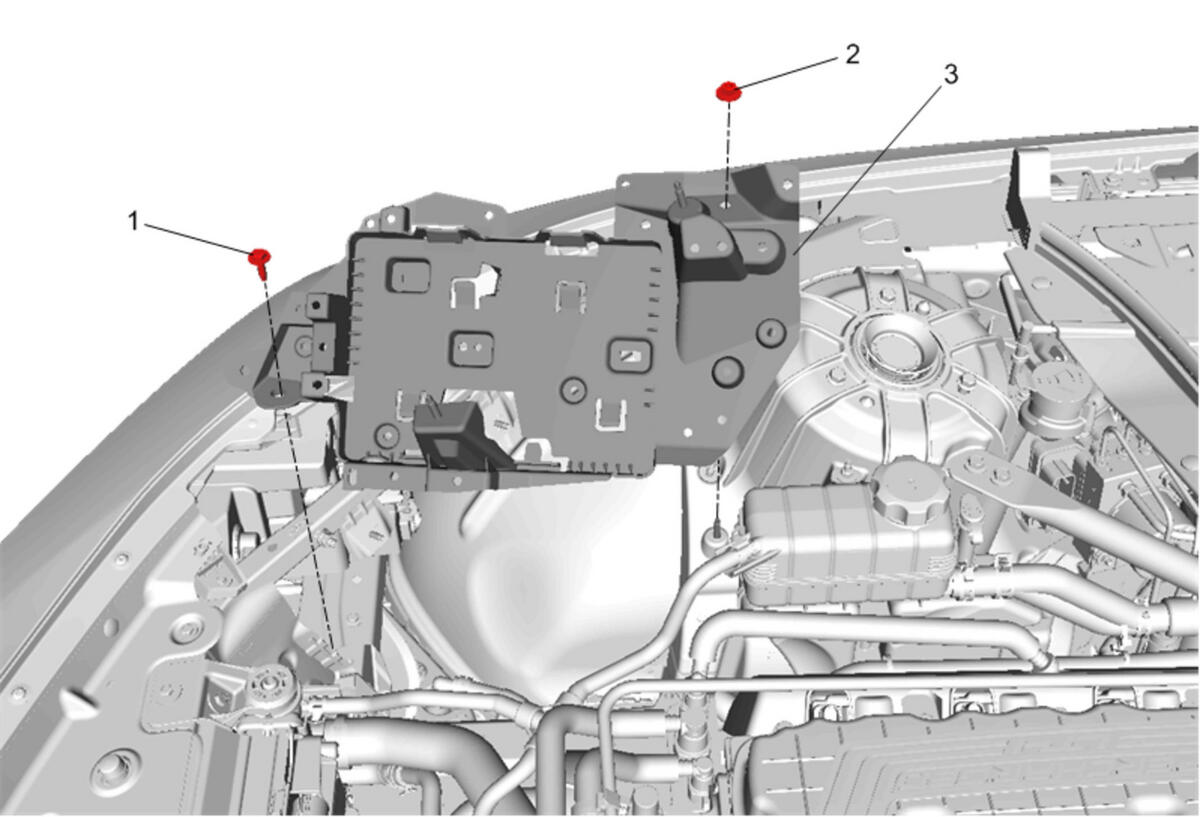

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement (LT4) Front Wheelhouse Liner - Right Side - Remove - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1) Disconnect the wiring harness retainers on top and bottom side of engine control module bracket.
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Engine Control Module Bracket Nut Tighten 4.5 N.m (40 lb in)
3	Engine Control Module Bracket
