Headlamp Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

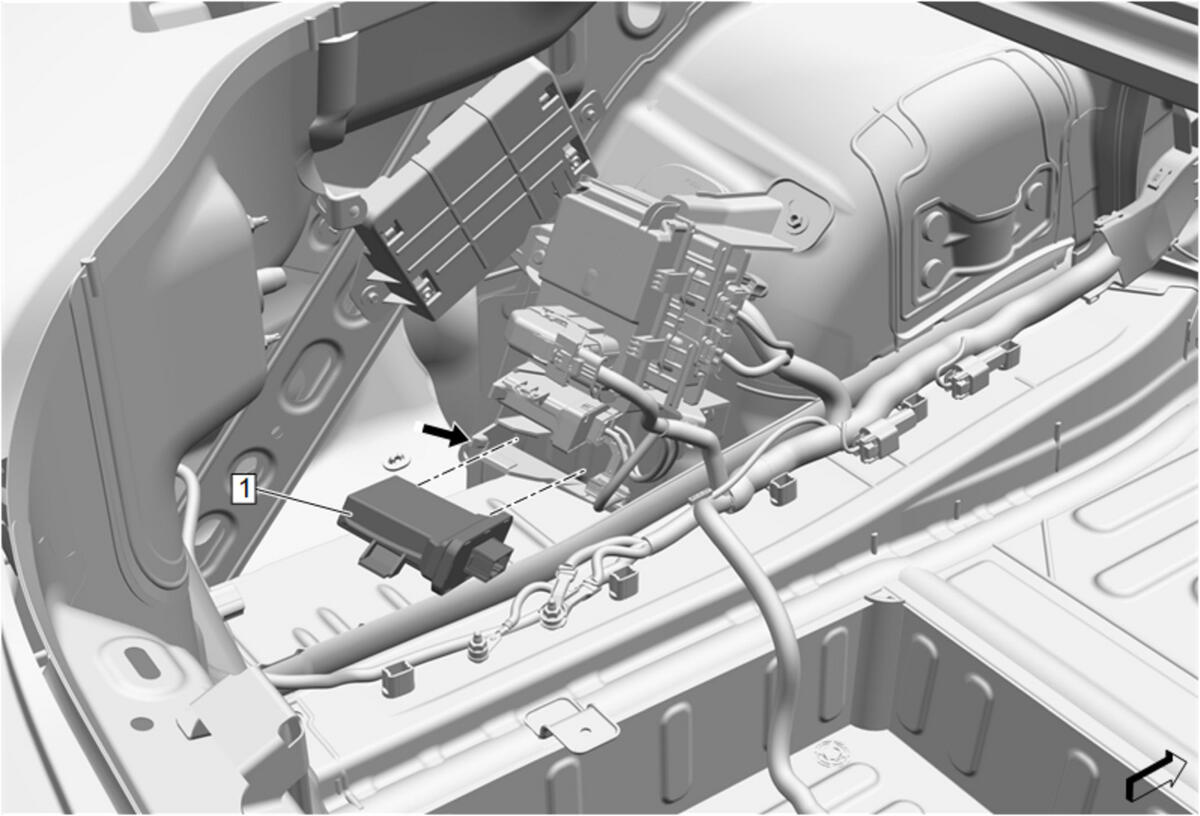

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Left Side (Coupe) , or Rear Compartment Side Trim Replacement - Left Side (Convertible)
1	Headlamp Control Module Procedure Disconnect the electrical connector. Release the retaining tab. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Headlamp Control Module

Procedure
