Installation Procedure

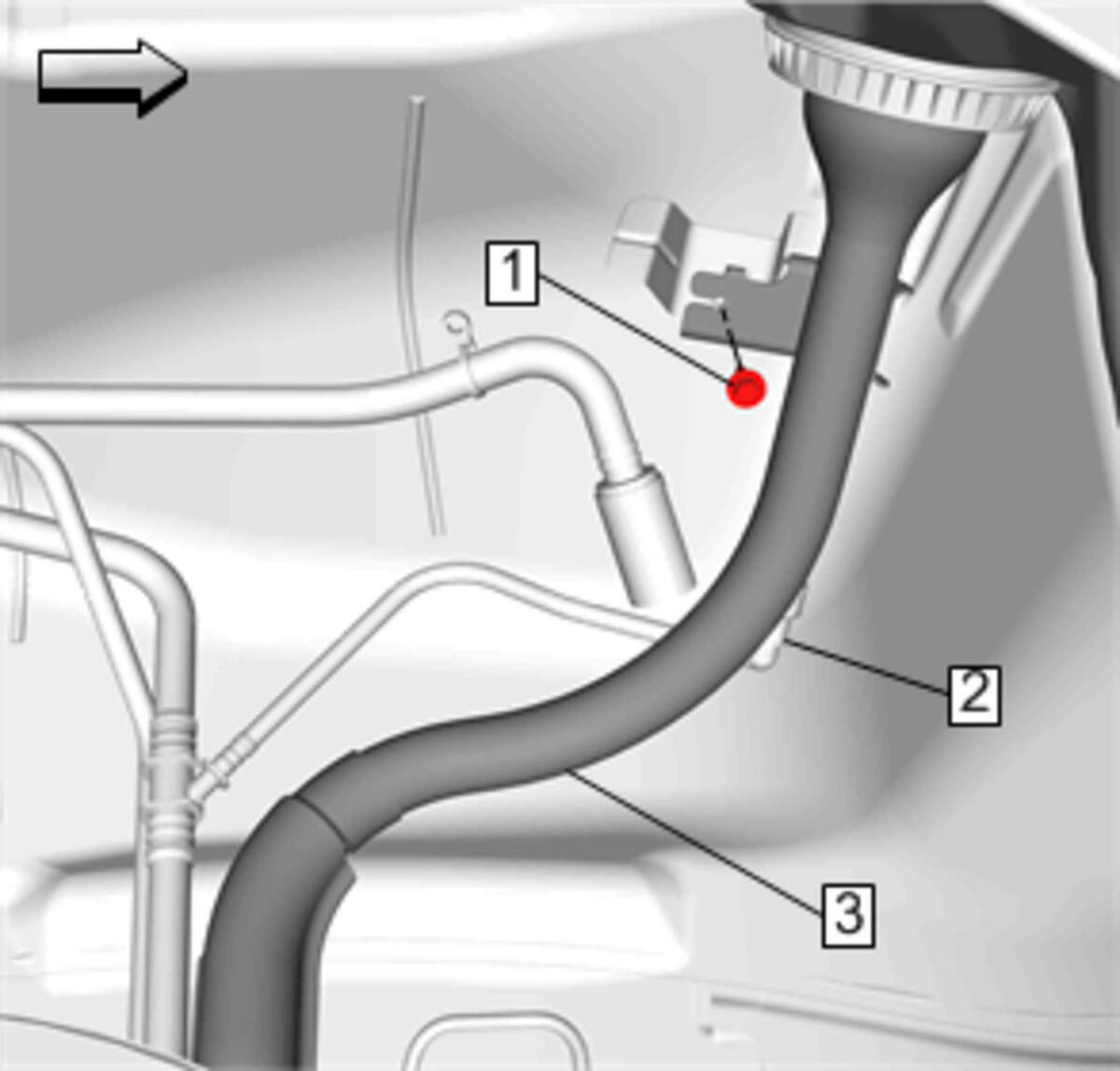

  1. GM4182338Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Tank Filler Pipe Bolt (1) @ Fuel Tank Filler Pipe (3) - Install 2.5 N.m (22 lb in)
  3. Evaporative Emission Canister Hose (2) @ Fuel Tank Filler Pipe (3) - Connect - Plastic Collar Quick Connect Fitting Service

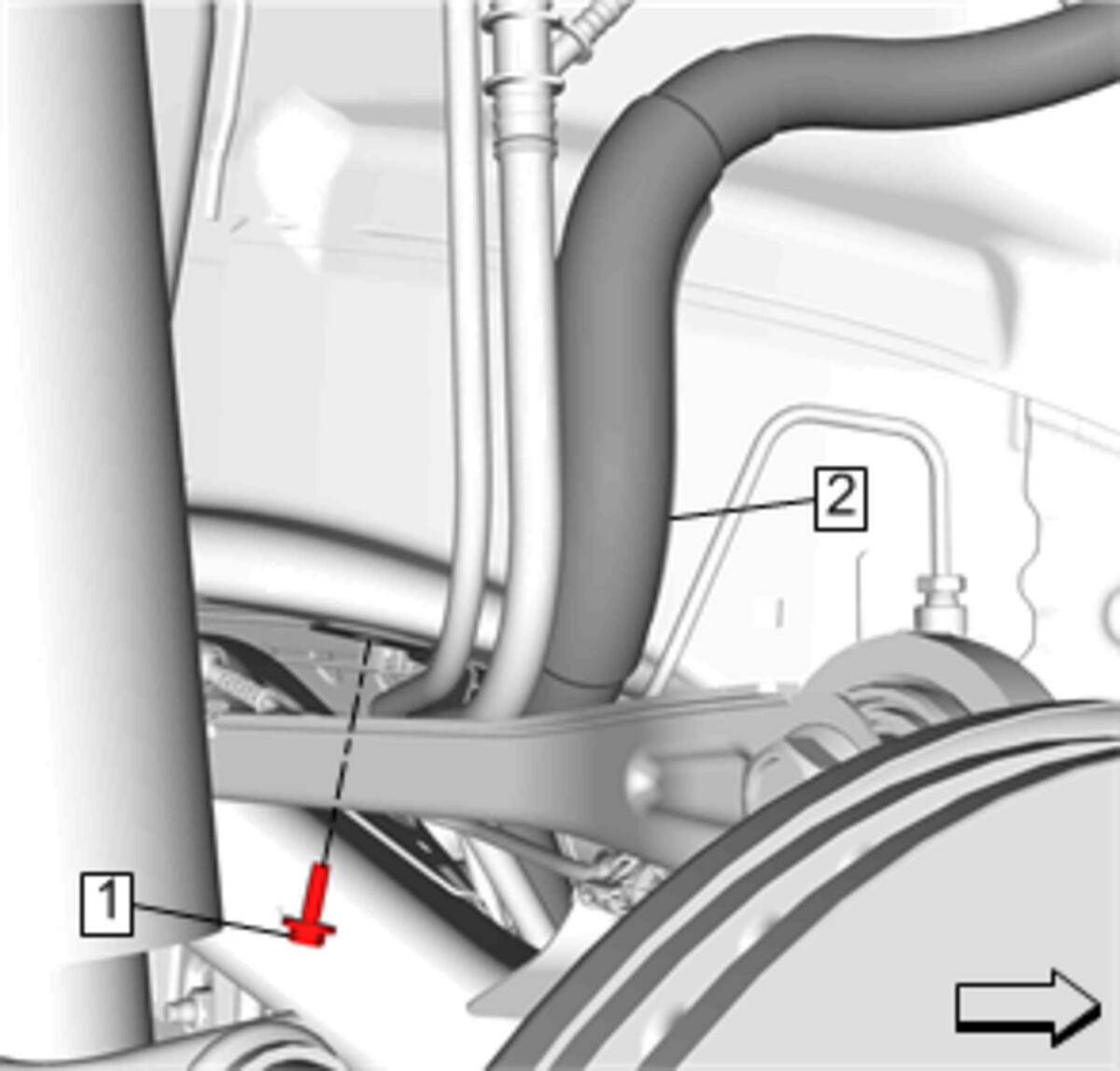

  4. GM4182353Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Bolt (1) @ Fuel Tank Filler Pipe (2) - Install 9 N.m (80 lb in)

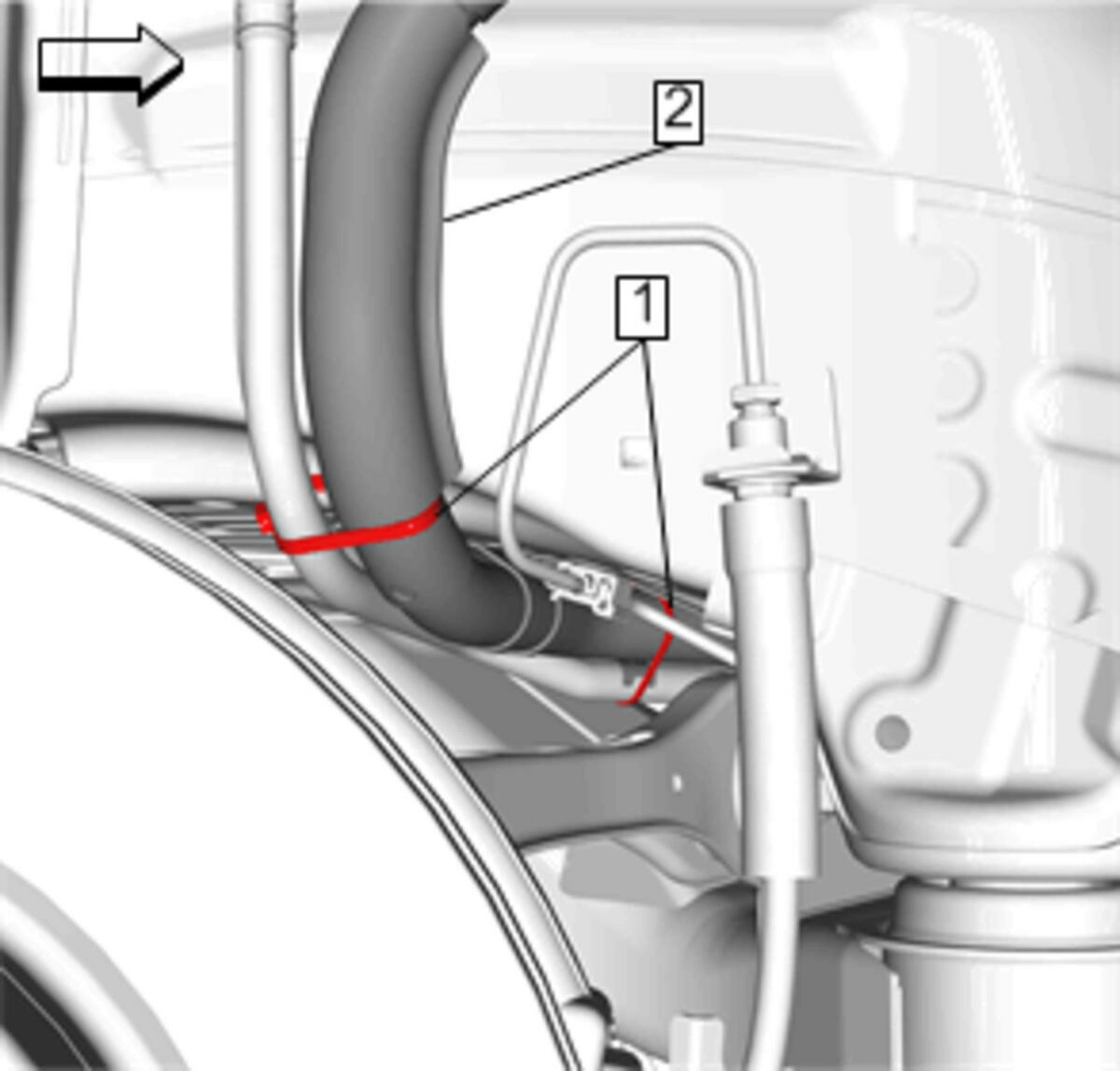

  5. GM4182345Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Filter Hose Strap(1) @ Fuel Tank Filler Pipe (2) - Install NEW [2x]

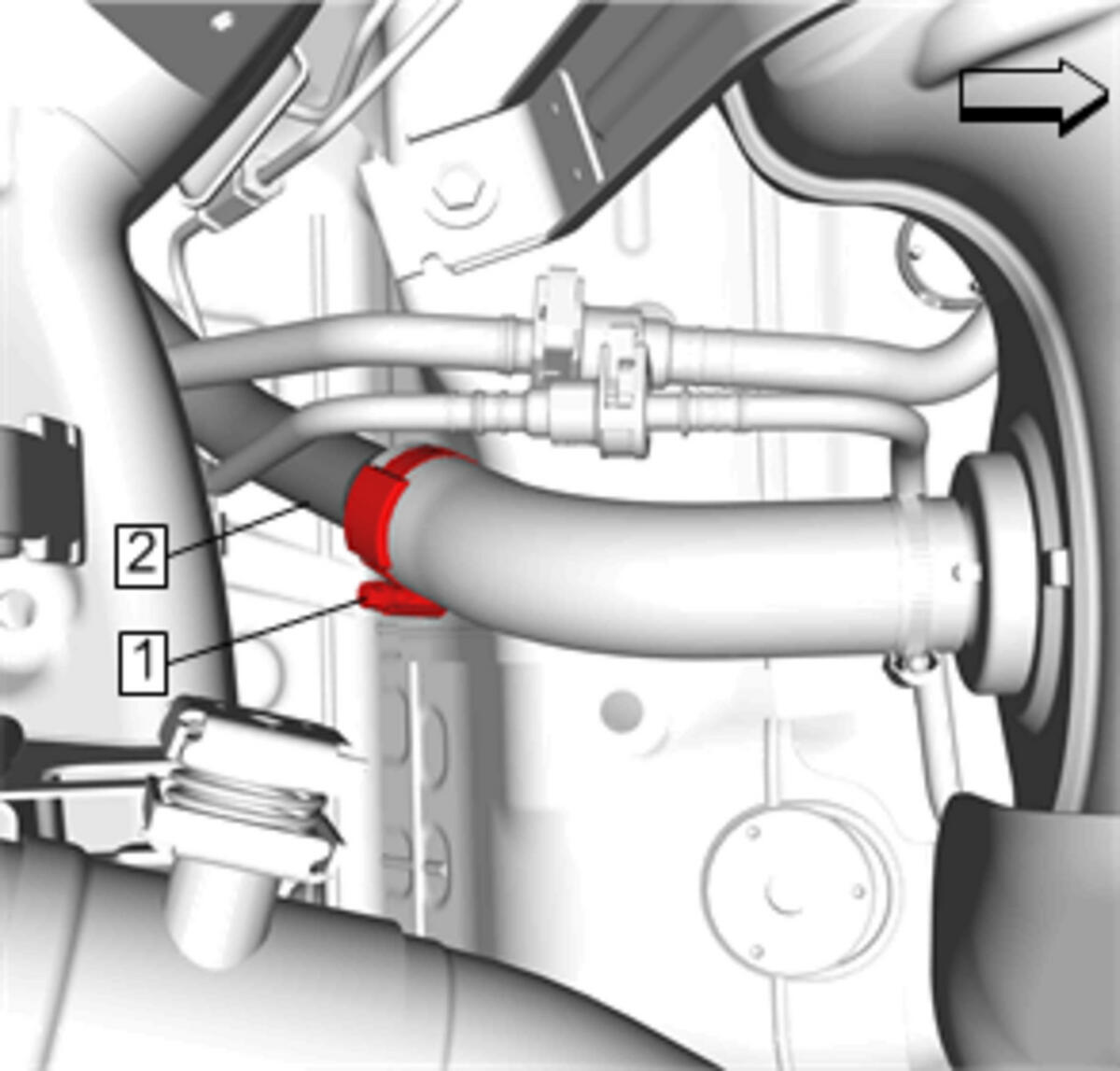

  6. GM4182357Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (2) - Install

  7. Fuel Tank Filler Pipe Clamp (1) - Install 3.5 N.m (31 lb in)
  8. Raise the rear suspension cradle back into position.

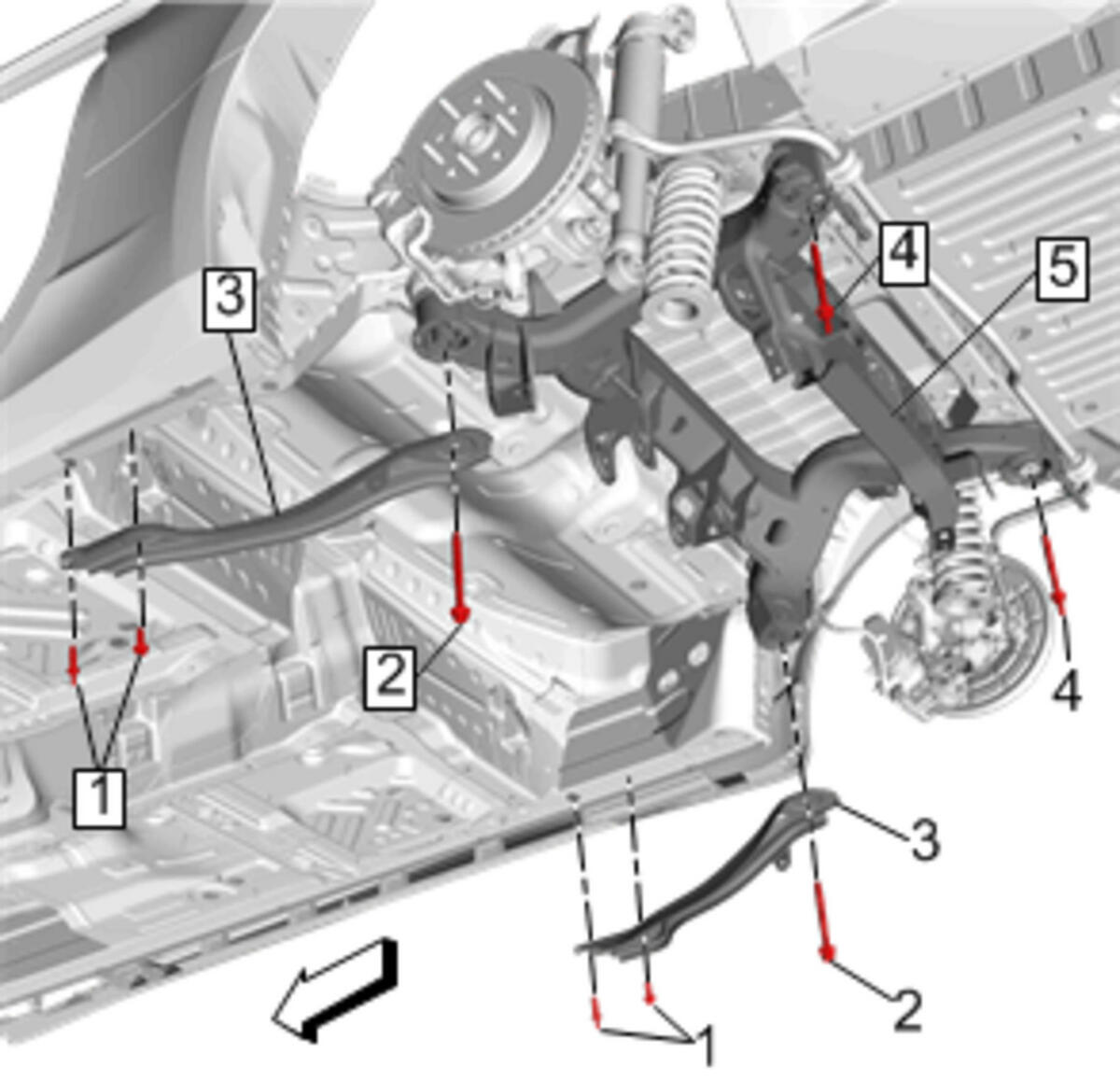

  9. GM4194779Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Cradle Bolt - Right Side (4) - Install NEW bolts. - Rear Suspension Cradle Replacement (LTG)

  10. GM4194779Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Cradle Bolt - Left Side (4) - Install NEW bolts. - Rear Suspension Cradle Replacement (LTG)

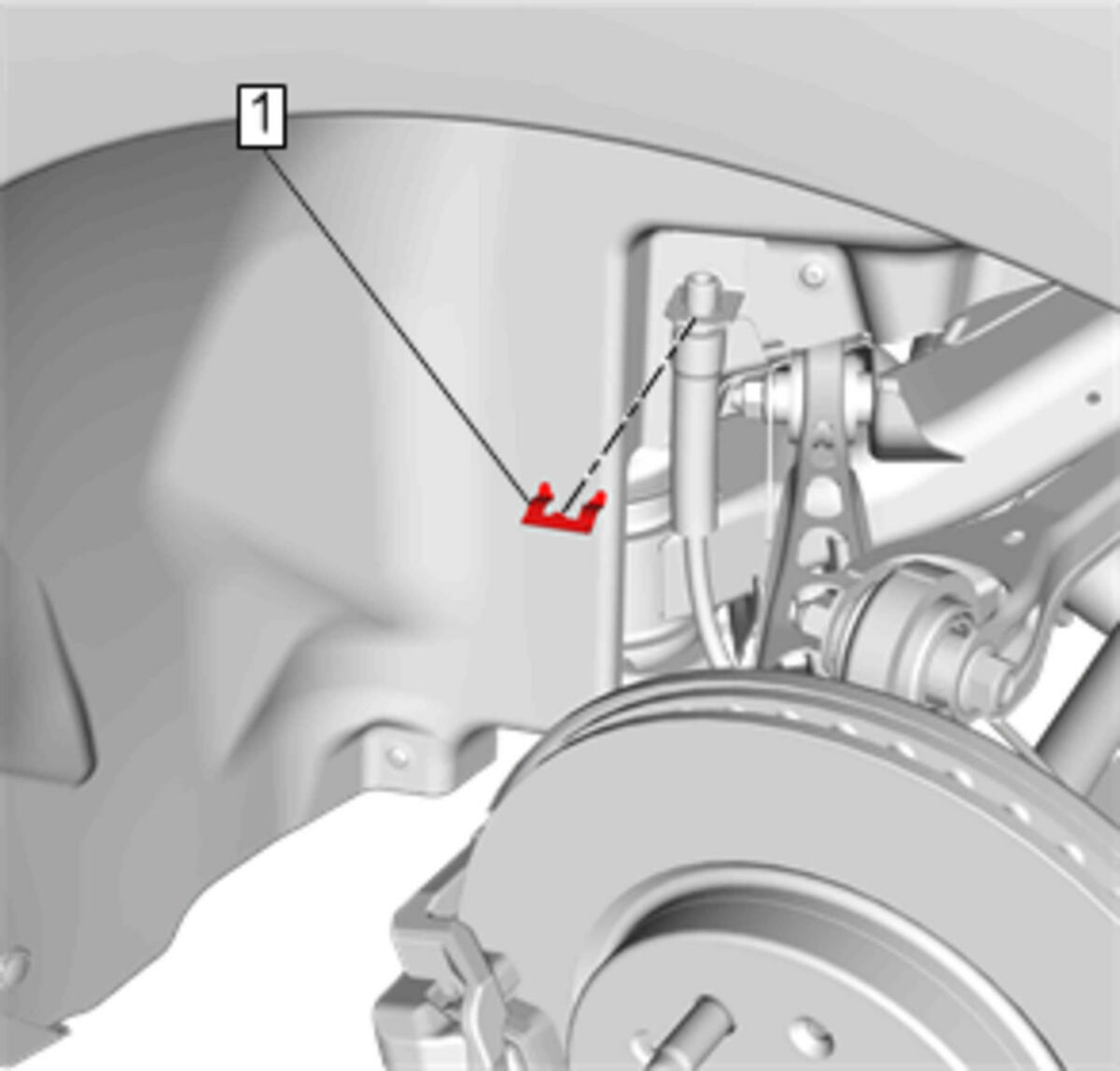

  11. GM4115888Courtesy of GENERAL MOTORS COMPANY

    Brake Hose Retainer - Right Side (1) - Install - Rear Brake Hose Replacement (JL9, J55) , or Rear Brake Hose Replacement (J6G, J6H)

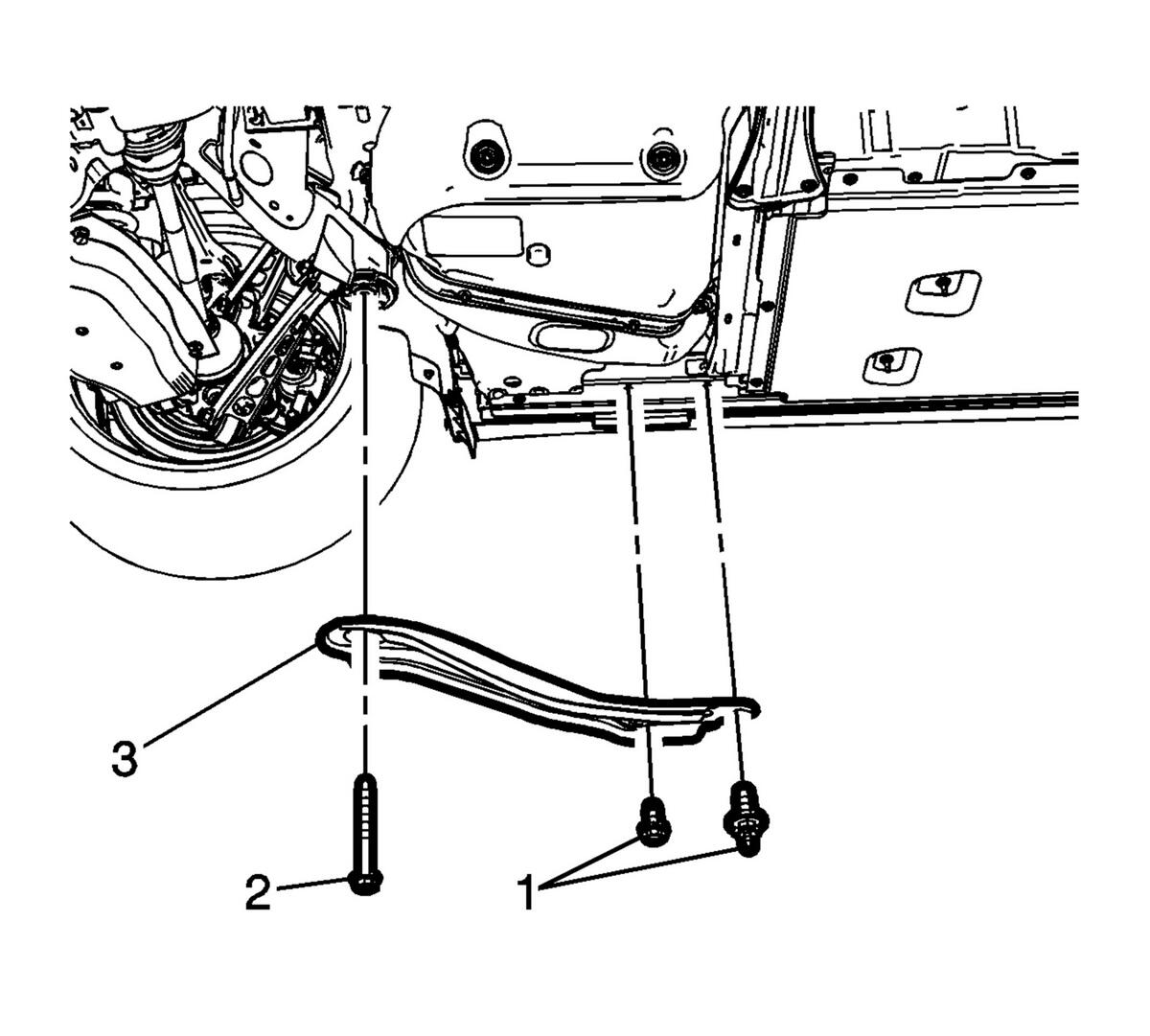

  12. GM2890391Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Bracket - Front Right Side (3) - Install - Rear Suspension Bracket Replacement (Rear (Coupe)) , or Rear Suspension Bracket Replacement (Rear (Convertible))

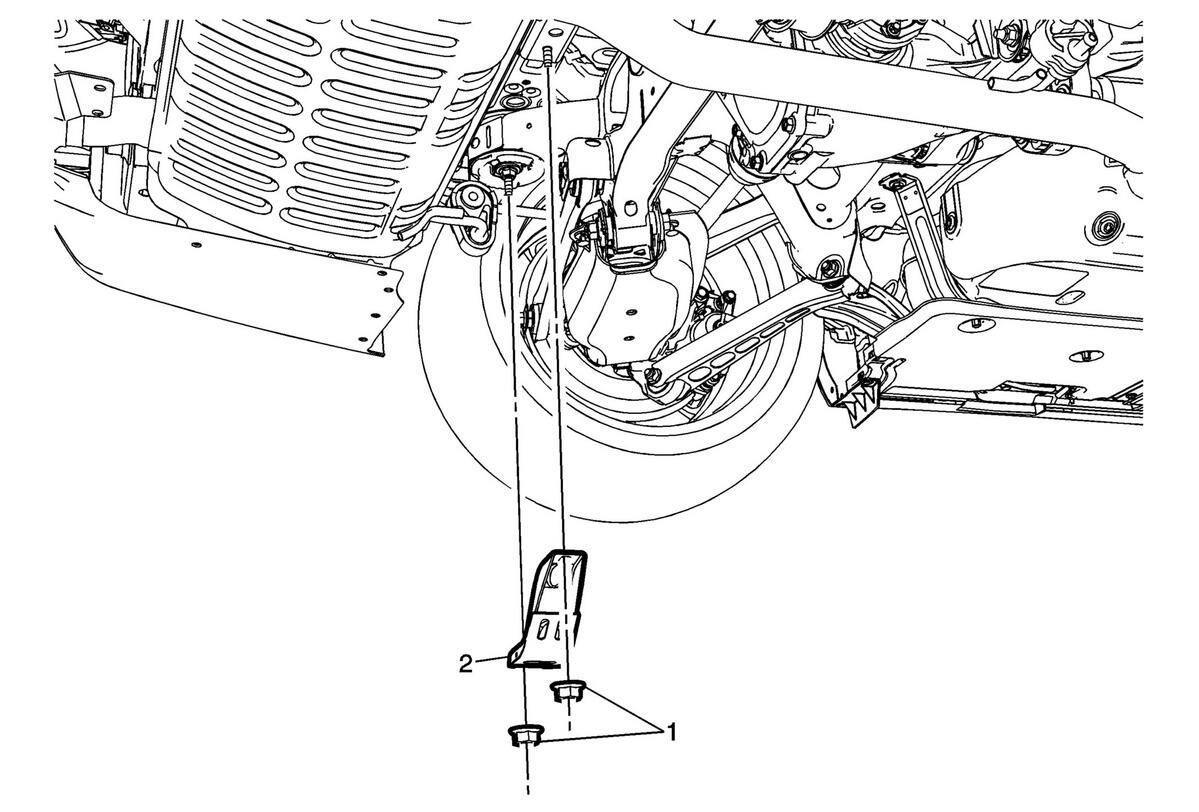

  13. GM2862812Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Bracket - Rear (2) - Install [2x] - Rear Suspension Bracket Replacement (Rear (Coupe)) , or Rear Suspension Bracket Replacement (Rear (Convertible))

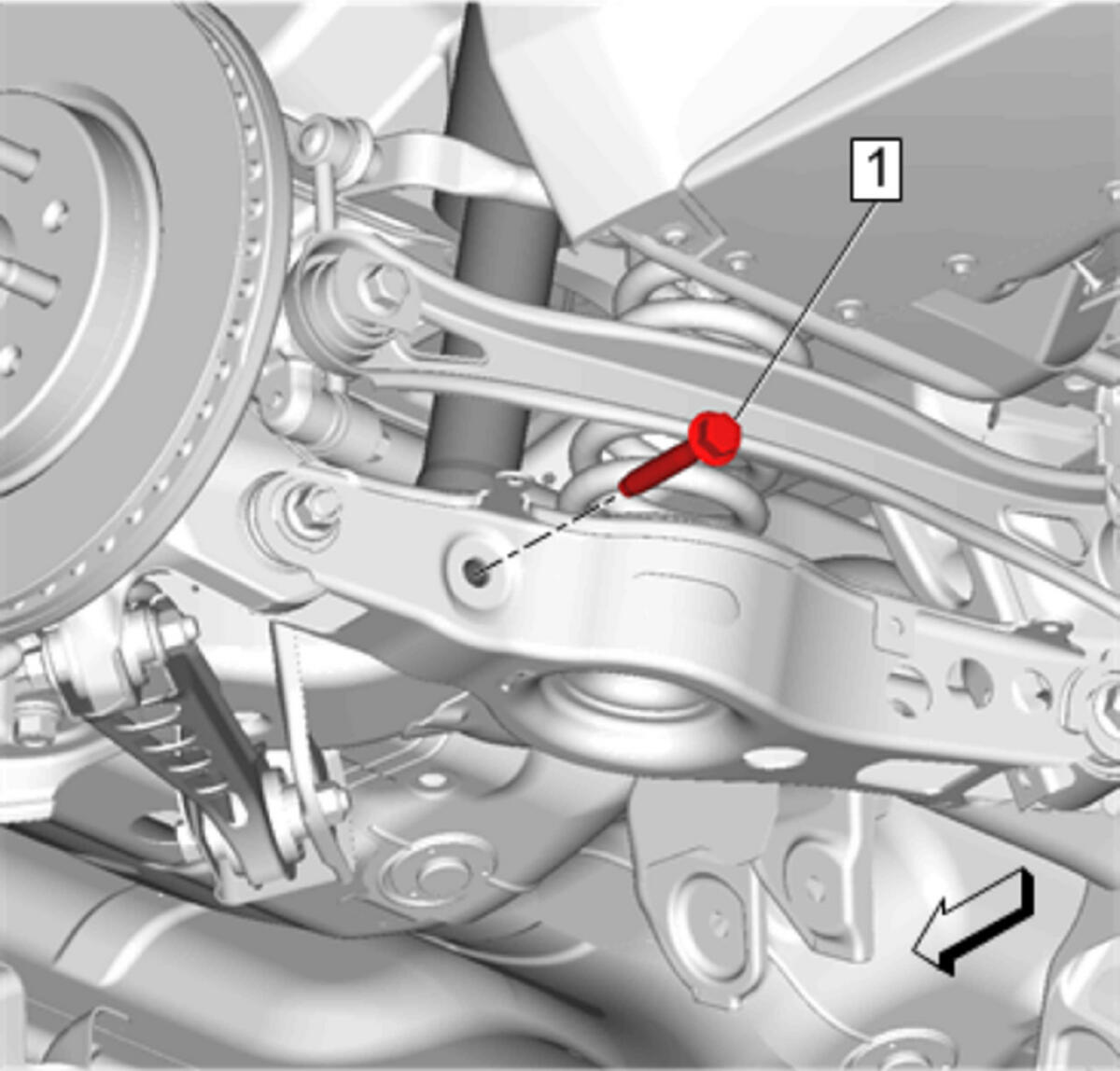

  14. GM4335093Courtesy of GENERAL MOTORS COMPANY

    Lower Rear Shock Bolt - Right Side (1) - Install - Shock Absorber Replacement

  15. Rear Wheelhouse Liner Replacement , or Rear Wheelhouse Liner Replacement (ZL1) - Install
  16. Fuel Tank Filler Pipe Housing Replacement - Install
  17. Lower the vehicle.
