Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Accessory Power Receptacle Fuse - Remove

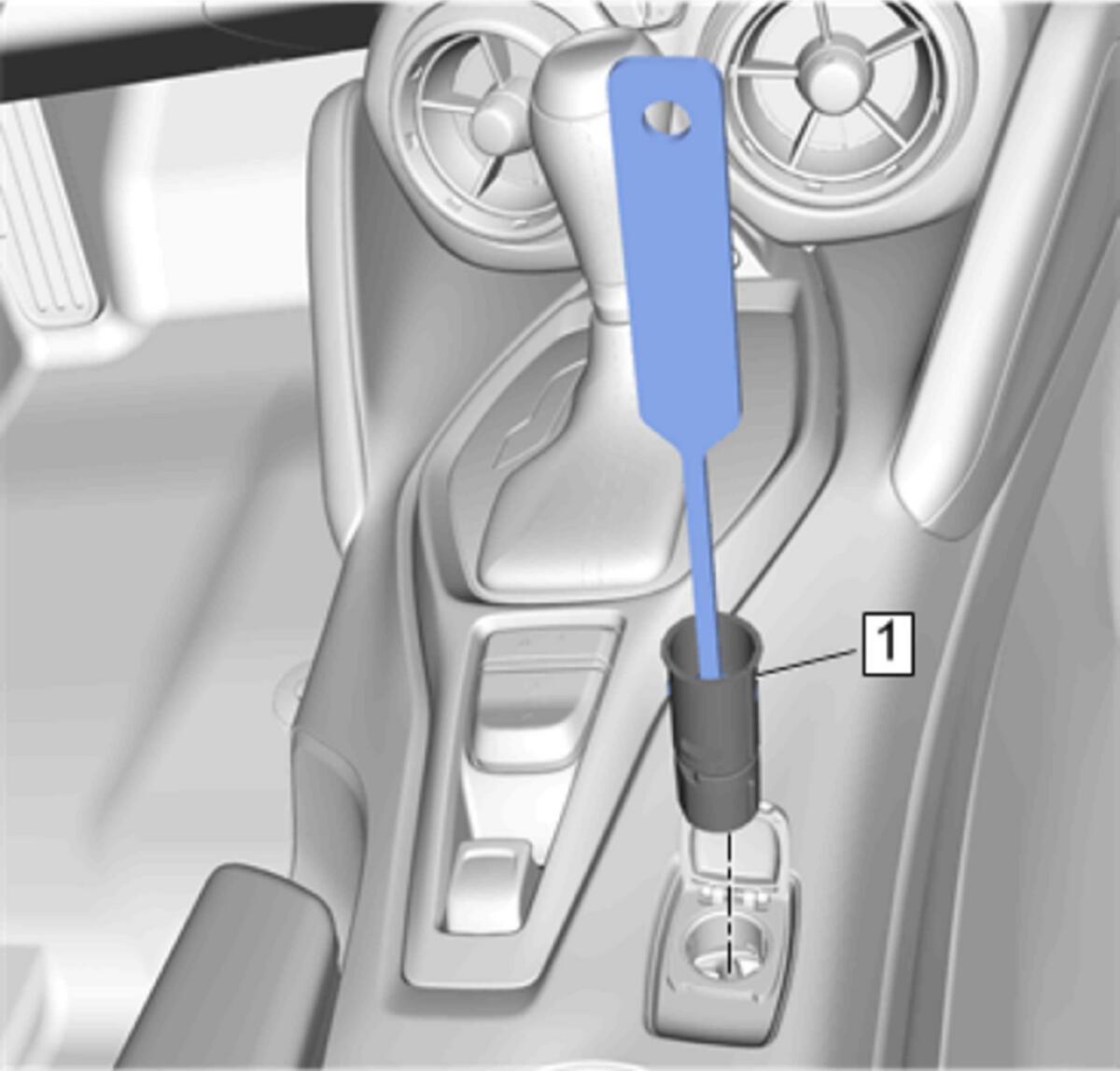

1. Look into the receptacle. There are two 3 mm (0.11 in) tab windows 12 mm (0.47 in) from the front of the receptacle. The J 42059  cigar lighter socket remover pushes the plastic latches from these tab windows and the receptacle can be pulled straight out.
2. Place one side of the "T" portion of the J 42059  cigar lighter socket remover into the tab window. The J 42059  cigar lighter socket remover will not fit straight into the receptacle. Angle the J 42059  cigar lighter socket remover slightly for insertion into the receptacle.
3. Insert the other side of the "T" into the opposite tab window.

   You must move the J 42059  cigar lighter socket remover handle toward horizontal to engage the other tab window.

4. Use the J 42059  cigar lighter socket remover to pull the receptacle straight out.

Courtesy of GENERAL MOTORS COMPANY

If J 42059  cigar lighter socket remover tool fails to release the socket from the retainer, perform the following alternate method:

1. Insert a small grinding tool with a cutoff wheel into the socket.
2. Remove the plastic latches in the 3 mm (0.11 in) square windows.
3. Use the J 42059  cigar lighter socket remover as directed above to remove the socket.
