Fastener Specifications
WARNING: This page is about a different car, the 2022 Chevrolet Bolt EUV. However, it is still accessible from the selected car via links, so may be relevant.

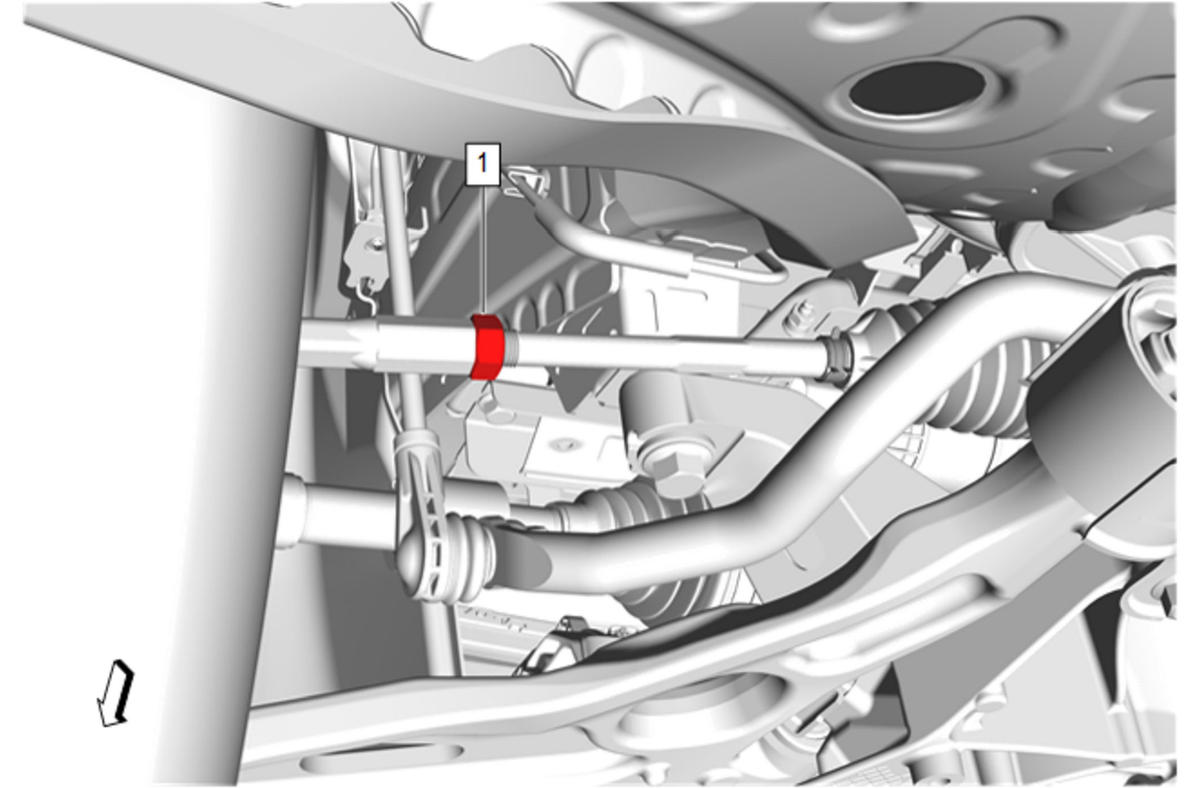

Steering Linkage Inner Tie Rod Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Inner Tie Rod Nut | - | - | 75 N.m (55 lb ft) | Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment |
