Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Rear Window (2) - Install - Adhesive Installation of Rear Windows
Courtesy of GENERAL MOTORS COMPANY

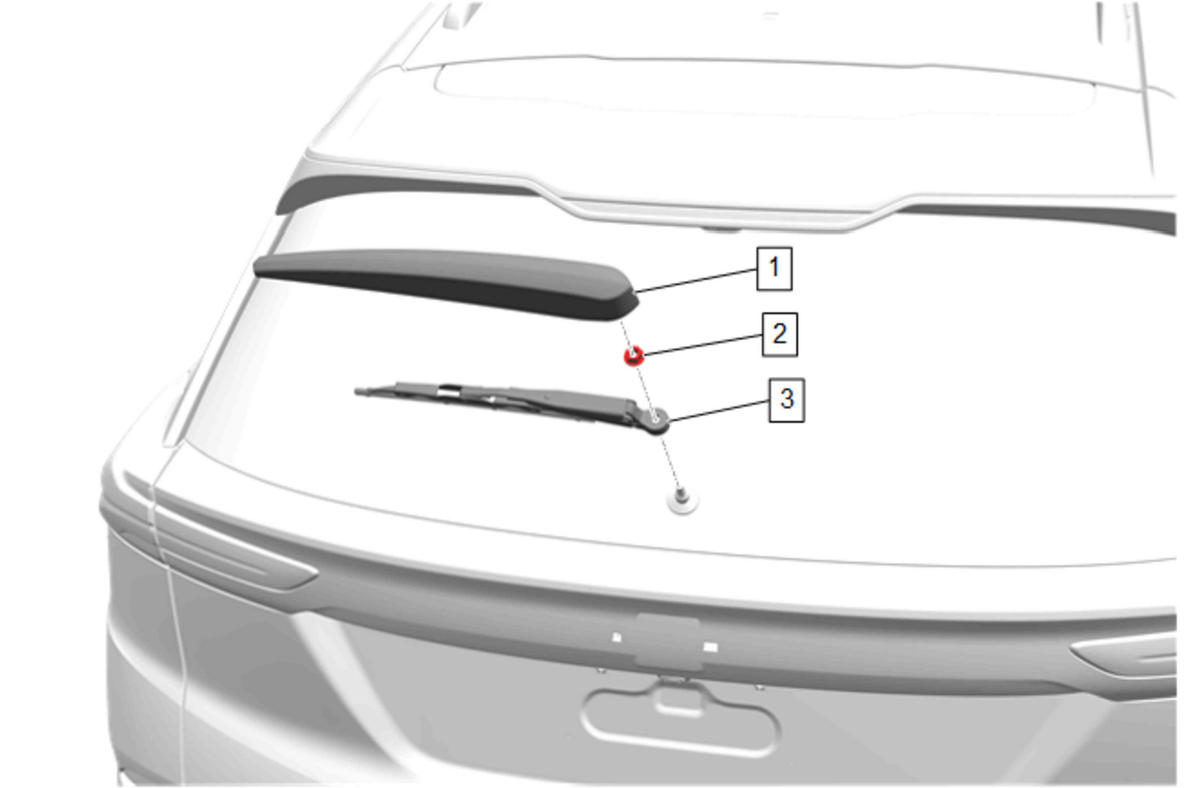

Rear Window Wiper Arm (3) - Install

CAUTION:

Fastener Caution

Rear Window Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
Rear Window Wiper Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

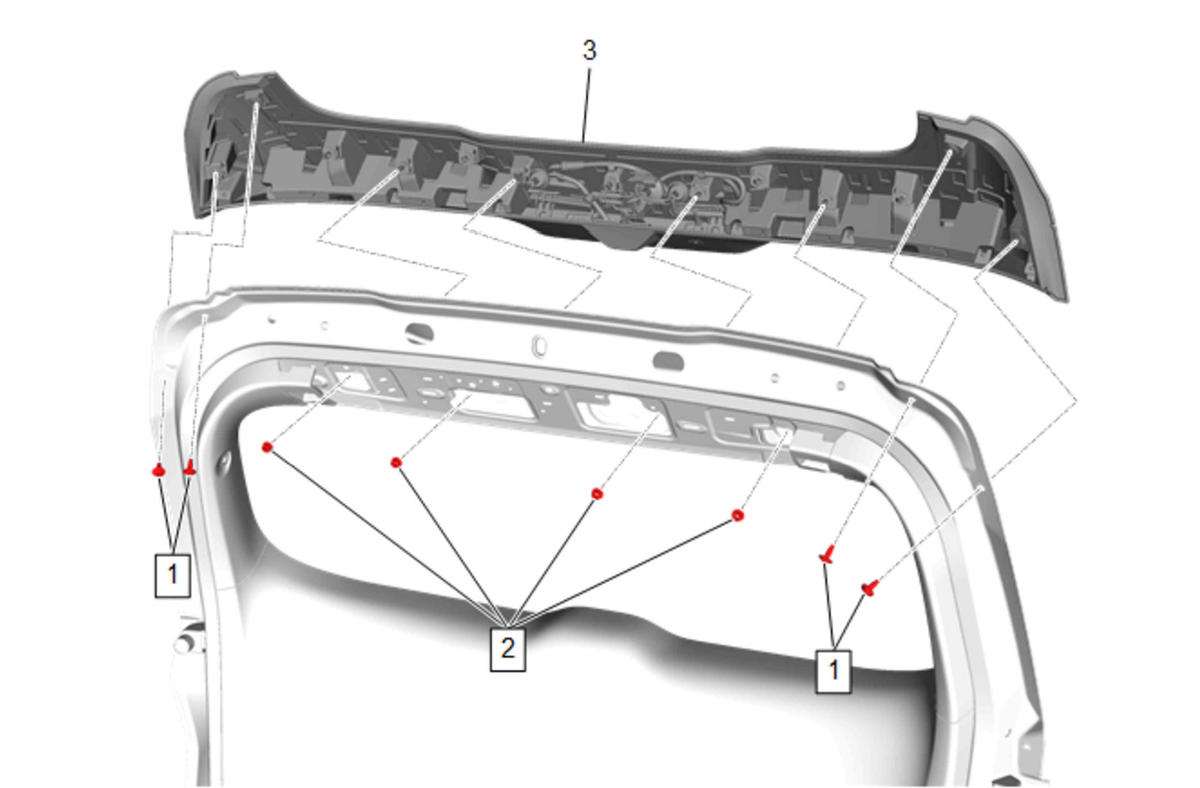

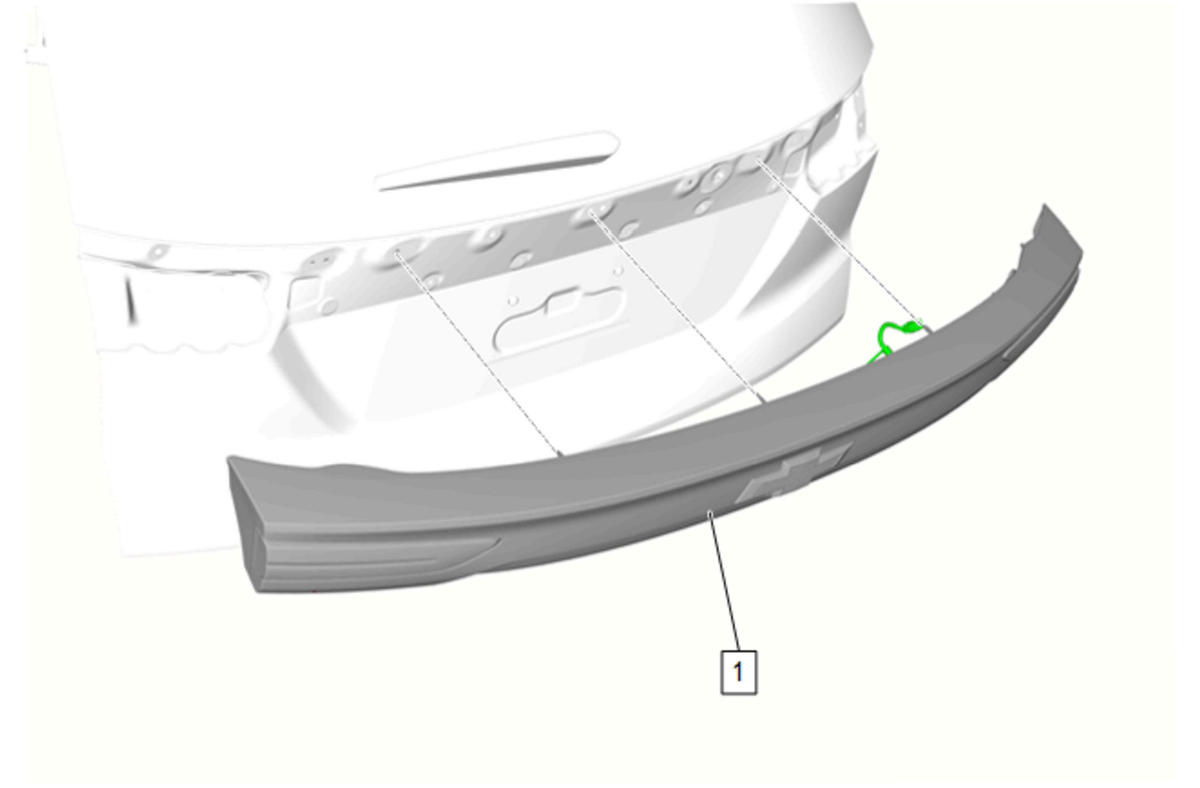

Rear End Spoiler (3) - Install
Rear End Spoiler Nut (2) - Install and tighten [4x] - Fastener Specifications
Rear End Spoiler Bolt (1) - Install and tighten [4x] - Fastener Specifications
Rear Window Washer Nozzle Hose Connector @Windshield Washer Liftgate Extension Rear Hose - Connect
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Rear Closure Center Applique Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

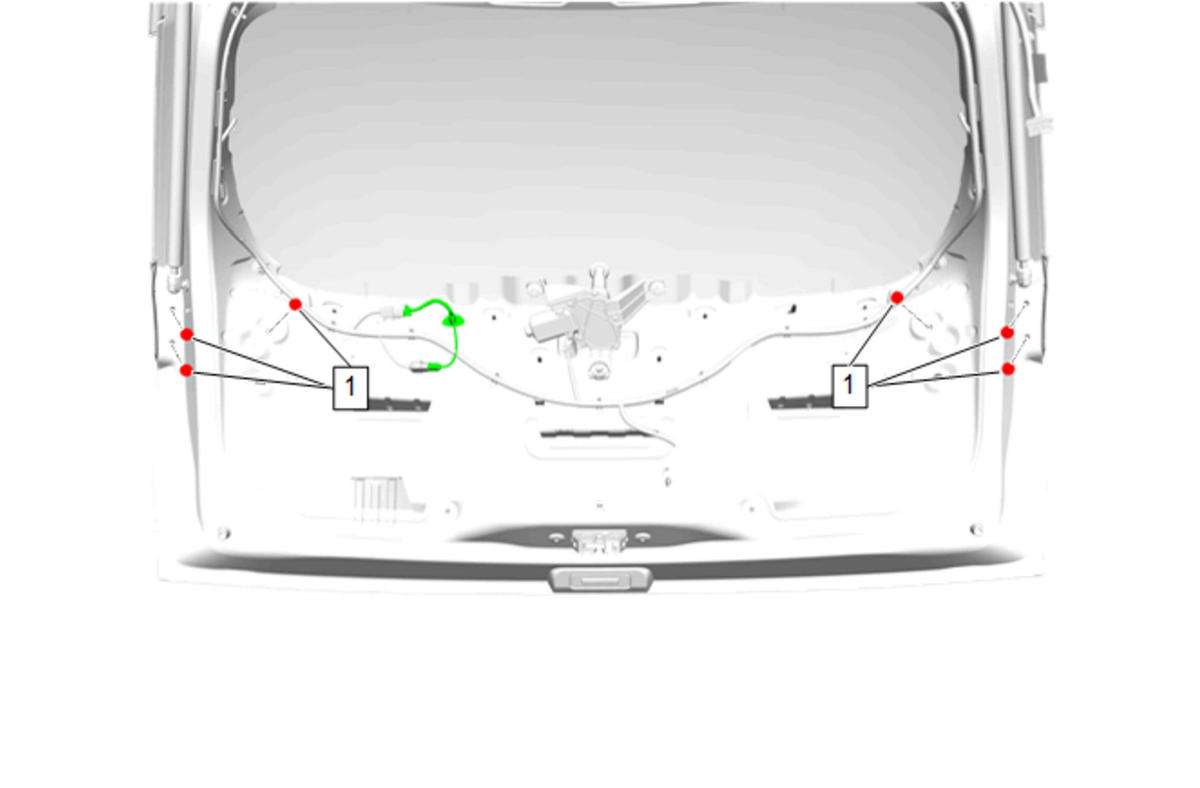

Rear Closure Center Applique Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

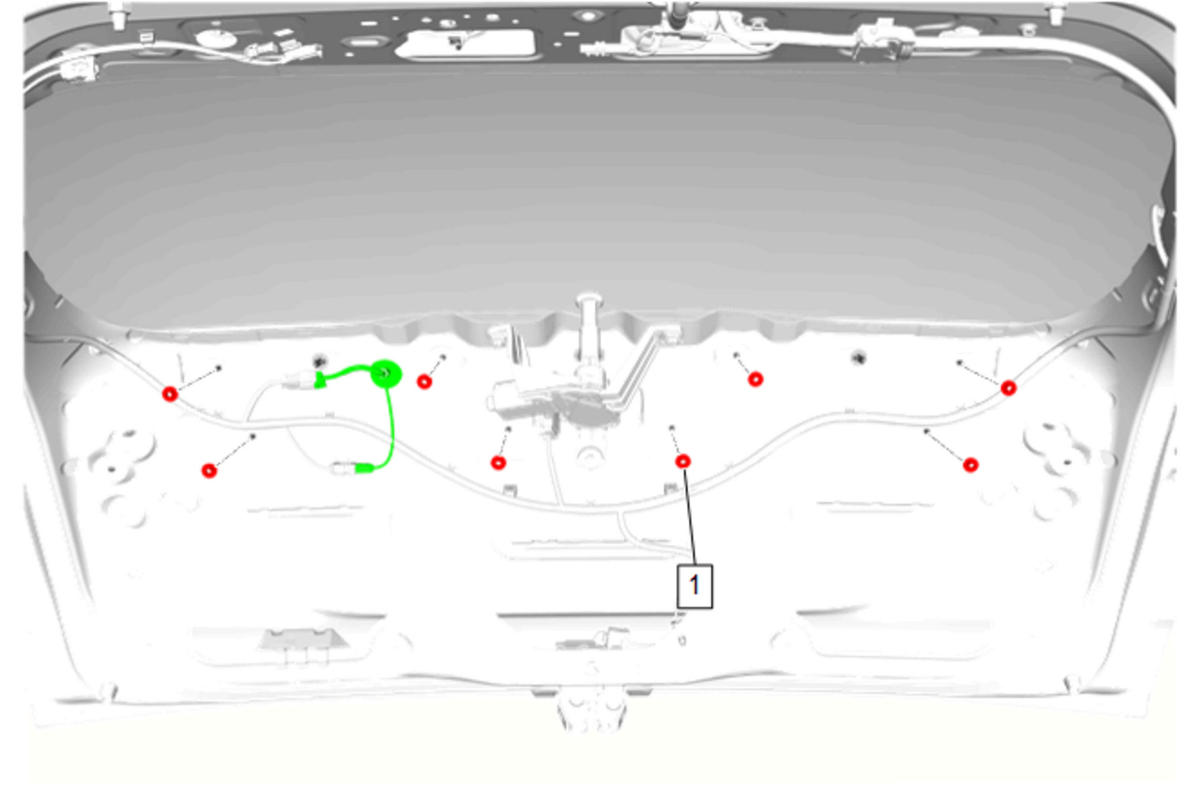

Rear Closure Center Applique Nut (1) - Install and tighten [8x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

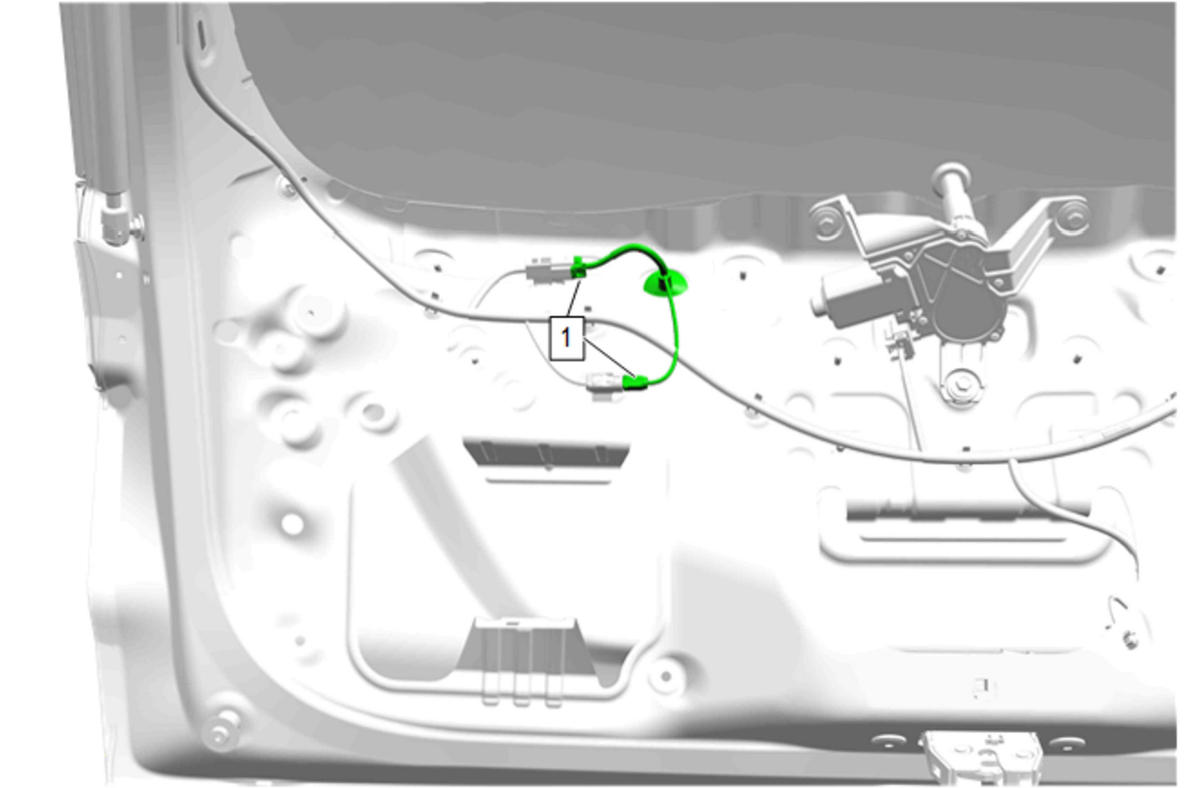

Connect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

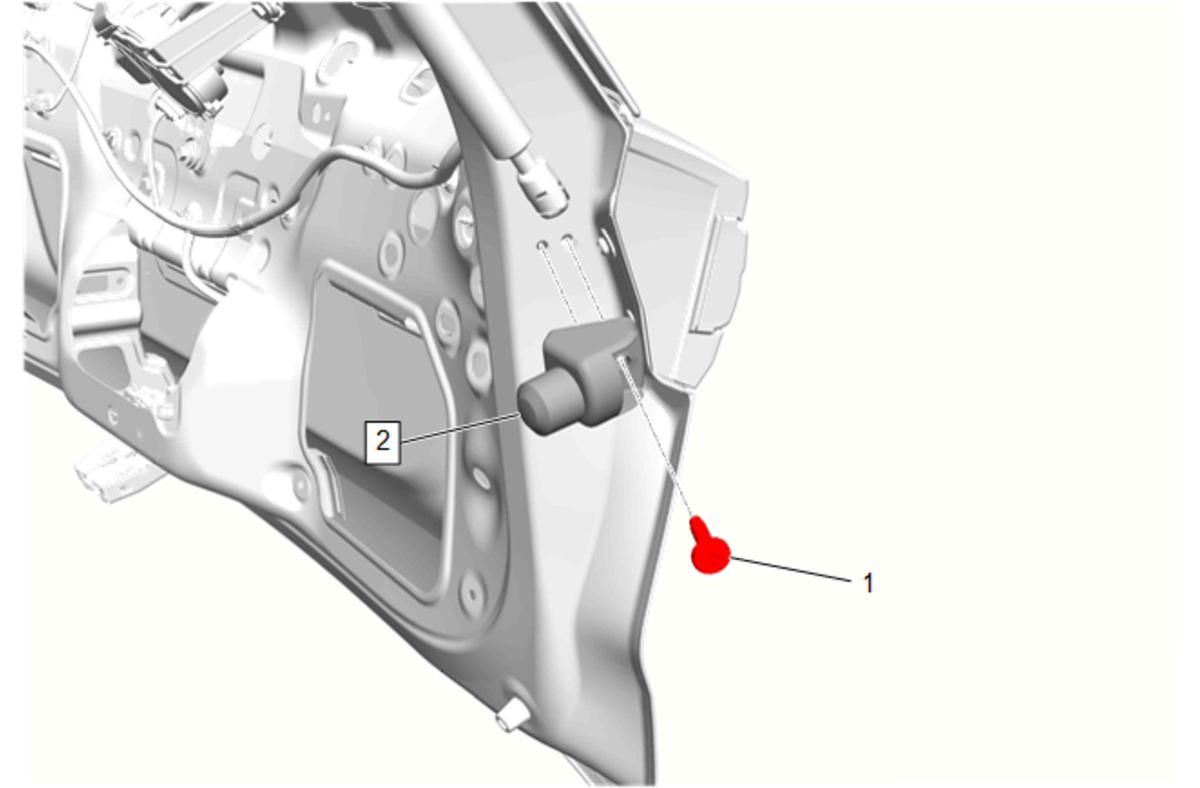

Liftgate Adjust Bumper- Right Side (2) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers (US, Canada)Adhesives, Fluids, Lubricants, and Sealers (except US, Canada)
Liftgate Adjust Bumper Bolt - Right Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

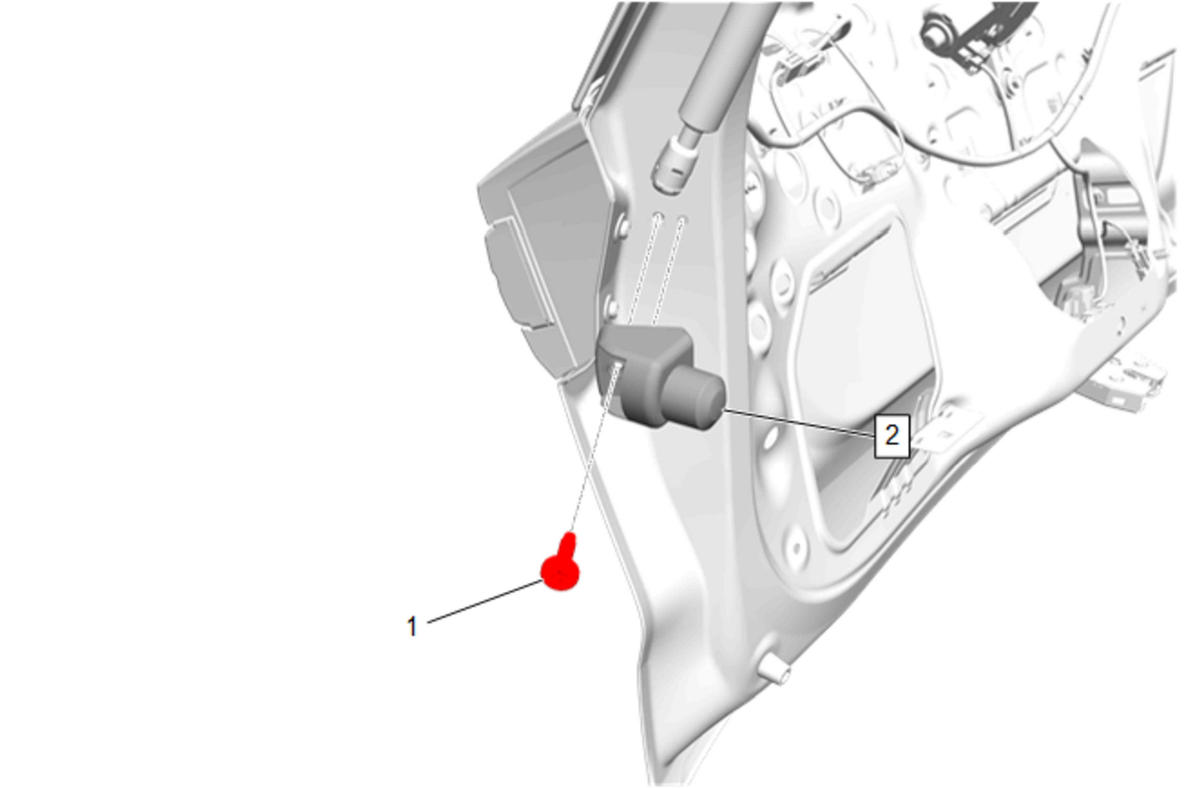

Liftgate Adjust Bumper- Left Side (2) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers (US, Canada)Adhesives, Fluids, Lubricants, and Sealers (except US, Canada)
Liftgate Adjust Bumper Bolt - Left Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Liftgate Lower Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Liftgate Upper Side Trim Finish Panel (1) -Both Sides - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Luggage Shade Pivot (1) -Both Sides - Install NEW [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the liftgate upper center trim finish panel (1).
Courtesy of GENERAL MOTORS COMPANY

Install the liftgate trim finish panel pull cup (2).
Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
