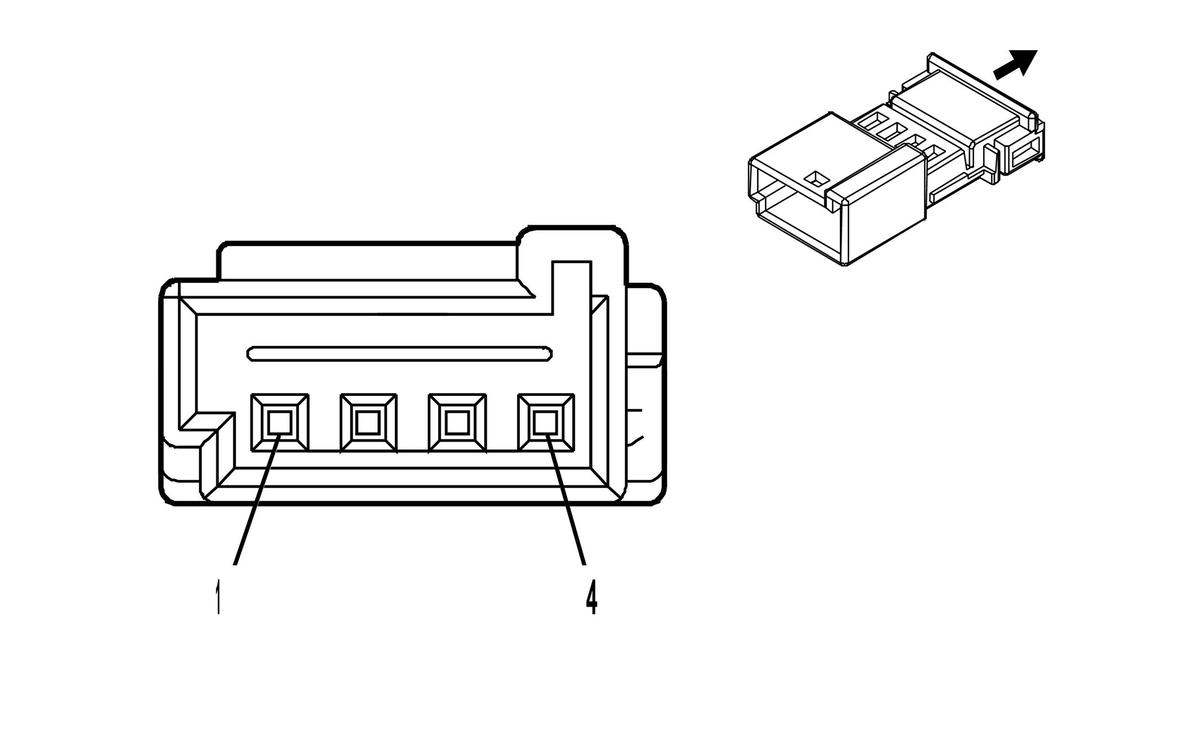

K32 Steering Wheel Heating Control Module X2 (KI3)
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Steering Wheel Pad Accessory Wiring Harness
- OEM Connector: 3-968696-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 0.64 MQS Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-65B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD |
5888 |
Steering Wheel Heating High Control |
I |
- |
| 2 |
0.5 |
BK |
1550 |
Ground |
I |
- |
| 3 |
0.35 |
GY |
5885 |
Steering Wheel Heating Voltage Reference |
I |
- |
| 4 |
0.35 |
GY |
1550 |
Ground |
I |
- |
