B131A Exhaust Temperature Sensor 1 (-NCL)
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

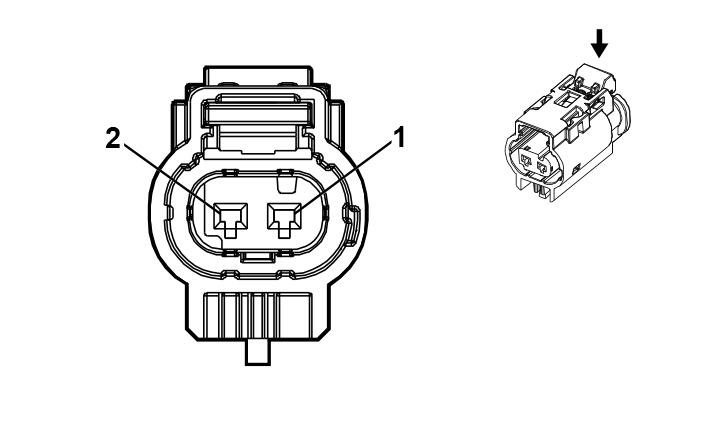

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 33226772
- Service Connector: 84727362
- Description: 2-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK / BN |
6782 |
Exhaust Gas Temperature Sensor 1 Low Reference |
I |
- |
| 2 |
0.5 |
BU / WH |
5277 |
Exhaust Gas Temperature Sensor 1 Signal |
I |
- |
