B10B Ambient Light/Sunload Sensor
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

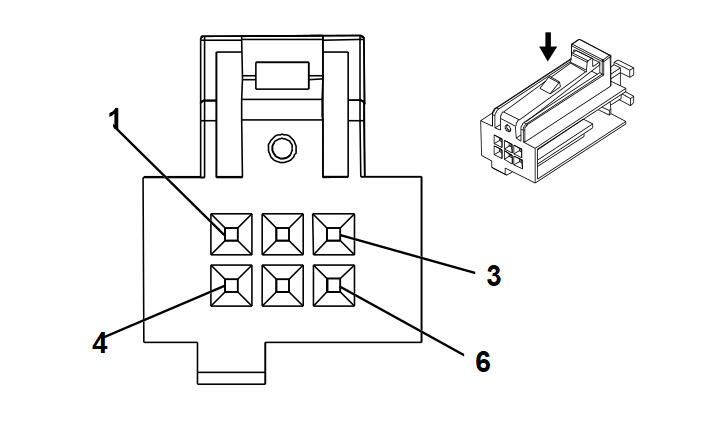

Connector Part Information
- Harness Type: Instrument Panel Wiring Harness
- OEM Connector: 10779302
- Service Connector: 85587649
- Description: 6-Way F Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE / VT |
1783 |
Ambient Light Sensor Signal |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.13 |
WH |
278 |
Ambient Light Sensor Signal |
I |
- |
| 4 |
0.5 |
BU / WH |
734 |
Inside Air Temperature Sensor Signal |
I |
- |
| 5 |
0.13 |
GY |
728 |
Security Indicator Control |
I |
- |
| 6 |
0.13 |
BN |
7567 |
Solar Sensor Low Reference |
I |
- |
