S48A Multifunction Switch - Instrument Panel
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.

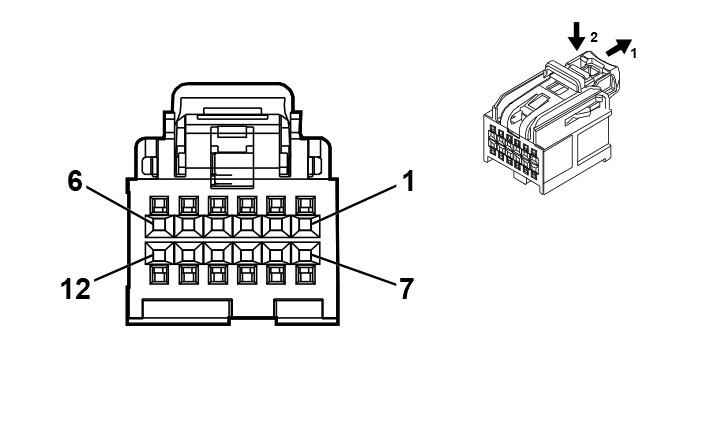

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19300660 | J-35616-64B (L-BU) | J-38125-215A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | BU | 3161 | Parking Assist Parallel Parking Disable Switch Signal | I | - |
| 2 | 0.35 0.13 |
GY / GN GY |
2555 2555 |
Rear Parking Assist Disable Signal Rear Parking Assist Disable Signal |
I I |
UGN -UGN |
| 3 | 0.35 0.13 |
GN / BN GN |
5852 5852 |
Rear Parking Assist Disable LED Signal Rear Parking Assist Disable LED Signal |
I I |
UGN -UGN |
| 4 | 0.35 | GN / WH | 4115 | Body Control Module LIN Bus 5 | I | - |
| 5 | 0.35 | BK / WH | 1751 | Signal Ground | I | - |
| 6 | 0.35 | YE | 6817 | LED Backlight Dimming Control 1 | I | - |
| 7 | 0.35 | GY / WH | 3153 | Lane Departure Warning Disable Switch Signal | I | - |
| 8 | - | - | - | Not Occupied | - | - |
| 9 | 0.35 | WH | 3152 | Lane Departure Warning Indicator Control | I | - |
| 10 | 0.35 | WH | 6816 | Indicator Dimming Control | I | - |
| 11 | 0.13 | GN | 111 | Hazard Warning Switch Signal | I | - |
| 12 | 0.35 | RD / YE | 5840 | Battery Positive Voltage | I | - |
