S45B Liftgate Control Switch - Interior
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

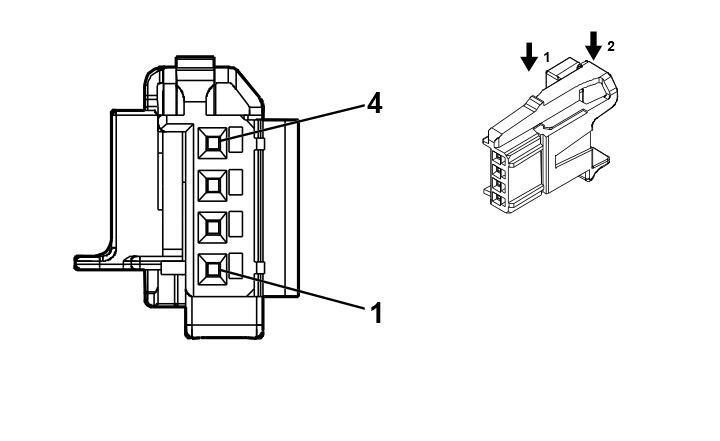

Connector Part Information
- Harness Type: Front Side Door Lock and Power Window and Outside Rearview Mirror Wiring Harness - Driver
- OEM Connector: 33358011
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
2150 |
Ground |
I |
- |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 3 |
0.35 |
GN |
6112 |
Liftgate Mode Switch Signal |
I |
- |
| 4 |
0.35 |
GY / BK |
6113 |
Exterior Liftgate Control Switch Signal |
I |
- |
