A38 Reductant Pump and Sensor Assembly X2
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

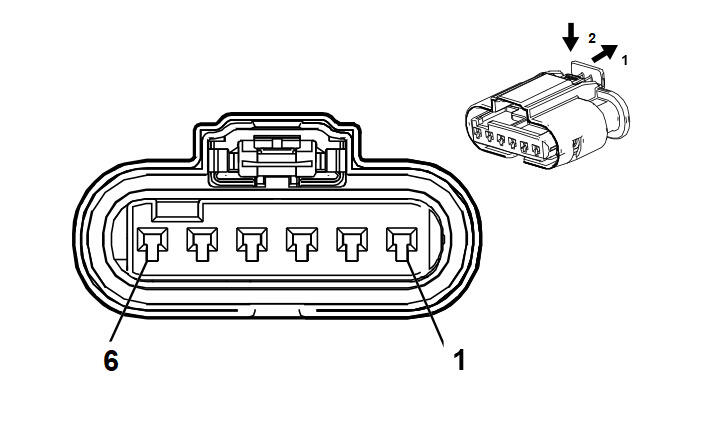

Connector Part Information
- Harness Type: Reductant Tank Wiring Harness
- OEM Connector: 34900-6140
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
7284 |
Diesel Exhaust Fluid Liquid Quality Temperature Signal |
I |
- |
| 2 |
- |
- |
7285 |
Diesel Exhaust Fluid Liquid Quality Temperature Sensor Low Reference |
I |
- |
| 3 |
- |
- |
7286 |
Diesel Exhaust Fluid Sensor Voltage Reference 2 |
I |
- |
| 4 |
- |
- |
3677 |
Diesel Exhaust Fluid Reservoir Heater Control |
I |
- |
| 5 |
- |
- |
4318 |
Diesel Exhaust Fluid Tank Heater Low Control |
I |
- |
| 6 |
- |
- |
7283 |
Diesel Exhaust Fluid Tank Pressure Signal |
I |
- |
