Rear Side Door Window Inner Sealing Strip Replacement

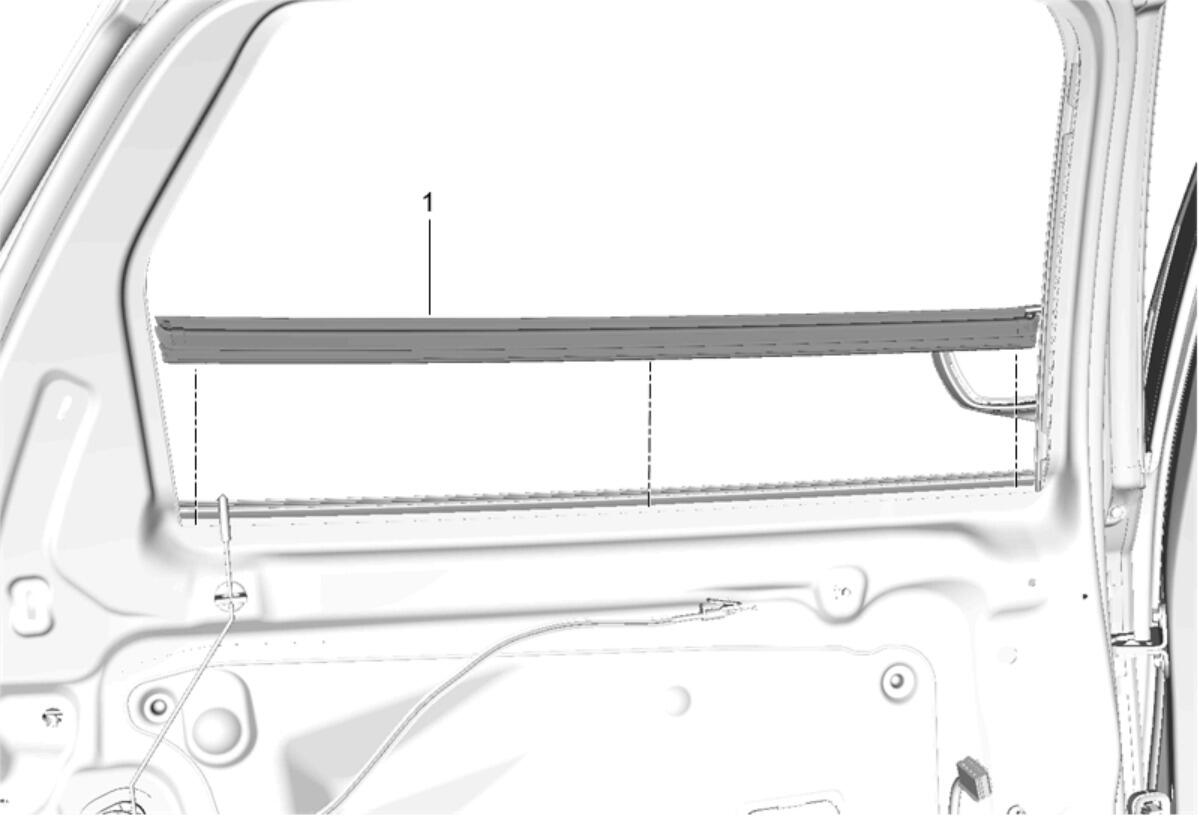

GM4807212Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Place the rear door window in the full down position.
  2. Rear Side Door Window Garnish Molding Replacement
1 Rear Side Door Window Inner Sealing Strip

Procedure

  1. Lift the rear side door window inner sealing strip off the pinch-weld flange.
  2. Press firmly to insert the rear side door window inner sealing strip back on the door flange.
  3. Inspect the door window for proper operation before installing the door trim panel.
