Front Seat Belt Guide Adjuster Replacement

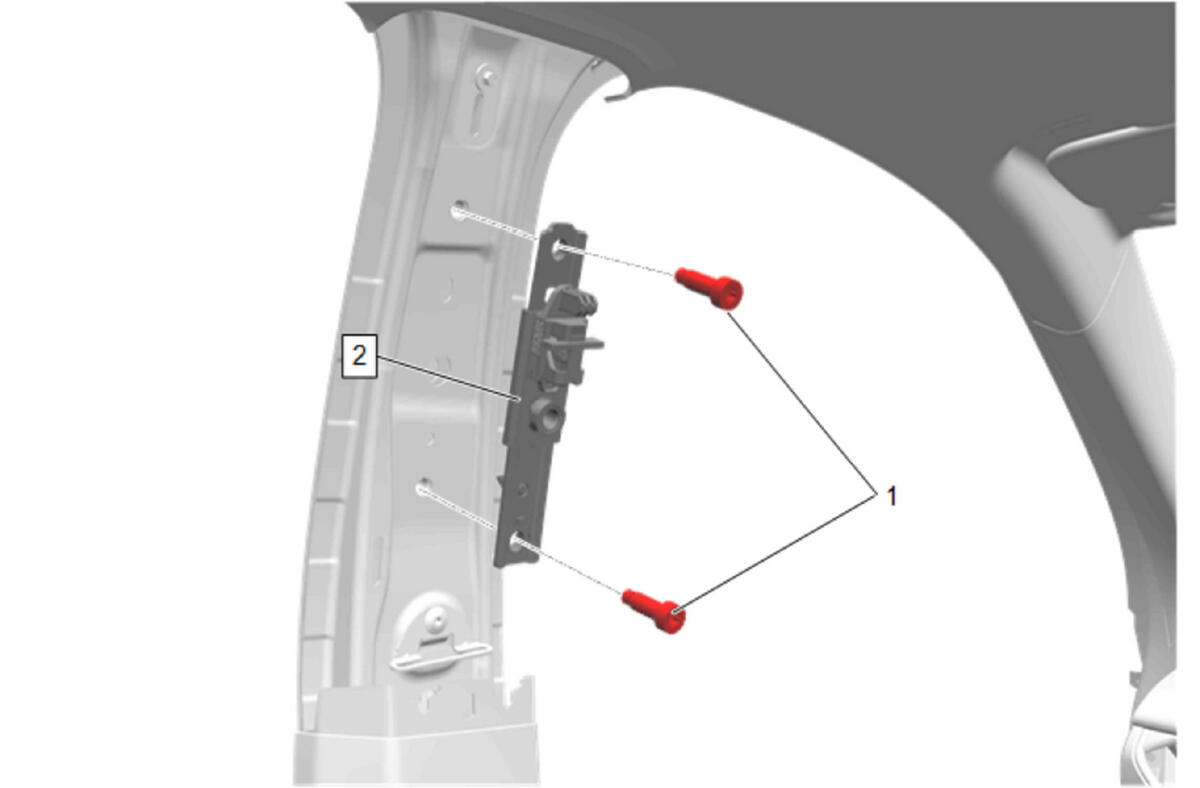

GM5704087Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat belt retractor D ring bolt. Front Seat Belt Retractor Replacement
1 Front Seat Belt Guide Adjuster Bolt [2x]
CAUTION:

Refer to Fastener Caution .

  1. Remove the front seat belt guide adjuster bolt.
  2. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component.Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Tighten
45 N.m (33 lb ft)
2 Front Seat Belt Guide Adjuster
Procedure
Release the retainer.
