3rd Row Seat Belt Retractor Replacement

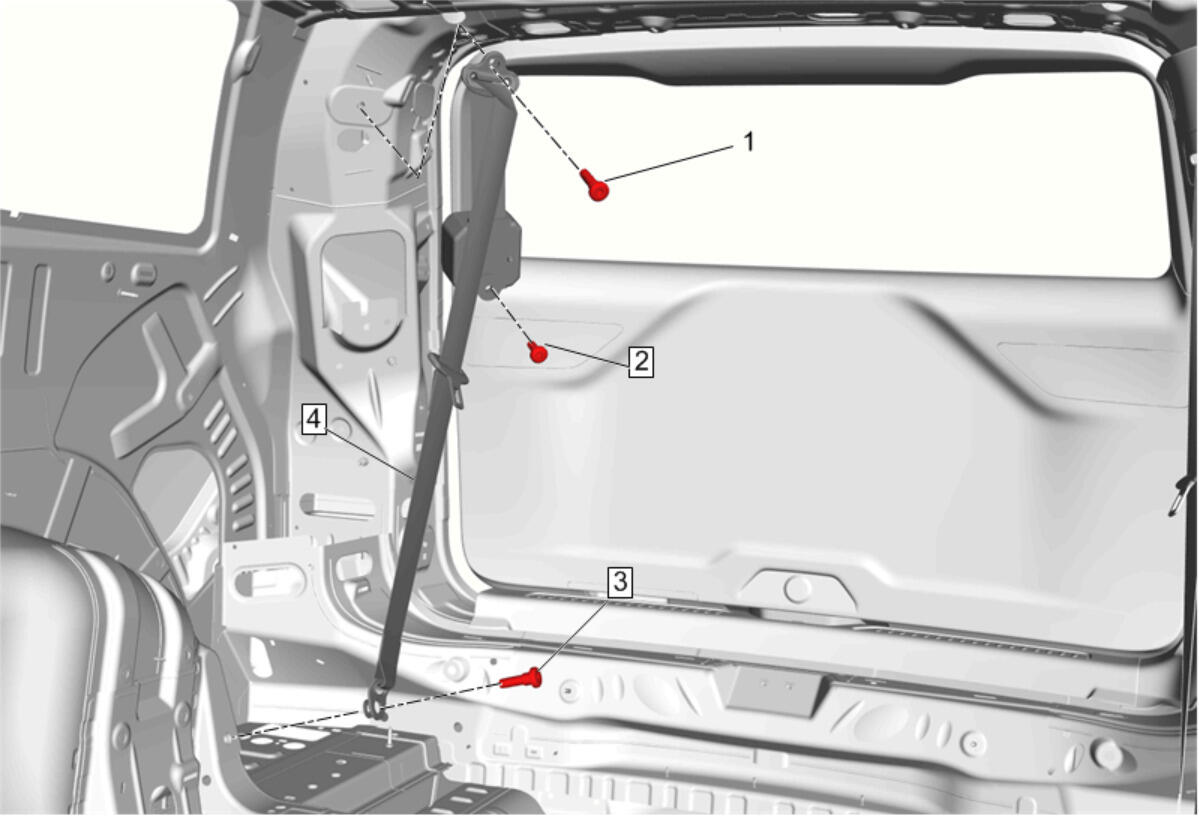

| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side) |
|
| 1 | 3rd Row Seat Belt Guide Bolt
CAUTION:
Refer to Fastener Caution . Tighten 35 N.m (26 lb ft) |
| 2 | 3rd Row Seat Belt Retractor Bolt Tighten 45 N.m (33 lb ft) |
| 3 | 3rd Row Seat Belt Anchor Bolt Tighten 45 N.m (33 lb ft) |
| 4 | 3rd Row Seat Belt Retractor |
