Radiator Lower Insulator Replacement

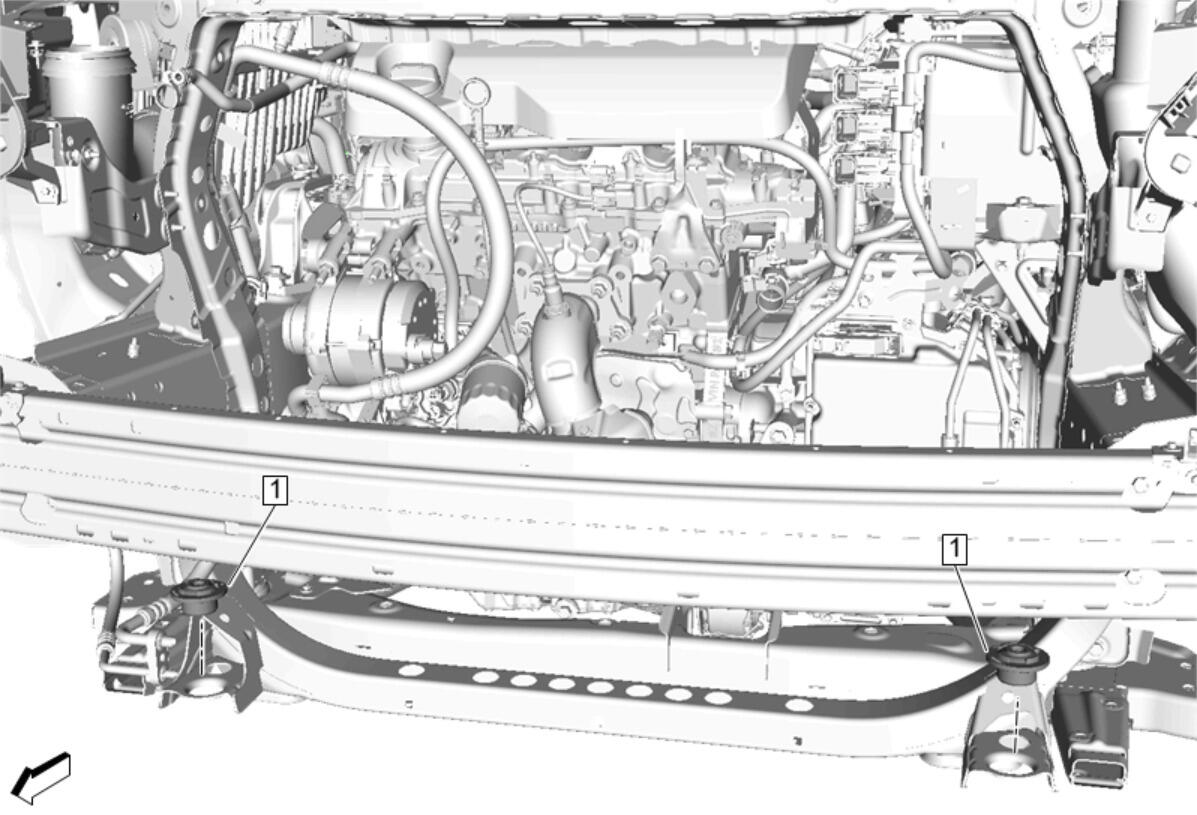

GM4747519Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radiator - Remove - Radiator Replacement
1 Radiator Lower Insulator [2x]
