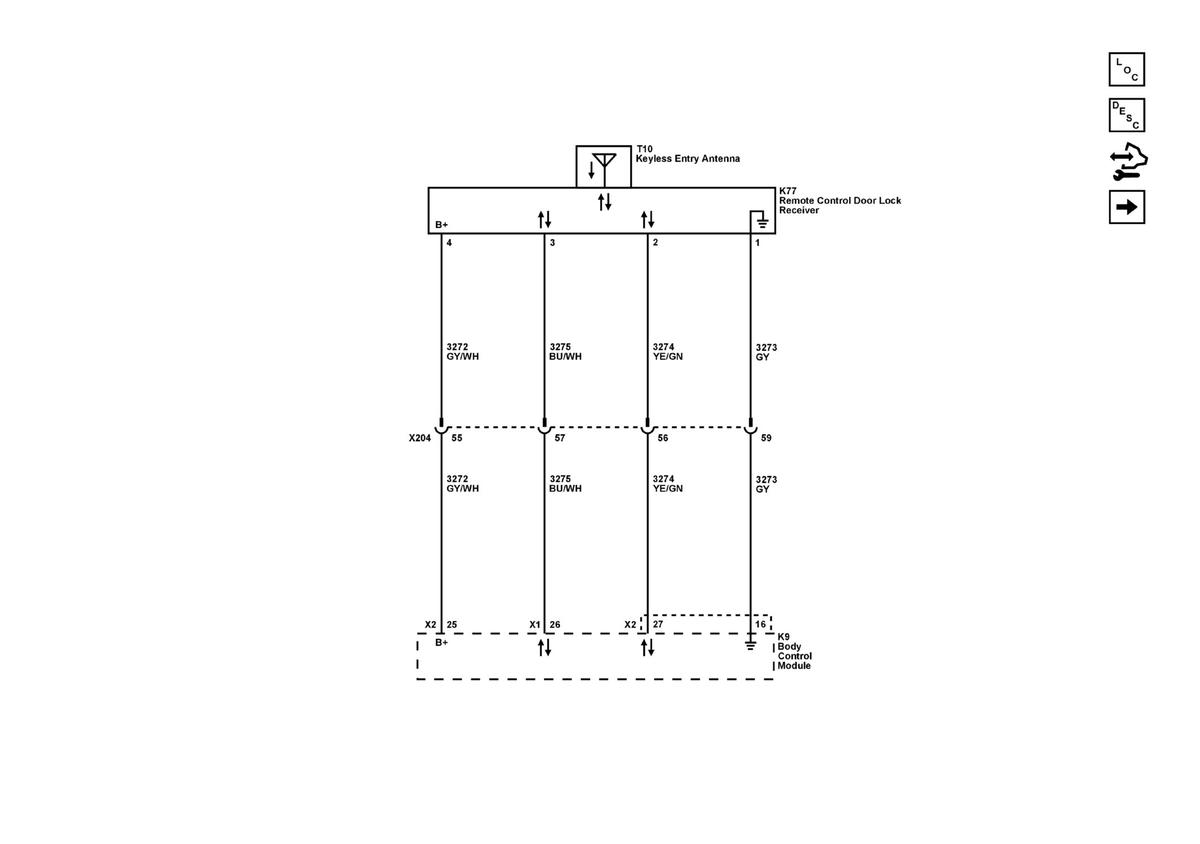

Home >> Chevrolet >> 2022 >> Trailblazer RS, FWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry
