Serial Data Gateway Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement

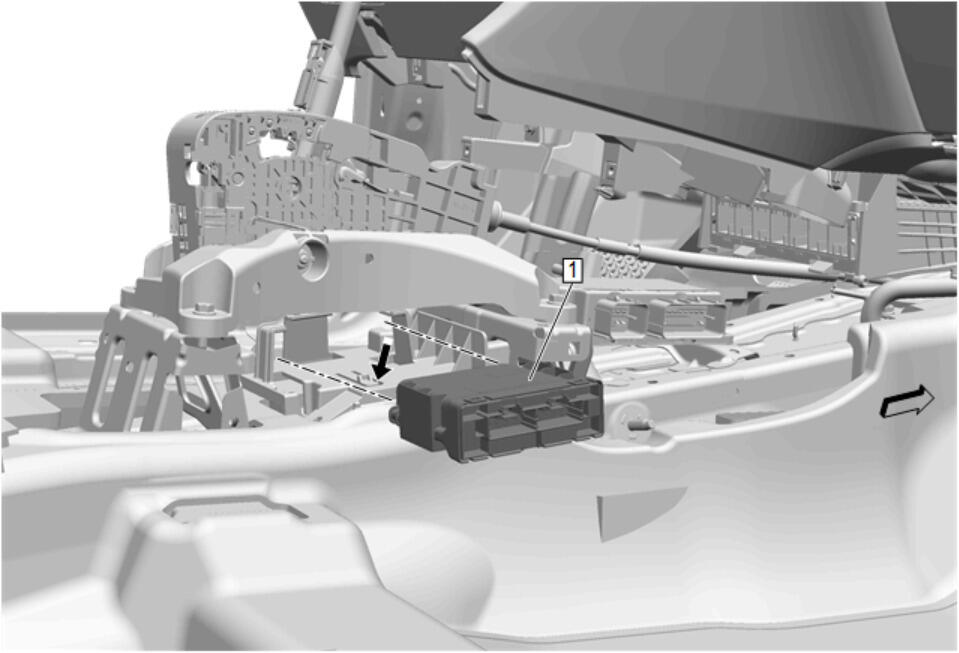

1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Push the retaining tab to remove the module. Perform the necessary programming and setup procedure: K56 Serial Data Gateway Module: Programming and Setup

Callout

Component Name

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Push the retaining tab to remove the module.
Perform the necessary programming and setup procedure: K56 Serial Data Gateway Module: Programming and Setup
