Installation Procedure

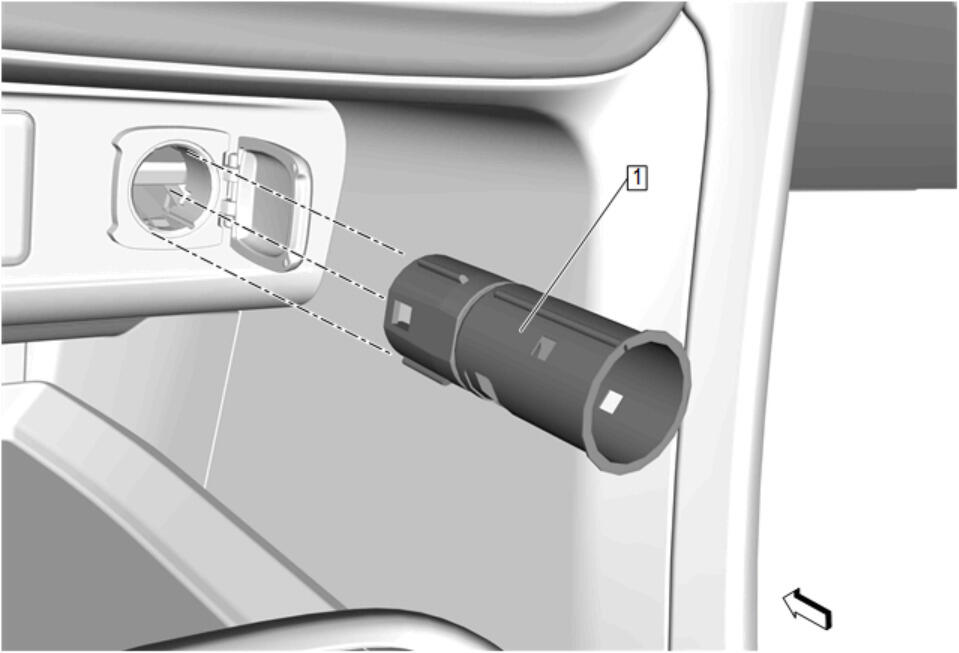

  1. GM5170279Courtesy of GENERAL MOTORS COMPANY

    Route the connector through the accessory power receptacle retainer. Align the retainer to the slot in the opening.

  2. Install the retainer by pressing into place until fully seated.
  3. Connect the electrical connector to the accessory power receptacle (1).
  4. Align the tabs on the receptacle (1) to the slots in the retainer. Install the accessory power receptacle by pressing into place until fully seated.
  5. Install the auxiliary power outlet fuse.
