Installation Procedure

WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Install the turn signal bulb (2) straight into the headlamp socket (1).

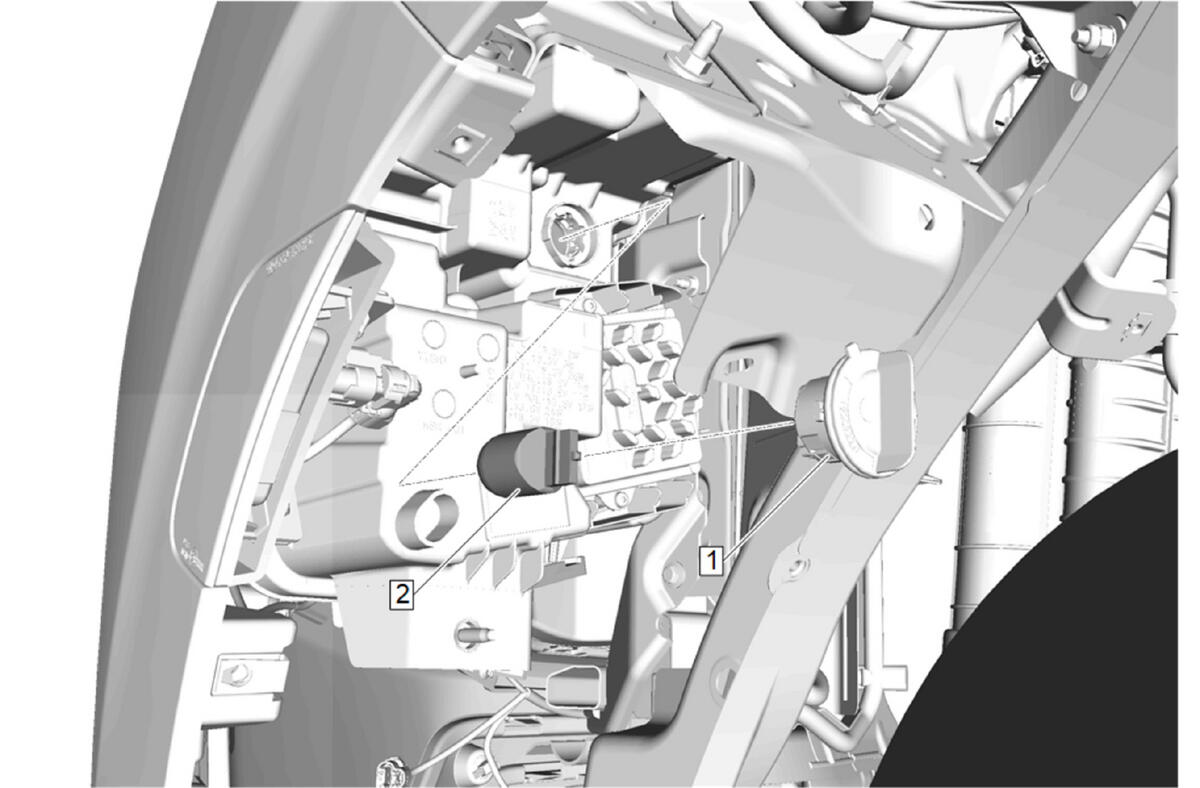

Headlamp Socket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rotate the headlamp socket (1) a quarter turn clockwise to engage.

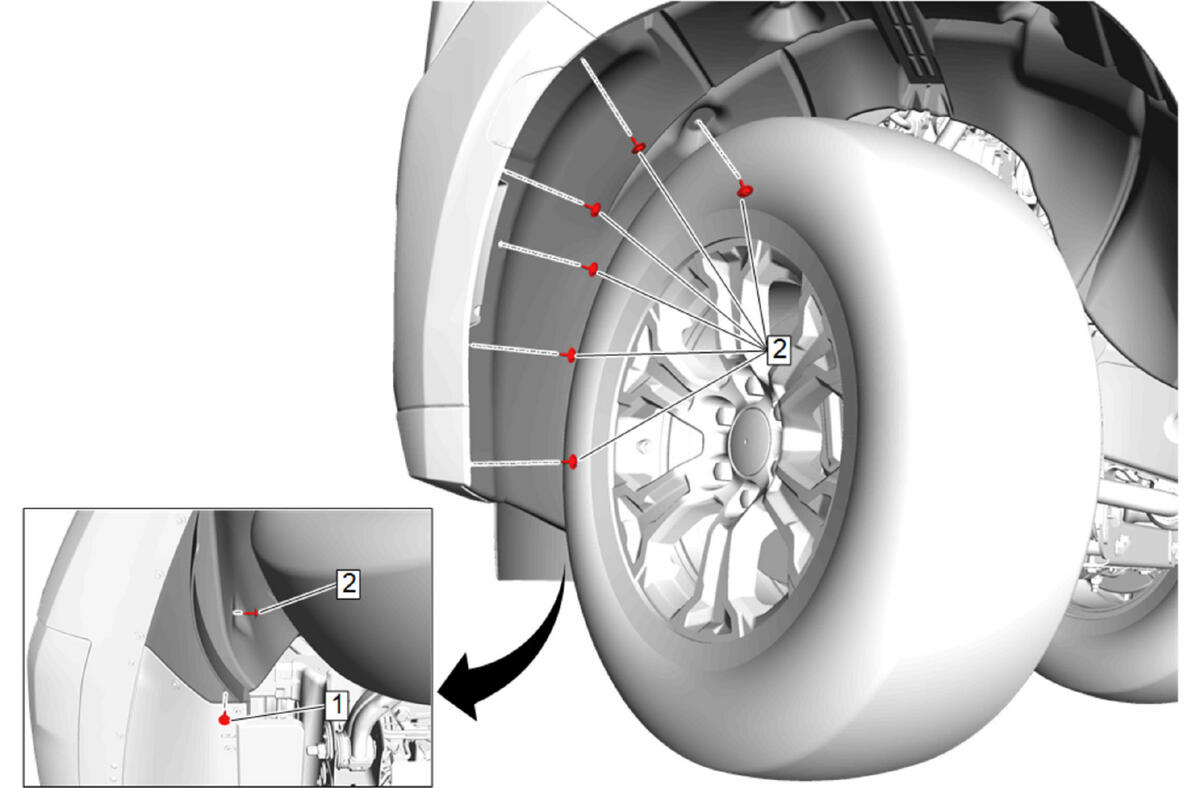

Front Wheelhouse Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

{ If equipped }Front Bumper Fascia Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Wheelhouse Liner Bolt (2) - Install and tighten [7x] - Fastener Specifications

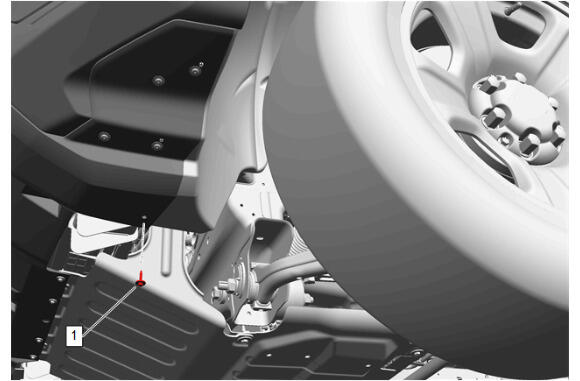

{ If equipped }Front Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications
