Installation Procedure

WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

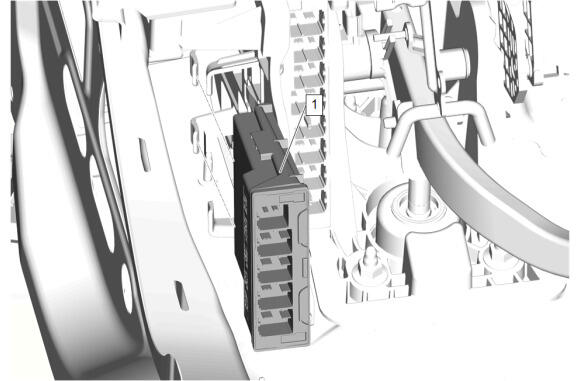

Lighting Control Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

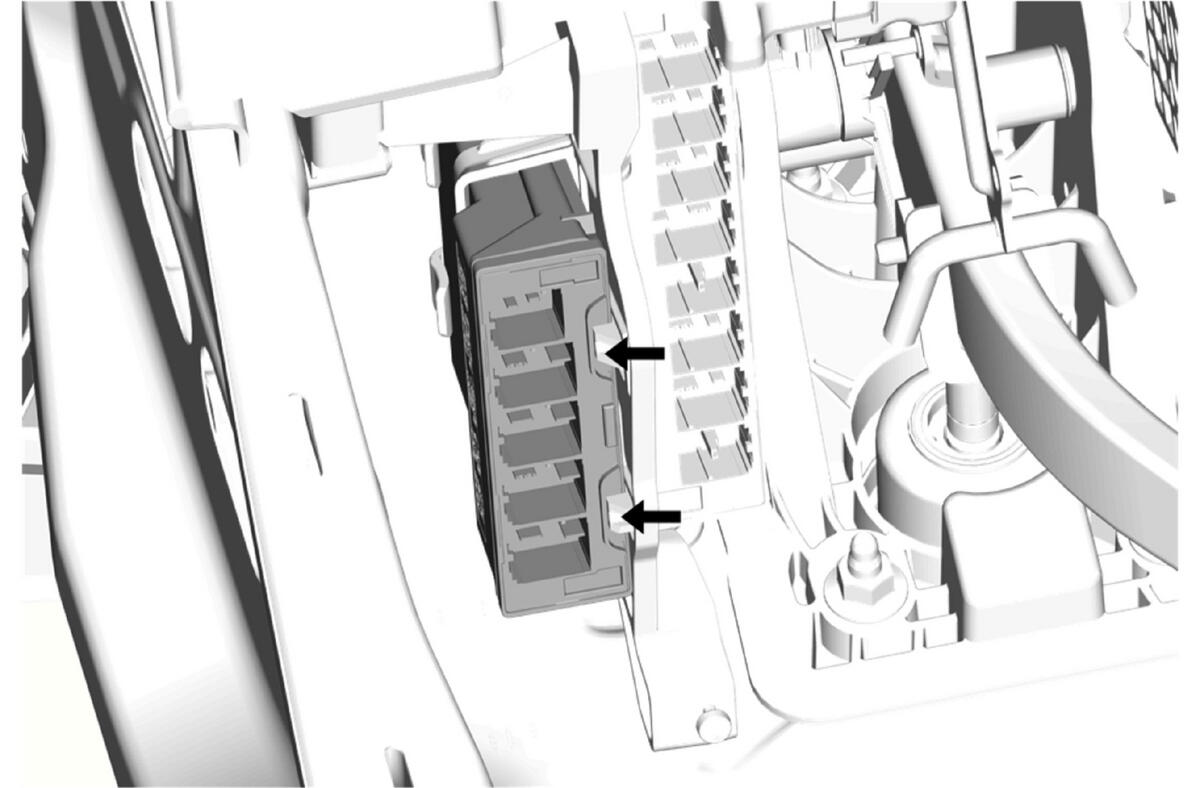

Ensure the retaining tabs have fully secured.
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Insulator Retainer (1) - Install [2x]
Perform the necessary programming and setup procedure:Control Module References
