Installation Procedure
WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

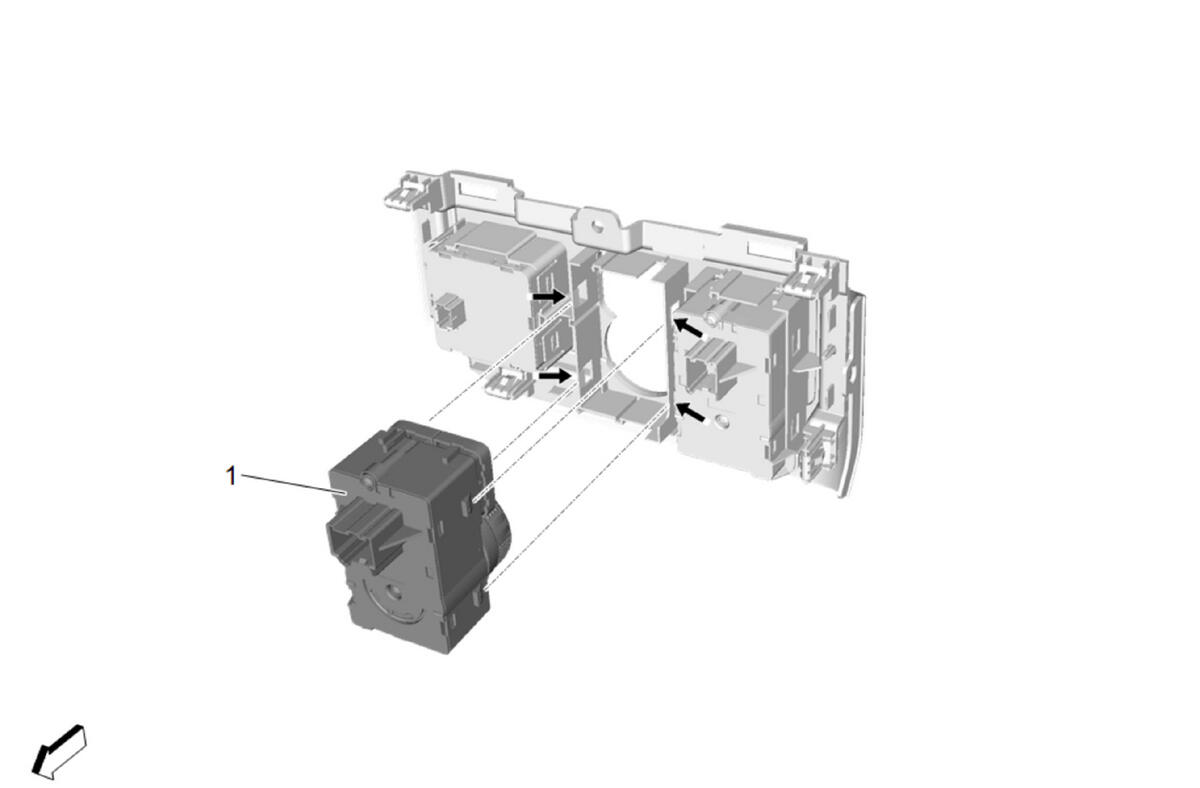

Headlamp Switch (1) - Install
- Ensure the retaining tabs have fully secured.
Connect the electrical connectors.
- Instrument Panel Switch Trim Plate (2) - Install
- Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connectors.
- Instrument Panel Trim Pad (2) - Install
- Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Trim Plate Applique (1) - Install
Instrument Panel Fuse Block Access Hole Cover (1) - Install
Instrument Panel Lower Trim Panel Outer Filler (1) - Install
CAUTION:
Refer to Fastener Caution .
