Installation Procedure
WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

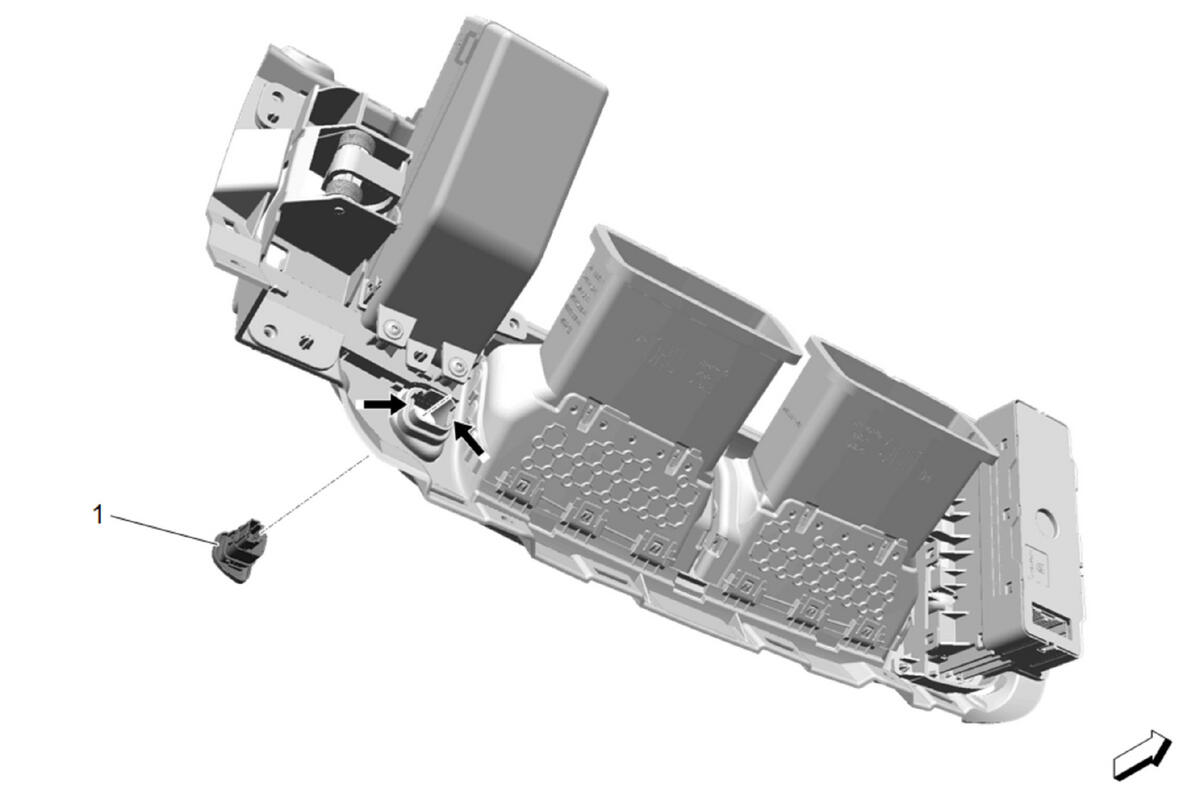

Hazard Warning Switch (1) - Install
- Ensure the retaining tabs have fully secured.
Connect the electrical connectors.
- Instrument Panel Transmission Shift Opening Cover (2) - Install
- Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
Connect the electrical connector.
- Instrument Panel Trim Pad (2) - Install
- Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
Instrument Panel Center Trim Plate Applique (1) - Install
Instrument Panel Trim Plate Applique (1) - Install
Instrument Panel Fuse Block Access Hole Cover (1) - Install
CAUTION:
Refer to Fastener Caution .
