Installation Procedure
WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
Connect all electrical connectors.
- Secure the wiring harness retaining tab.

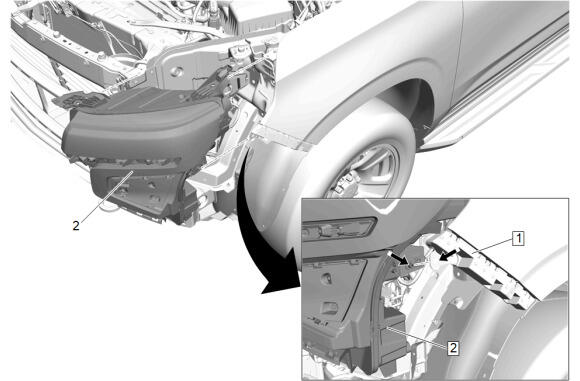

- Secure the front headlamp guide pin to the front bumper fascia guide (1).
- Front Headlamp (2) - Install
- CAUTION:
Refer to Fastener Caution .

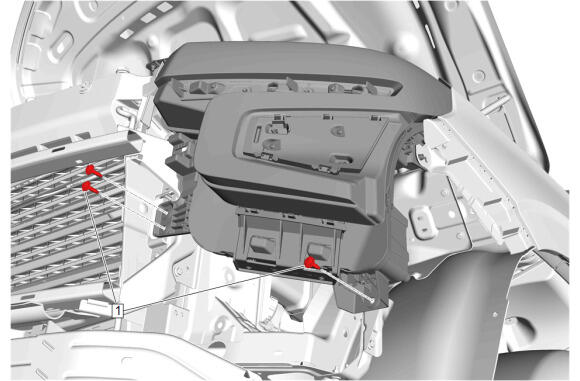

Headlamp Bolt (1) - Install and tighten [3x] - Fastener Specifications

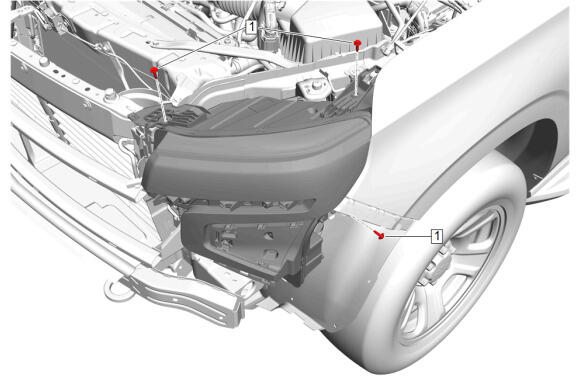

Headlamp Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (with RC1) , or Front Bumper Fascia Removal and Installation (with WTX)
- After installation, aim the front headlamps. Front Headlamp Aiming (without Horizontal Adjustment) , or Front Headlamp Aiming (with Horizontal Adjustment)
