Installation Procedure

WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

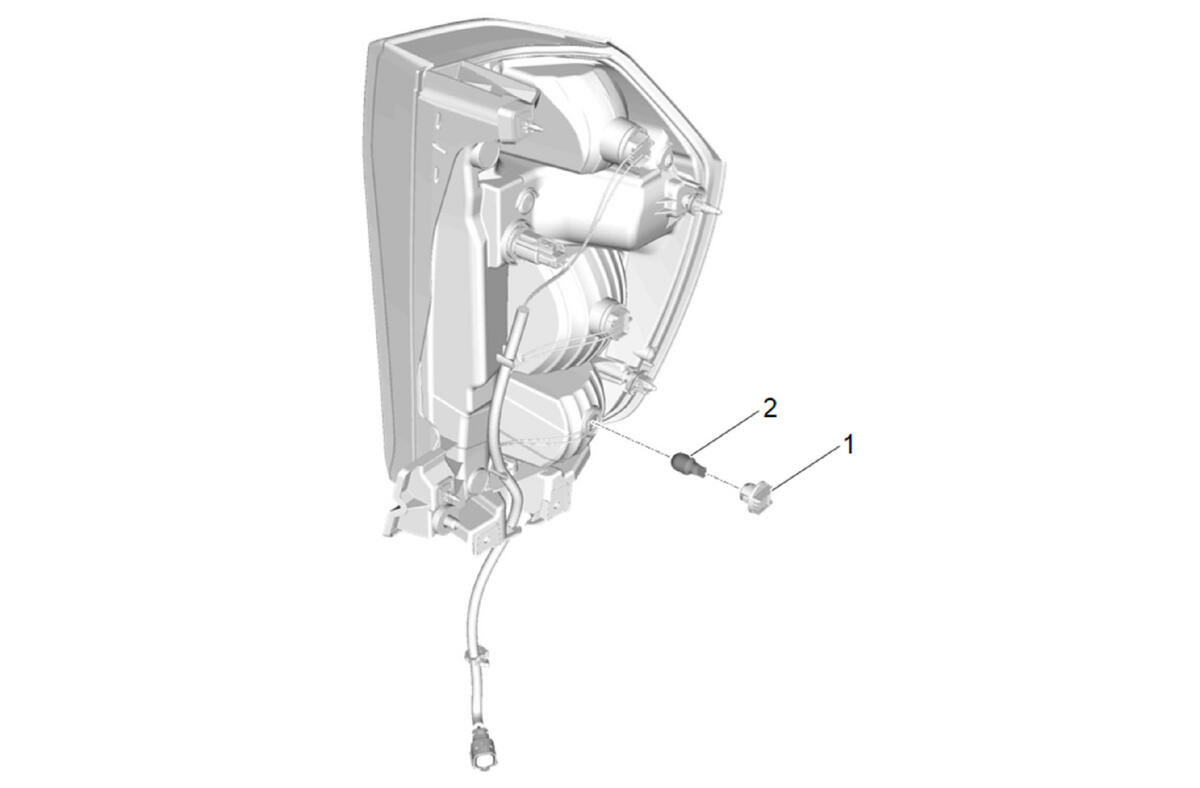

Install the backup bulb (2) straight into the backup bulb socket (1).
Backup Bulb Socket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

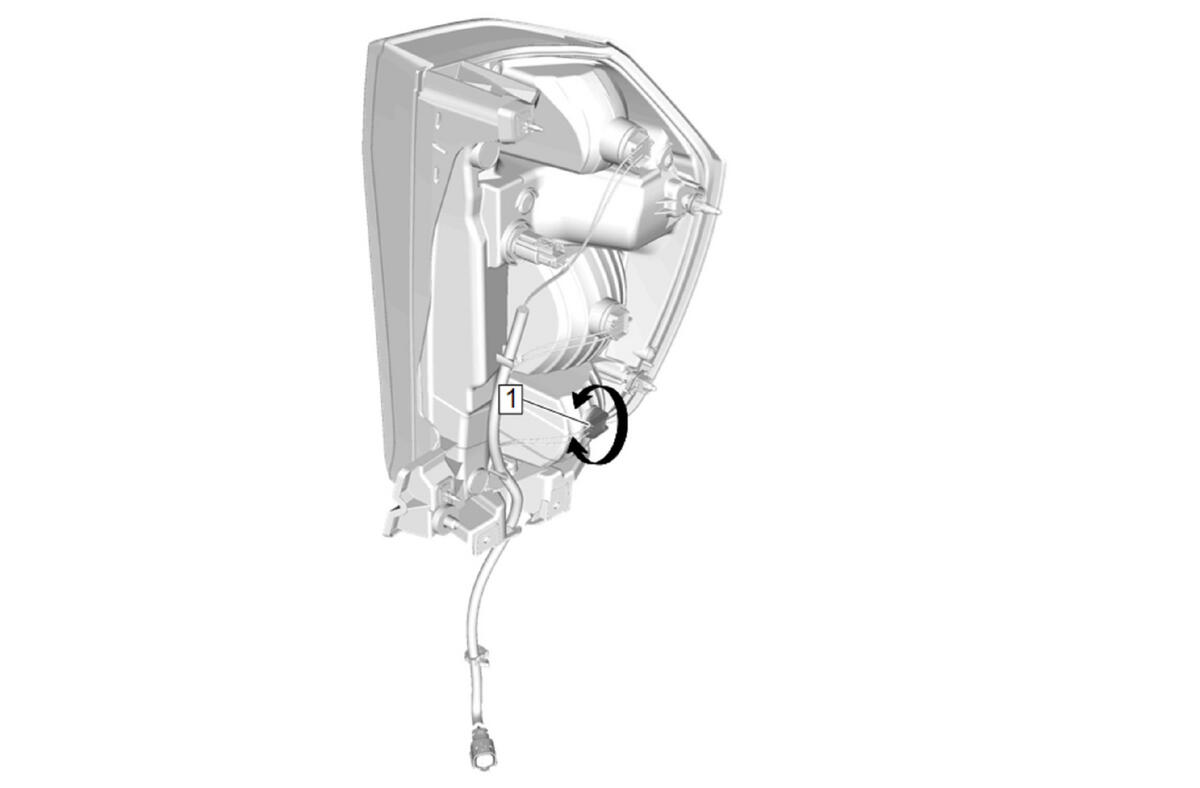

Rotate the backup bulb socket (1) a quarter turn clockwise to engage.
Courtesy of GENERAL MOTORS COMPANY

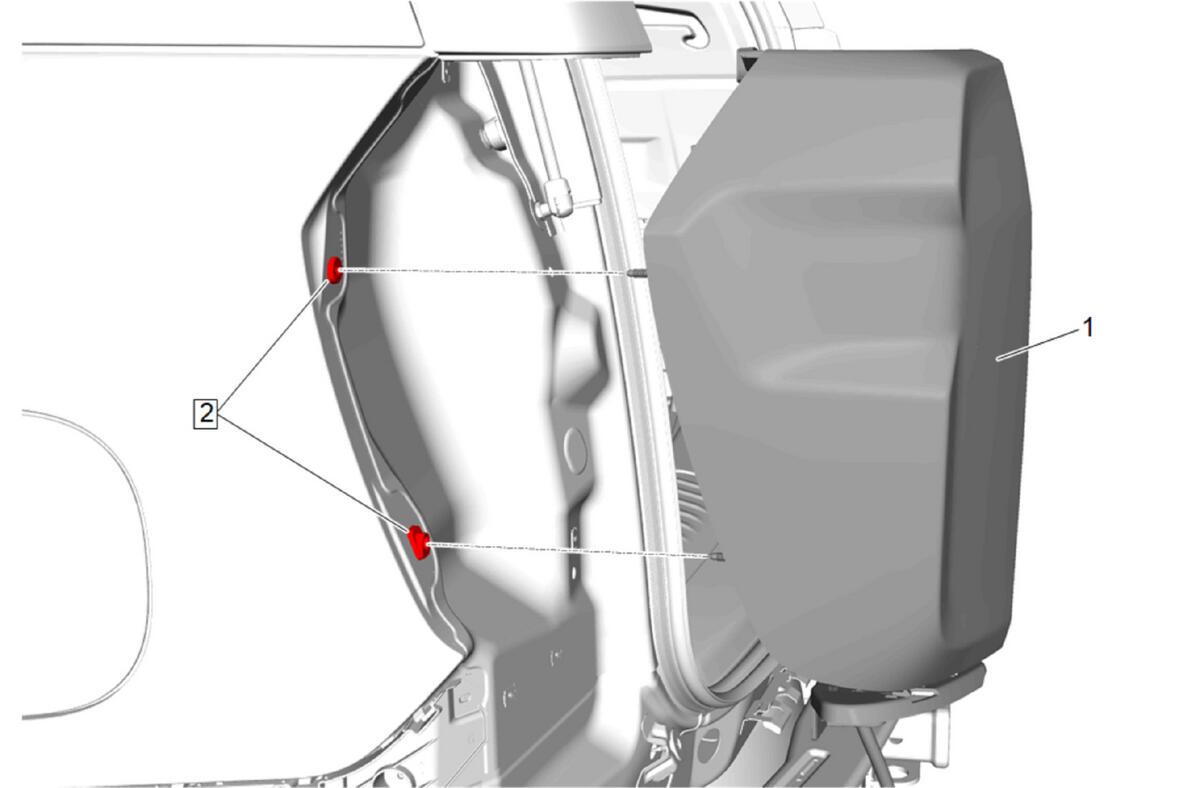

Ensure the rear body structure lamp (1) is properly aligned with the tail lamp retainers (2).
Courtesy of GENERAL MOTORS COMPANY

Rear Body Structure Stop Lamp (2) - Install

CAUTION:

Refer to Fastener Caution .

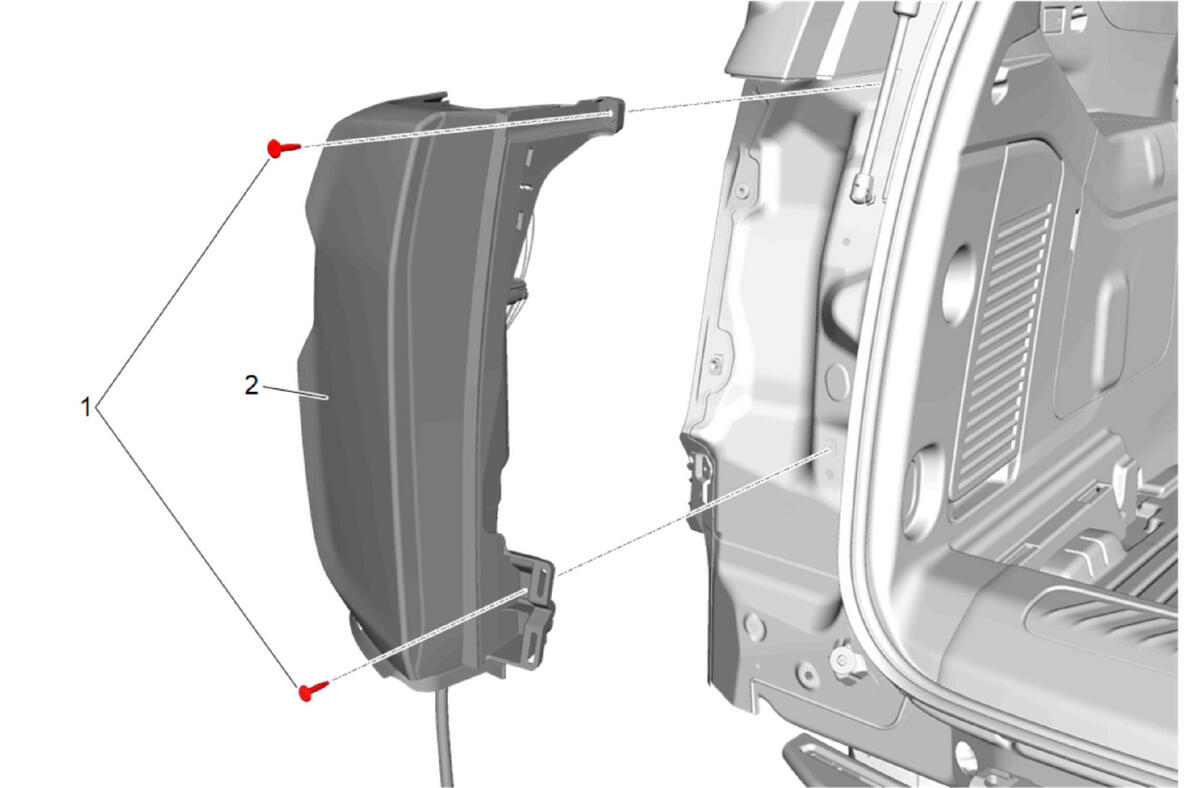

Rear Body Structure Stop Lamp Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

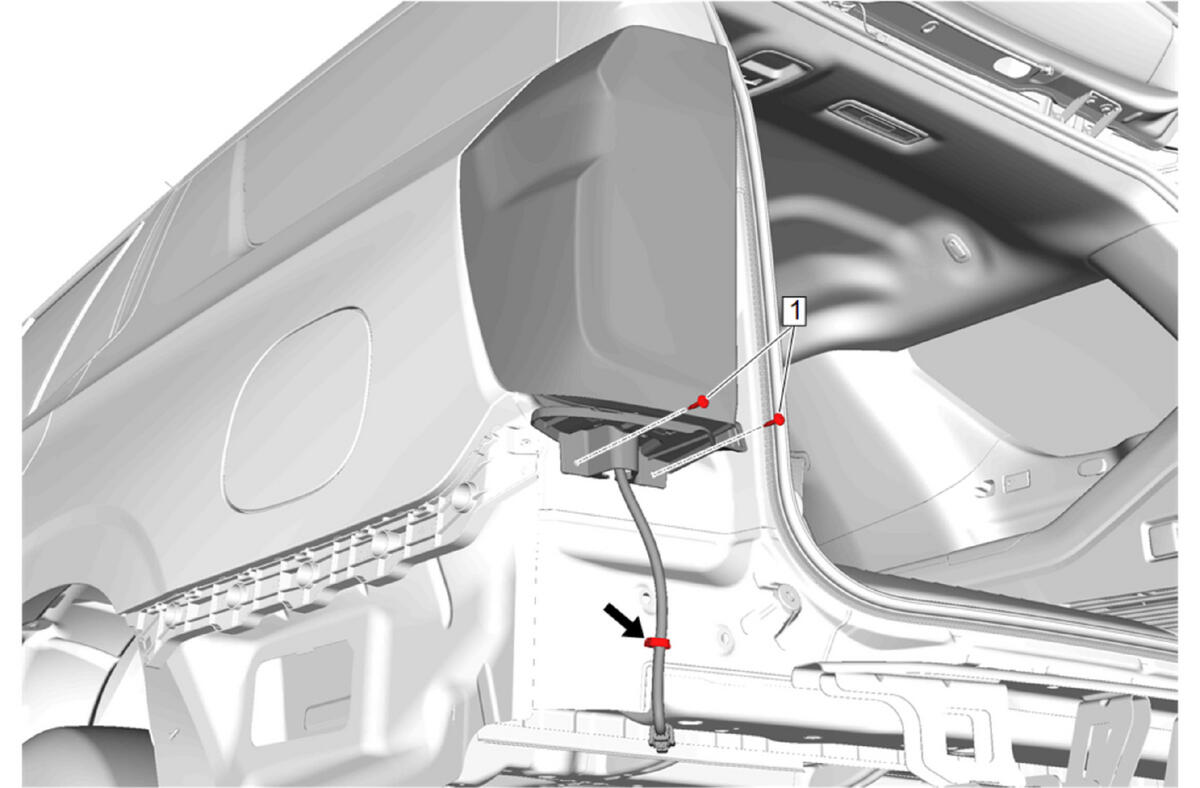

Secure the retaining tab.
Connect the electrical connector.
Rear Body Structure Stop Lamp Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

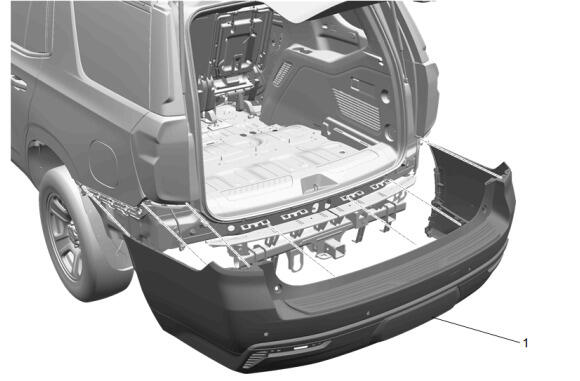

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Component removed for graphic clarity.

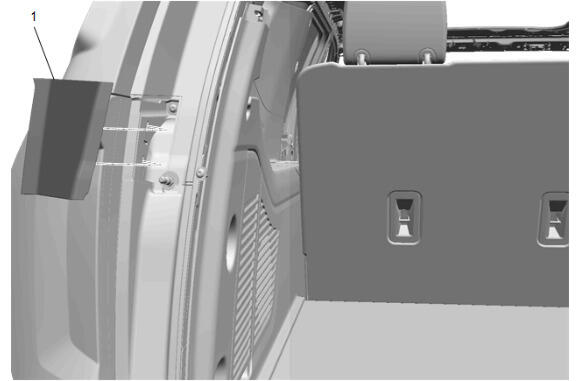

Back Body Opening Side Lower Gutter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Component removed for graphic clarity.

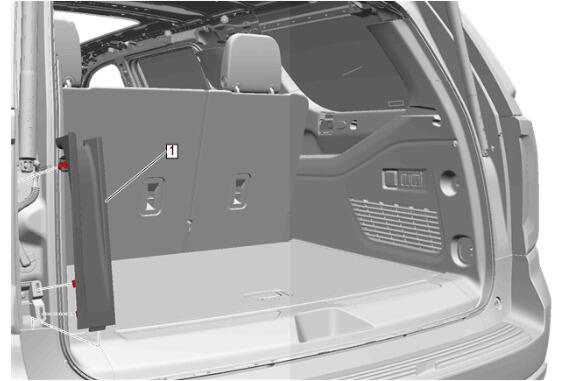

Back Body Opening Side Center Gutter - Install
Close the rear compartment lid.
