Installation Procedure

WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

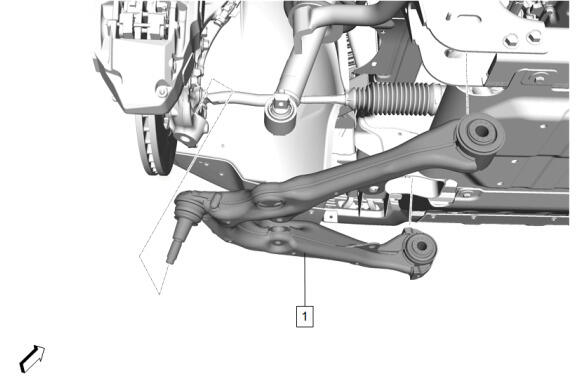

Front Lower Control Arm (1) - Install
Courtesy of GENERAL MOTORS COMPANY

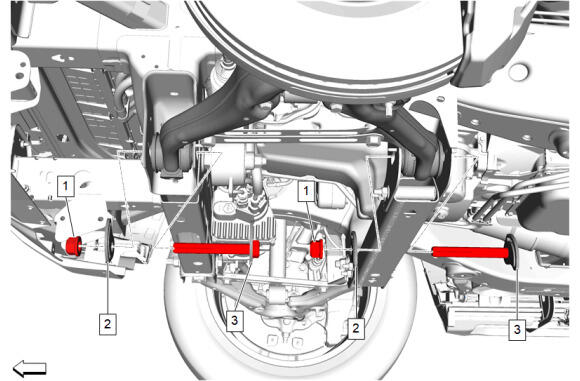

Front Lower Control Arm Adjust Bolt (3) - Install [2x]
Front Lower Control Arm Adjust Cam (2) - Install [2x]
Align the marks made on the front lower control arm adjust cams (2) and the front lower control arm adjust bolts (3) to the frame pins.

NOTE:

The final torque on the lower upper control arm nut (1) is to be applied during the front camber adjustment procedure.

Front Lower Control Arm Nut (1) - Install and hand tighten [2x]
Support the steering knuckle with a suitable jack stand.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

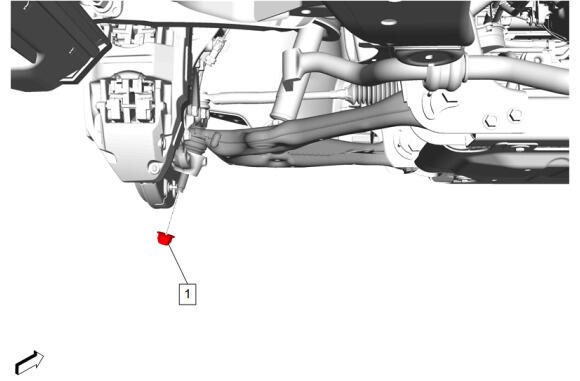

Front Lower Control Arm Ball Stud Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

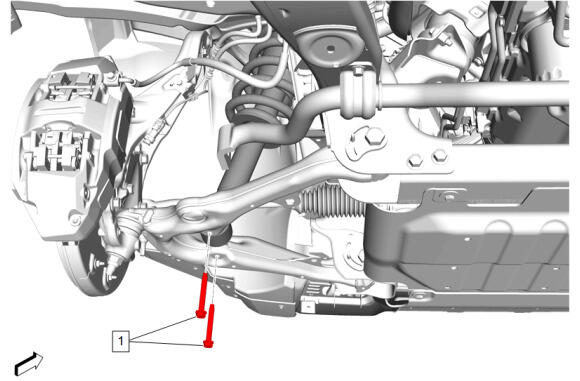

Front Shock Absorber Bolt (1) - Install [2x] - Fastener Specifications
Remove the jack stand supporting the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Support the front stabilizer shaft.

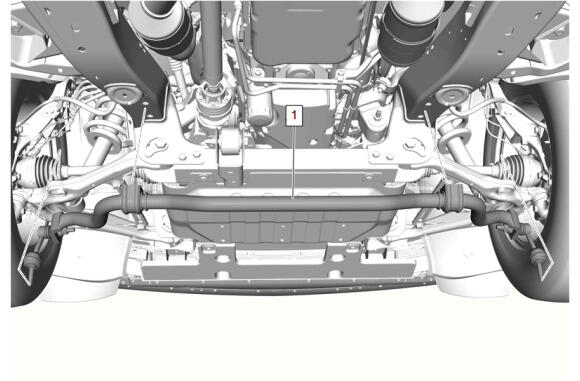

Install the front stabilizer shaft links and the front stabilizer shaft (1).
Courtesy of GENERAL MOTORS COMPANY

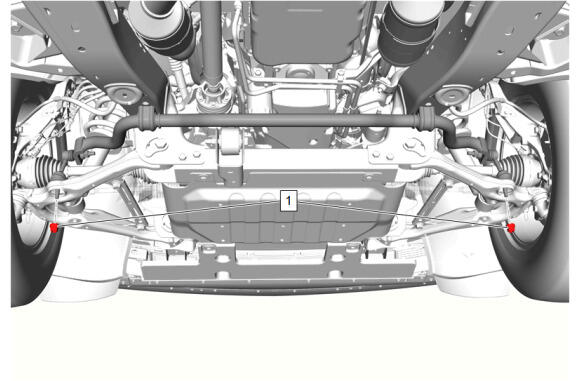

Front Stabilizer Shaft Link Nut- Lower (1) @Front Stabilizer Shaft - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The front stabilizer shaft insulator slit faces rearward.

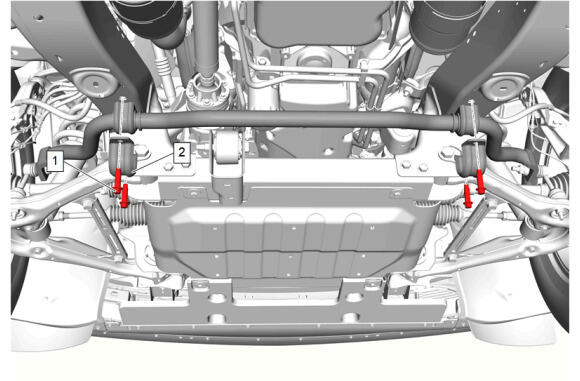

Front Stabilizer Shaft Clamp (2) - Install [2x]
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Stabilizer Shaft Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Lower Control Arm Brace (1) - Install
Front Lower Control Arm Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The proper position of the underbody skid shield is between the underbody splash shield and the front frame.

{With RC1} Install the underbody skid shield:
1. Underbody Skid Shield (3) - Install
2. Underbody Splash Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications
3. Underbody Skid Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{Without RC1} Install the underbody skid shield:
1. Underbody Skid Shield (2) - Install
2. Underbody Skid Shield Bolt (1) - Install and tighten [4x] - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
Measure and adjust the wheel alignment. Front Caster and Camber Adjustment
